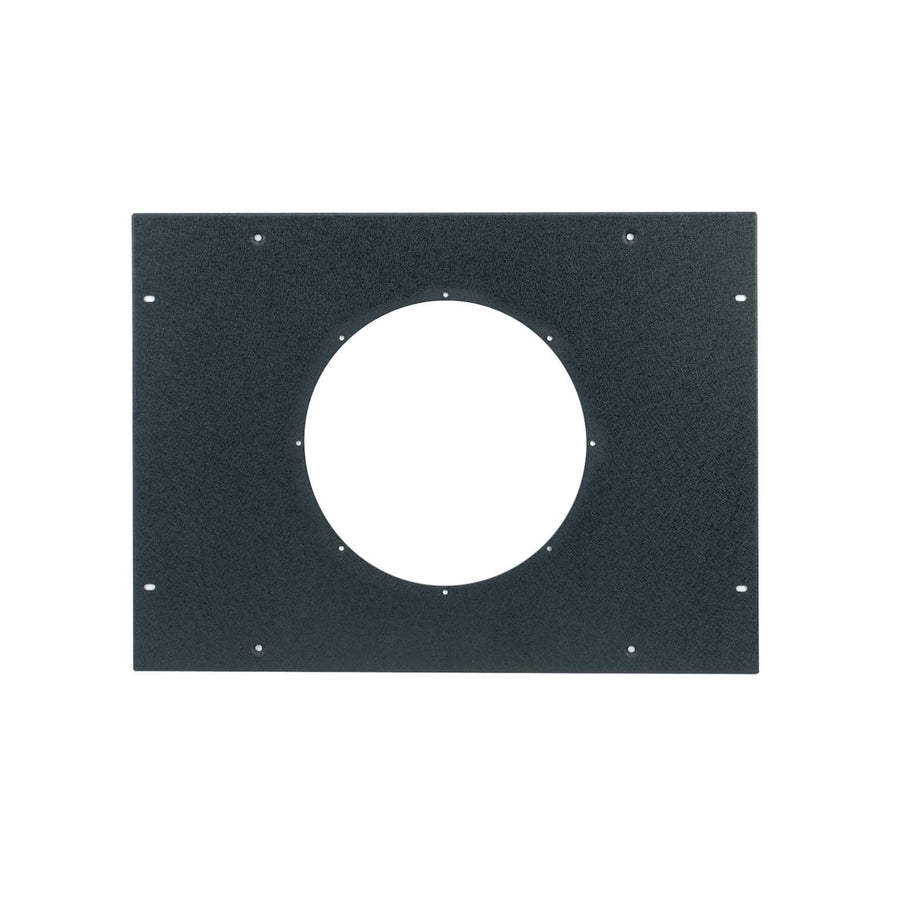

Fan Top Accepts One 10 Inch Fan ERK Series
Active thermal management top panel accepts one 10 in (25.4 cm) fan for ERK series racks
The ERK-10FT is a steel construction fan top panel designed for active thermal management within professional enclosures. This component is intended to house one 10 in (25.4 cm) fan to facilitate airflow and temperature control. It is specifically designed to fit into WMRK, ERK, ERK-KD (for 35 space and higher), and SCRK racks. The panel features a 0.5 in (1.3 cm) depth and has a footprint of 14.38 in (36.5 cm) in height and 19.75 in (50.2 cm) in width. This unit is an active component, meaning it is built to accommodate a fan, though this specific SKU does not include a built-in controller. For automated thermal management, this panel can be used in conjunction with the FC-4-1CA Thermostatic Fan Controller, 4 fans.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 0.5 in (1.3 cm) |
| Fan Size | 10 in (25.4 cm) |
| Height | 14.38 in (36.5 cm) |
| Width | 19.75 in (50.2 cm) |
| Component Type | Active |
| Controlled | No |
| UPC | 656747006135 |
| Certifications | UL Listed |
Resources
You'll need these with it
Questions about this part
What fan do I need for the ERK-10FT?
This panel is designed to accept one 10 in (25.4 cm) fan, such as the BMF-FAN10 115V 10 Inch 825 CFM fan.
Can I control the fan speed automatically?
Yes, you can use the FC-4-1CA Thermostatic Fan Controller, 4 fans to manage fan operation within your enclosure.
Which Middle Atlantic rack series is this compatible with?
The ERK-10FT fits WMRK, ERK, ERK-KD (models with 35 space and higher), and SCRK racks.
Does this panel include a thermostat?
No, this SKU is the fan top panel itself and does not include a controller; the FC-4-1CA must be purchased separately if automation is required.
What is the physical size of the panel?
The panel measures 14.38 in (36.5 cm) in height, 19.75 in (50.2 cm) in width, and 0.5 in (1.3 cm) in depth.
