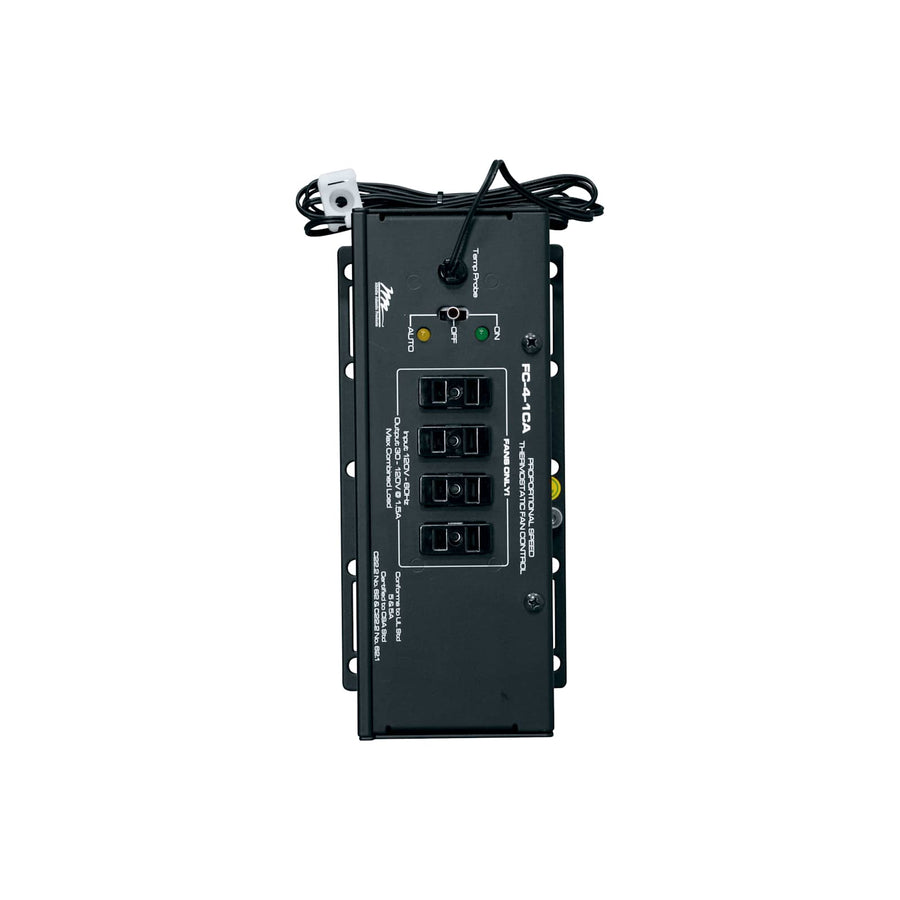

Thermostatic Fan Controller, 4 fans
Thermostatic fan controller for up to 4 fans, featuring proportional speed control and 120 VAC NEMA 1-15R outlets
The Middle Atlantic FC-4-1CA is a thermostatic fan controller designed to manage thermal loads by varying fan speeds based on enclosure temperature. This active component uses proportional speed control to extend the service life of both the fans and the equipment they protect. It features three user-selectable temperature ranges and includes a temperature probe with a 5 ft. wire to monitor ambient conditions. The unit is equipped with four controlled NEMA 1-15R outlets to power fans. For installation, the device can be mounted to any flat surface or attached directly to rackrail brackets. This controller is designed for use with Middle Atlantic AC fans or other fans that meet similar technical specifications. The maximum fan load is 1.5 Amps at 120 volts. The device is UL Listed for safety compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 2.68 in (6.8 cm) |
| Height | 8.45 in (21.5 cm) |
| Shipping Weight | 3.9 lbs (1.8 kg) |
| Volts AC | 120 VAC |
| Width | 4 in (10.2 cm) |
| Component Type | Active |
| Number of Controlled Fans | 4 |
| Receptacle Type | NEMA 1-15R |
| TAA Compliant | No |
| UPC | 656747190728 |
| Certifications | UL Listed |
Resources
You'll need these with it
PN10F11FW Eclipse™ PN10 Flat Elbow Fitting in Fog White
PN10F11FW$3.33
PN10F06FW Eclipse™ PN10 Cover Clip Fitting in Fog White
PN10F06FW$4.94
PN10F17FW Eclipse™ PN10 Internal Elbow Fitting in Fog White
PN10F17FW$3.09
PN10F15WH Eclipse™ PN10 Tee Fitting in White
PN10F15WH$4.70
PN10F18FW Eclipse™ PN10 External Elbow Fitting in Fog White
PN10F18FW$3.49
PN10F15FW Eclipse™ PN10 Tee Fitting in Fog White
PN10F15FW$4.70
PN10F11V Eclipse™ PN10 Flat Elbow Fitting in Ivory
PN10F11V$3.09
PN10F18WH Eclipse™ PN10 External Elbow Fitting in White
PN10F18WH$3.49
PN10F11WH Eclipse™ PN10 Flat Elbow Fitting in White
PN10F11WH$3.09
PN10L08WH Eclipse™ PN10 Latching Raceway Fitting in White
PN10L08WH$5.40
Questions about this part
Will the FC-4-1CA work with my existing fans?
It is designed specifically for Middle Atlantic AC fans or other fans with similar specifications. The maximum fan load is 1.5 Amps at 120 volts.
How do I mount this controller in a rack?
The unit can be mounted to any flat surface or installed using rackrail brackets.
What are the electrical requirements for the FC-4-1CA?
This controller requires a 120 VAC power source and features four NEMA 1-15R receptacle types.
Can I adjust the temperature settings?
Yes, the controller features three user-selectable temperature ranges to suit your specific thermal requirements.
Which document do I need for installation?
For detailed installation and setup, refer to the FC-4-1CA Thermostatic Fan Controller Instruction Sheet (PDF).
