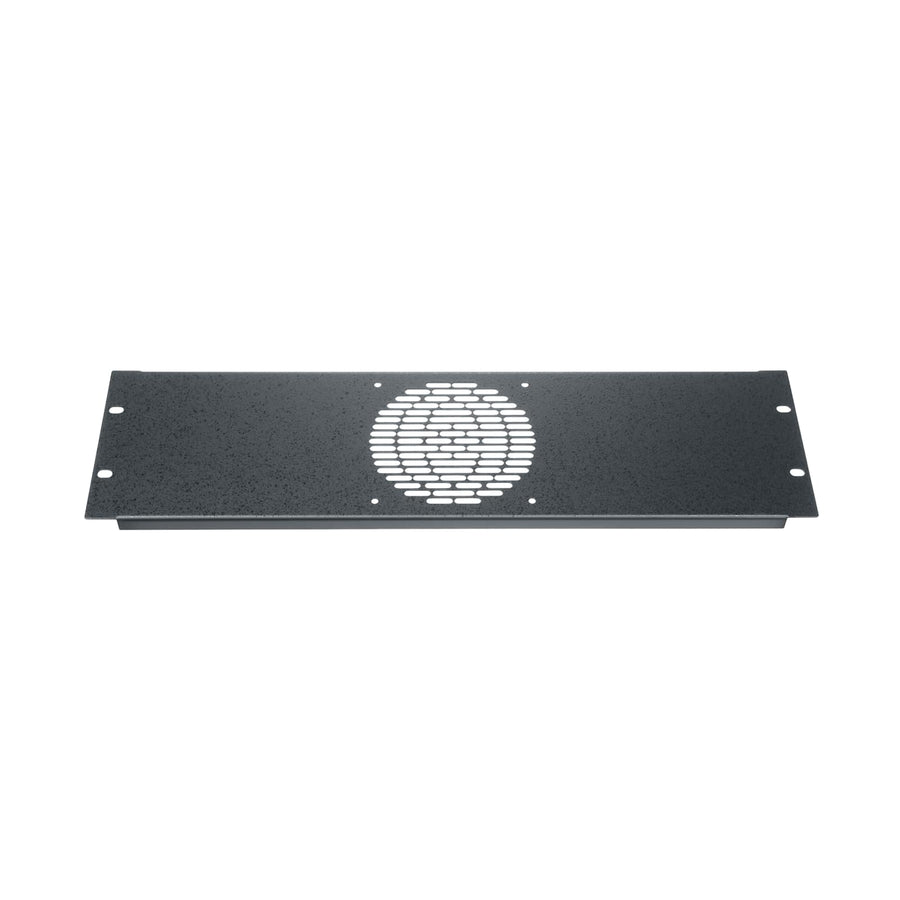

Fan panel, 1 Fan Textured
Active thermal management fan panel for one 4-1/2" fan, occupying 3U of rack space with a textured black finish
The Middle Atlantic TFP1 is a 3U (5.25") fan panel designed to provide active thermal management within a standard 19-inch rack. This component is constructed from 16-gauge flanged aluminum and features a textured black powder coat finish to match standard rack equipment. It is engineered to accommodate a single 4-1/2" fan, allowing installers to direct airflow to heat-sensitive equipment. This TAA compliant panel is part of a series of fan panels offering different configurations. For installation, this unit requires a 4-1/2" fan, such as the MAFAN 115V model or the QFAN 115V model, depending on the specific CFM requirements of the deployment. The panel itself has a depth of 0.52 in (1.3 cm) and a height of 5.25 in (13.3 cm).
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Depth | 0.52 in (1.3 cm) |
| Height | 5.25 in (13.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Shipping Weight | 1.77 lbs (0.8 kg) |
| Width | 19 in (48.3 cm) |
| Component Type | Active |
| Finish | Textured Black Powder Coat |
| Number of Fan Openings | 1 |
| UPC | 656747022333 |
You'll need these with it
Questions about this part
What size fan is required for the TFP1?
The TFP1 is designed to hold one 4-1/2" fan. You can use various models such as the MAFAN 115V 95 CFM fan or the QFAN 115V 50 CFM fan.
Does this panel require additional fans to operate?
Yes, the TFP1 is a fan panel frame and does not include the fan itself. You must purchase a 4-1/2" fan separately, such as the QFAN-119 for 230V applications.
How much rack space does the TFP1 occupy?
This panel takes up 3 rackspaces, providing a total height of 5.25 in (13.3 cm) in a standard 19-inch rack.
Is the TFP1 TAA compliant?
Yes, the TFP1 is TAA compliant, meeting requirements for specific procurement regulations.
What is the construction material of this panel?
The panel is made from 16-gauge flanged aluminum with a textured black powder coat finish.
