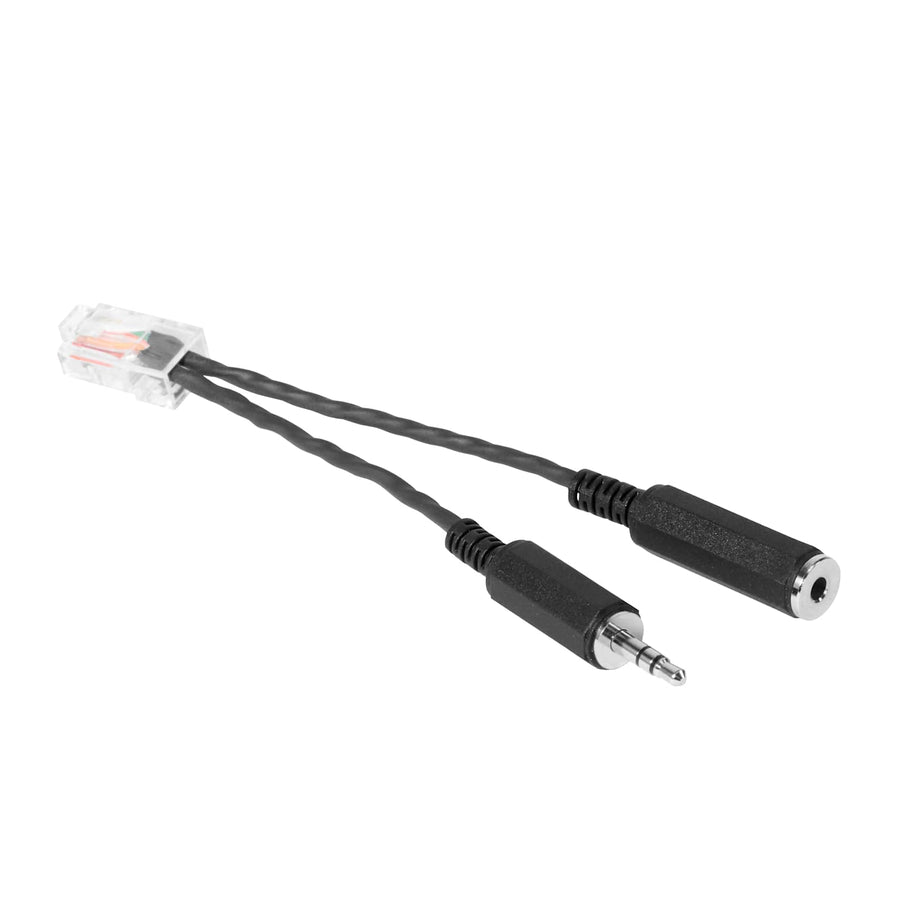

EasyMic Adapter
Audio adapter that adds a 3.5mm stereo line-in to Vaddio HuddleSHOT, ConferenceSHOT AV, and EasyIP Decoder systems
The Vaddio 802-3280 EasyMic Adapter is designed to bring external audio sources into your conference room setup. By connecting the RJ-45 end of this adapter into the EasyMic port on the back of a HuddleSHOT, ConferenceSHOT AV, or EasyIP Decoder, you create a dedicated 3.5mm stereo line-in. This allows integrators to utilize the built-in speakers of the HuddleSHOT or ConferenceSHOT AV with a display, even when the system is not actively in a USB videoconference call. The adapter features a 3.5mm male end that is mono balanced differential with a 0dBu reference line level, and a 3.5mm female end that is a stereo single ended with a -10dBu reference line level. Please note that using this adapter occupies the EasyMic port, which prevents the connection of an EasyMic microphone like a TableMIC or CeilingMIC to the HuddleSHOT; however, the two internal microphones near the camera lens remain functional.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Audio Type | Microphone |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 840077505936 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
You'll need these with it
EasyIP Decoder
999-60210-000$900.90
ConferenceSHOT AV HD Conference Room System
999-9995-000B$2,190.60
HuddleSHOT All-in-One Conferencing Camera
999-50707-000Discontinued
Questions about this part
Can I still use my EasyMic microphones if I use the 802-3280 adapter?
Yes, it is compatible with HuddleSHOT, ConferenceSHOT AV, and EasyIP Decoder. However, using this adapter prevents you from connecting a TableMIC or CeilingMIC to the HuddleSHOT's EasyMic port, though the device's internal microphones will still function.
What kind of audio connection does the 802-3280 provide?
This adapter provides a 3.5mm stereo line-in via its female 1/8" end, allowing you to connect a 3.5mm stereo cable from an external audio source.
Is the Vaddio 802-3280 TAA compliant?
Yes, the 802-3280 is TAA compliant and carries CE and FCC certifications.
What is the purpose of using the EasyMic Adapter?
It allows you to use the integrated speakers in HuddleSHOT or ConferenceSHOT AV units to play audio from a display, even when the system is not in a USB videoconference session.
What is the warranty for this adapter?
The Vaddio 802-3280 comes with a 3-year warranty.
