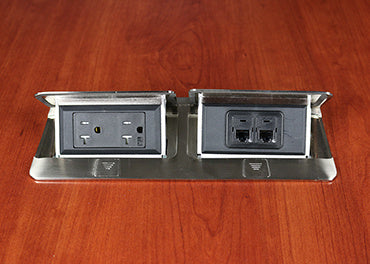

DQFP20ST-2A Cord Ended deQuorum™ Dual Flip-Up Unit in Stainless Steel
Stainless steel dual flip-up table unit with 20A duplex receptacle and 3.1A USB charging capacity
The Wiremold DQFP20ST-2A is a deQuorum™ Dual Flip-Up Unit finished in stainless steel, designed to integrate into conference, meeting, or hotel room tables with a slim, low-profile aesthetic. This unit provides two distinct functional zones. The first opening houses a 20A black tamper-resistant duplex receptacle featuring a patented shutter system to meet 2011 NEC requirements. This receptacle also includes two USB ports providing 3.1A of charging capacity for mobile devices. The second opening is versatile, accepting a Wiremold CM Series Open System 2A module, an Ortronics Series II adapter, or a TracJack adapter to support various communication outlets. This stainless steel model is TAA compliant and features a soft-opening cover mechanism for quiet, professional operation. This unit ships with a 6 ft (1.83 m) cord for connection to the power source.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Amps | 20 Amp |
| Color | Stainless Steel |
| TAA Compliant | Yes |
| USB Port | No |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Cord Length | 6 ft |
Resources
Questions about this part
What communication modules are compatible with the DQFP20ST-2A?
The second opening accepts a Wiremold CM Series Open System 2A module, an Ortronics Series II adapter, or a TracJack adapter.
Does this unit provide USB charging for mobile devices?
Yes, the duplex receptacle includes two USB ports that provide 3.1A of total charging capacity.
What is the cord length for the DQFP20ST-2A?
This unit comes equipped with a 6 ft (1.83 m) cord.
Is this table box rated for moisture or spills?
Yes, it features UL Spill Water Protection that meets and exceeds the UL1363 standard for relocatable power taps.
Which documentation is available for submittals?
Technical details can be found in the deQuorum Flip-Up Pedestal Table Box Cutsheet or the deQuorum Flip-Up Table Boxes PDF.
