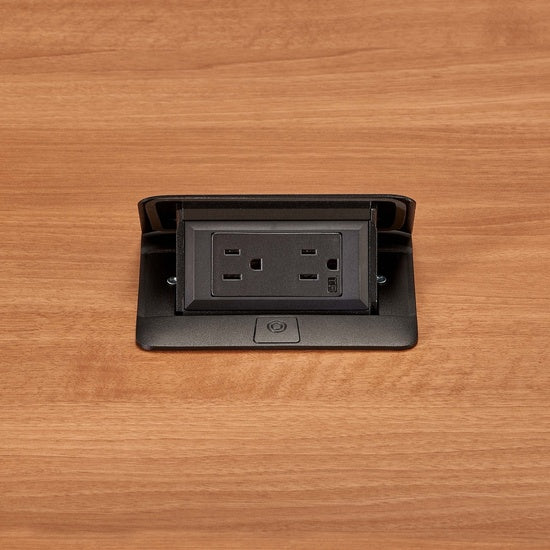

DQFF20BK Field Wired deQuorum Single-Flip Up Unit in Black
Field wired single-flip up unit in black, featuring a 6 ft cord and 20 Amp capacity for professional table integration
The Wiremold DQFF20BK is a field wired deQuorum single-flip up unit designed for seamless integration into conference rooms, meeting rooms, and office tables. This black powder coat unit features a slim, low-profile design that enhances the aesthetic of professional surfaces. It includes a 15A black tamper-resistant duplex receptacle that meets 2011 NEC requirements via a patented shutter system. This unit is equipped with a 6 ft cord for field wiring and provides a total of 3.1A through its integrated USB ports. The cover utilizes a soft opening mechanism for quiet, professional operation. This model is cULus listed, meeting both US and Canadian safety standards for multioutlet assemblies, and carries a UL 111 spill water protection rating to mitigate moisture risks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Amps | 20 Amp |
| Shipping Dimensions | 11" x 6" x 9" (279.4 x 152.4 x 228.6 mm) |
| Color | Black |
| USB Port | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Cord Length | 6 ft |
Resources
Questions about this part
What is the charging capacity for mobile devices on the DQFF20BK?
This unit provides 3.1A through its integrated USB ports to charge a wide range of mobile devices.
Does this unit meet NEC safety requirements?
Yes, the integrated 15A duplex receptacle is tamper-resistant and meets 2011 NEC requirements using a patented shutter system.
How is the DQFF20BK protected against liquid spills?
This unit features UL 111 spill water protection, which helps eliminate the risk of shock or short circuits if moisture enters the device.
What is the difference between the DQFF20BK and other deQuorum units?
The DQFF20BK is the black powder coat finish variant; the series also offers a brushed stainless steel finish option.
Which documents are available for submittals?
Installers can refer to the deQuorum Flip-Up Pedestal Table Box Cutsheet or the deQUORUM Flip-Up Table Boxes PDF for technical details.
