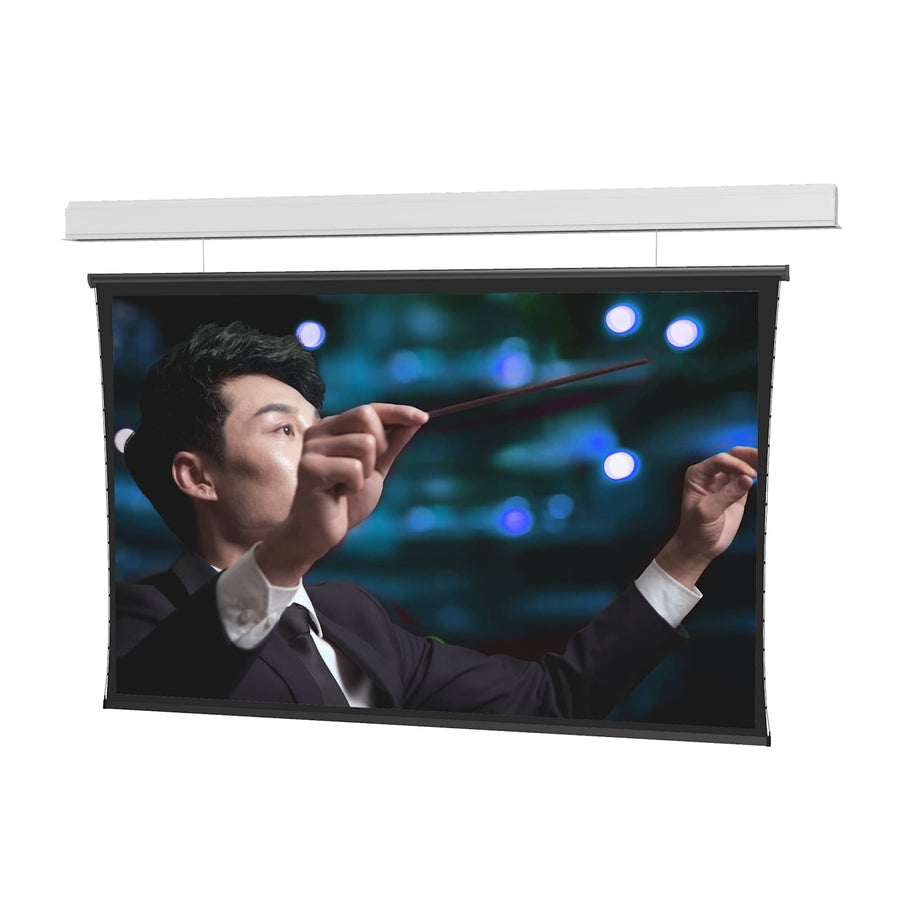

Da-Lite Wireline Advantage, 110" x 176" with HD Progressive 1.0 - 29247EG
Large venue electric projection screen, 110" x 176" (208" diagonal) with HD Progressive 1.0 surface and 220V motor
The Da-Lite 29247EG is a Wireline Advantage series electric projection screen designed for large venue applications. This 110" x 176" (208" diagonal) screen features an HD Progressive 1.0 surface and a wide 16:10 screen format for high-resolution front projection. To maintain a clean aesthetic in rooms with high ceilings, this model utilizes thin steel cables for the drop—allowing for up to 24 feet of travel to achieve the ideal viewing height. This is a flangeless case design, making it an efficient choice for ceiling recessed installations or wall mounting. For ceiling recessed applications, the unit features sliding installation brackets and built-in ceiling trim to conceal the rough opening. The TruGuide™ Electric Screen Tensioning System is integrated to ensure a smooth, seamless viewing surface. This SKU is TAA compliant and utilizes a 220V (50Hz) motor designed for export markets. Note that this product is scheduled for discontinuation on December 31, 2026; the final date to place orders is December 1, 2026.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Shipping Dimensions | 217" x 18" x 23" (551.2 x 45.7 x 58.4 cm) |
| Shipping Weight | 736 lbs (333.8 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 10
| Product Selection | Flangeless Case |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 717068450158 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Range Extender For Wireline (220V) 10
29471$238.40
Da-Lite Radio Frequency Dry Contact Interface For Wireline (220V)
29469$236.80
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (220V)
29470$340.80
Da-Lite Wireline Advantage Wall Mount Brackets
29485$612.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (220V)
10644$239.20
Questions about this part
What is the correct replacement for the Da-Lite 29247EG?
The direct replacement is the Tensioned Myriad Reveal with SightLine DL100182EL, which offers a quieter SightLine cable drop system.
What accessories are required for remote or hardwired control?
You can add a Da-Lite Radio Frequency Single Channel Wall Switch (29470) or a Dry Contact Interface (29469) for integrated control.
Is this screen suitable for ceiling recessed installation?
Yes, this model is designed for ceiling recessed use with built-in trim to hide the rough opening and includes sliding brackets for easy attachment.
What kind of surface does this screen use?
This model features the HD Progressive 1.0 surface, specifically designed for front projection in large venue environments.
Will this work with my existing 220V control system?
Yes, this SKU features a 220V (50Hz) motor for export and is compatible with the Da-Lite Radio Frequency Range Extender (29471).
