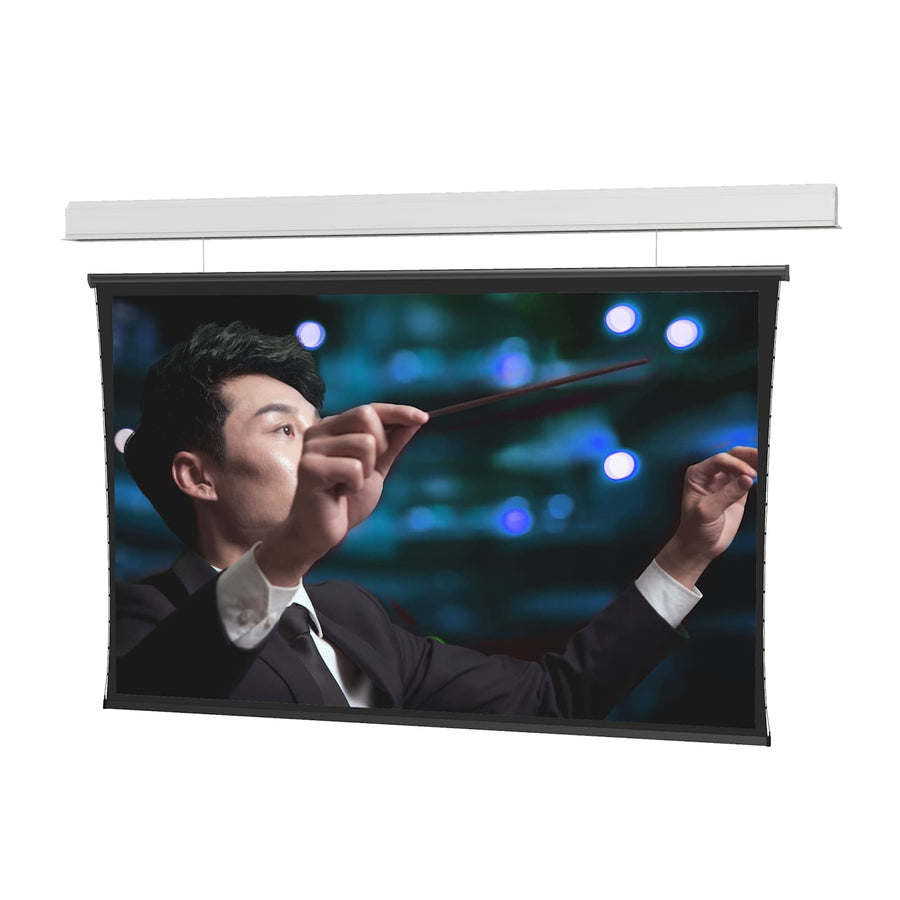

Da-Lite Wireline Advantage, 108" x 192" with HD Progressive ReView 0.9 - 29453E
108" x 192" rear projection screen with HD Progressive ReView 0.9 surface and ceiling trim flange
The Da-Lite 29453E is a large venue rear projection screen designed for high-performance visual environments. This 108" x 192" (220" diagonal) electric screen utilizes a Wireline Advantage series housing with an integrated ceiling trim flange to conceal the rough opening in ceiling recessed applications. To achieve a clean, aesthetically pleasing presentation in high-ceiling rooms, this model uses thin steel cables for the drop—allowing for up to 24 feet of cable to reach an appropriate viewing height—rather than traditional black fabric drops. The screen features an HD Progressive ReView 0.9 surface designed for high-resolution rear projection. The TruGuide™ Electric Screen Tensioning System ensures a smooth, seamless viewing surface. This unit is equipped with a 220V (50Hz) motor for export markets and is TAA compliant. Please note that this specific model is scheduled for discontinuation on December 31, 2026, with a final order date of December 1, 2026. The recommended direct replacement is the Tensioned Myriad Conceal with SightLine DL100279EL.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Shipping Dimensions | 234" x 18" x 23" (594.4 x 45.7 x 58.4 cm) |
| Shipping Weight | 792 lbs (359.3 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 10
| Product Selection | Ceiling Trim Flange |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| TAA Compliant | Yes |
| UPC | 717068448698 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Range Extender For Wireline (220V) 10
29471$238.40
Da-Lite Radio Frequency Dry Contact Interface For Wireline (220V)
29469$236.80
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (220V)
29470$340.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (220V)
10644$239.20
Questions about this part
Will this screen fit my rear projection setup?
Yes, the 29453E is specifically configured for Rear Projection using the HD Progressive ReView 0.9 surface.
What is the installation requirement for ceiling recessed mounting?
This SKU includes a ceiling trim flange, which allows you to conceal the rough opening once the unit is secured via the sliding installation brackets.
What is the maximum drop length for high ceilings?
The wireline system provides up to 24 feet of cable to accommodate the viewing height of large venues.
Can I control the motor with a wall switch or RS-232?
The standard radio frequency motor supports a hand-held remote and dry contact interface, with optional single channel wall switches or RS-232 interfaces available.
Is this product TAA compliant?
Yes, the 29453E is TAA compliant and is manufactured in the US.
