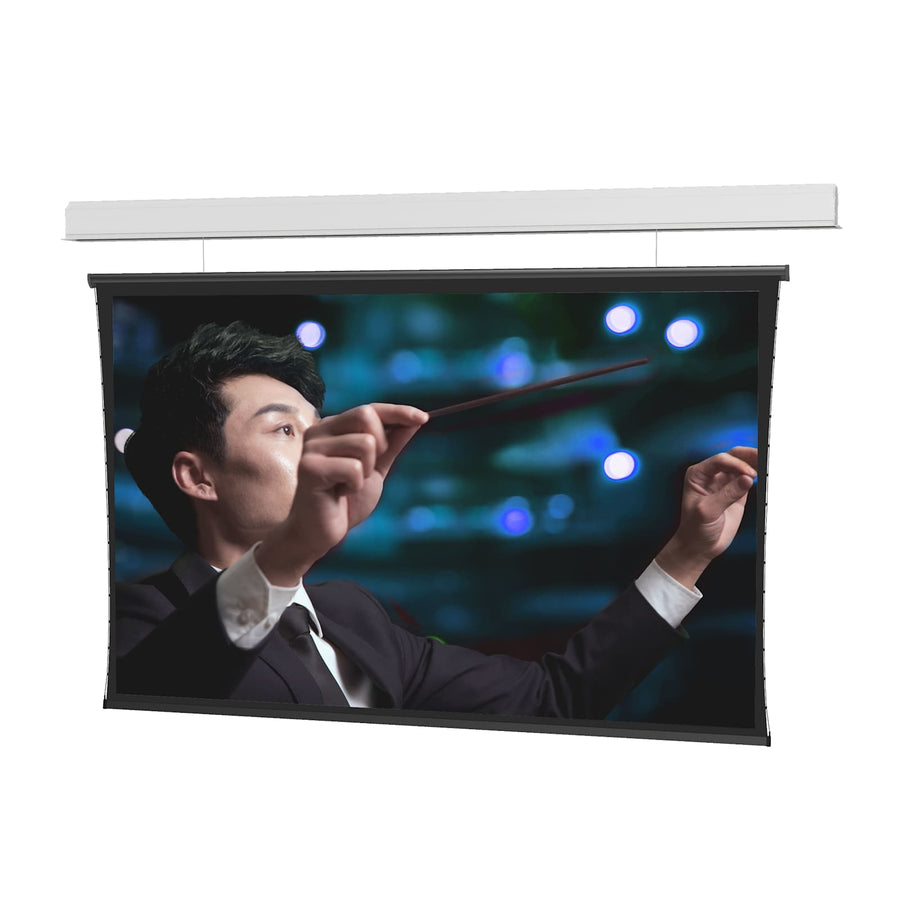

Da-Lite Wireline Advantage, 100" x 160" with HD Progressive ReView 0.9 - 29455E
Rear projection screen with 100" x 160" dimensions, HD Progressive ReView 0.9 surface, and 220V motor for large venue applications
The Da-Lite 29455E is a Wireline Advantage series rear projection screen designed for large venue environments. This 100" x 160" screen features a 16:10 wide format and is equipped with a 220V (50Hz) motor intended for export. It utilizes the HD Progressive ReView 0.9 surface, which is engineered to provide a high-resolution viewing experience. For installation, this unit is configured with a ceiling trim flange, designed for ceiling recessed or wall applications using sliding brackets to simplify attachment to the structure above a drop ceiling. This specific model is TAA compliant. The screen utilizes the TruGuide™ Electric Screen Tensioning System to maintain a smooth, even viewing surface. For high-ceilinged spaces, the Wireline system uses thin steel cables—up to 24 feet in length—to lower the screen to the required viewing height, providing a cleaner aesthetic than traditional black drop cables. The standard black backing is designed to retain projected brightness on the front projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 189 in (480.1 cm) |
| Screen Height | 100 in (254 cm) |
| Shipping Dimensions | 204" x 18" x 23" (518.2 x 45.7 x 58.4 cm) |
| Shipping Weight | 693 lbs (314.3 kg) |
| Size | 100" x 160" or 189" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 10
| Product Selection | Ceiling Trim Flange |
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| TAA Compliant | Yes |
| UPC | 717068448711 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Range Extender For Wireline (220V) 10
29471$238.40
Da-Lite Radio Frequency Dry Contact Interface For Wireline (220V)
29469$236.80
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (220V)
29470$340.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (220V)
10644$239.20
Questions about this part
Is the Da-Lite 29455E compatible with rear projection?
Yes, this model is specifically configured with an HD Progressive ReView 0.9 surface designed for rear projection applications.
How is this screen installed in a ceiling?
The 29455E includes a ceiling trim flange and sliding installation brackets, allowing for simple recessed ceiling installation that conceals the rough opening.
What motor voltage does this screen use?
This SKU is equipped with a 220V (50Hz) motor designed for export markets.
What accessories are available for control of the 29455E?
You can add a Da-Lite 29470 single channel wall switch, a 29469 dry contact interface, or a 29471 radio frequency range extender.
What is the replacement for this series?
This product is scheduled to be discontinued on December 31, 2026; the direct replacement is the Tensioned Myriad Conceal with SightLine (DL100287EL).
