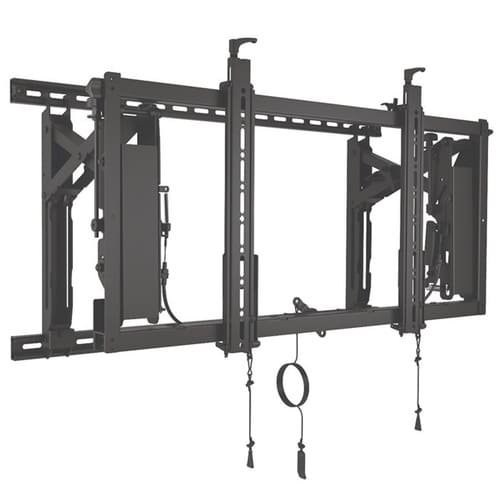

ConnexSys™ Video Wall Landscape Mounting System with Rails, TAA Compliant
Landscape video wall mount for 42"–80" displays, 150 lbs capacity, includes rails and micro-adjustability
The LVS1U-G is a landscape-oriented component of the Chief ConnexSys™ Video Wall Mounting System, engineered to solve common alignment, serviceability, and rigidity challenges during large-scale installs. This single-display mount features integrated rails to facilitate a connected system. To create a cohesive video wall, installers can use strut channel to link multiple mounts together, allowing for efficient row leveling and structural stability. This system is highly adjustable, providing lateral shift, height adjustment, extension, and micro-adjustment to ensure precise display alignment. It is designed for wall applications and is TAA compliant. The unit supports a wide variety of VESA mounting patterns from 200 x 100mm to 700 x 400mm and accommodates a typical screen size range of 42" to 80" (1067mm to 2032mm). With a 150 lbs (68 kg) weight capacity and a 4.0" (101.6 mm) minimum depth, it provides a robust solution for professional AV environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 4 in (10.2 cm) |
| Height | 20.9 in (53.1 cm) |
| Minimum Depth | 4 in (101.6 mm) |
| Overall Dimensions | 20.9" x 35.5" x 4.0" (531 x 903 x 101 mm) |
| Shipping Weight | 44 lbs (20 kg) |
| Typical Screen Size | 42" - 80" (1067mm - 2032mm) |
| Weight Capacity | 150 lbs (68 kg) |
| Width | 35.5 in (90.2 cm) |
All other specifications 13
| Adjustability | ExtensionHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +4°-2.5° |
| UPC | 841872165530 |
| VESA Mounting Pattern | 200 x 100mm - 700 x 400mm |
| With Rails | Yes |
| Certifications | TAAUL Listed |
Resources
Verified fitment
Questions about this part
Will the LVS1U-G fit my specific display model?
This mount is verified against 11,887 display models from 333 manufacturers, including the Samsung 400BX, Sony 50BZ30P, and LG 32LC2RR.
What is the weight capacity and adjustability of this mount?
The LVS1U-G has a 150 lbs (68 kg) weight capacity and offers micro-adjustment, lateral shift, height adjustment, and extension.
How do I level multiple mounts in a ConnexSys video wall?
You can level each row by using strut channel to connect multiple mounts together, ensuring a flat and aligned installation.
What is the minimum mounting depth required for installation?
The system requires a minimum depth of 4 in (101.6 mm) for wall applications.
Does this mount include the necessary rails for a video wall?
Yes, this SKU is a 'With Rails' version of the ConnexSys™ system, specifically designed for landscape orientation.
