Cisco Codec Kit for OneLINK HDMI to Vaddio HDBaseT Cameras
OneLINK HDMI kit for Cisco codecs that extends power, video, and control to Vaddio HDBT cameras over a single cable
The Vaddio 999-9575-000 Cisco Codec Kit for OneLINK HDMI to Vaddio HDBT Cameras enables installers to deploy HDBaseT cameras in larger rooms by decoupling the camera location from the codec. This kit utilizes OneLINK HDMI technology to transmit power, HDMI video, and control signals through a single category cable. When using a Cat-5e cable, the extension reaches up to 230 ft (70m), while Cat-6 cabling allows for distances up to 328 ft (100m). This kit is specifically engineered for Cisco SX20, SX80, and C-Series codecs. It provides compatibility with RoboSHOT 12E and 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboSHOT IW, and DocCAM 20 HDBT cameras. For installations utilizing a Cisco SX20 codec with a OneLINK HDMI interface, a Cisco CAB-PHD4XS2-SPLIT cable is required to complete the connection. The system features a built-in browser-based user interface for streamlined remote configuration and system administration via RS232 or Telnet.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6 in (15.2 cm) |
| Distance | 328 in (833.1 cm) |
| Height | 1.72 in (4.4 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 1.55 lbs (0.7 kg) |
| Shipping Dimensions | 16" x 16" x 7" (406.4 x 406.4 x 177.8 mm) |
| Shipping Weight | 3 lbs (1.4 kg) |
| Width | 8.38 in (21.3 cm) |
All other specifications 15
| 3rd Party Control | RS232Telnet |
| Browser-based User Interface for Remote Control | Built-in |
| Color | Black |
| Compatible With | CiscoVaddio |
| Extension Type | CameraCodec |
| Input Ports | HDbT |
| OneLINK HDMI adds | 328ft (100M) Power Video Control ExtensionHDMI |
| Output Ports | HDMI |
| Power Cord | US Cord |
| Power Supply | 1.36A48VDC |
| Power Type | OneLINK |
| TAA Compliant | Yes |
| UPC | 840077502218 |
| Certifications | CEFCCTAAUL Listed |
| Warranty | 2 years |
Resources
You'll need these with it
Undermount Brackets for Vaddio 1/2 Rack Unit Devices
998-6000-005$44.10
Single 1/2 Rack Mounting Kit
998-6000-004$80.10
48 Volt Power Supply (1.35 Amp)
440-1370-148$86.40
Dual 1/2 Rack Mounting Kit
998-6000-006$114.30
Vaddio Device Controller
999-42300-000$855.00
Cisco Codec Kit for OneLINK HDMI to RoboSHOT HDMI Cameras
999-9570-000$2,089.80

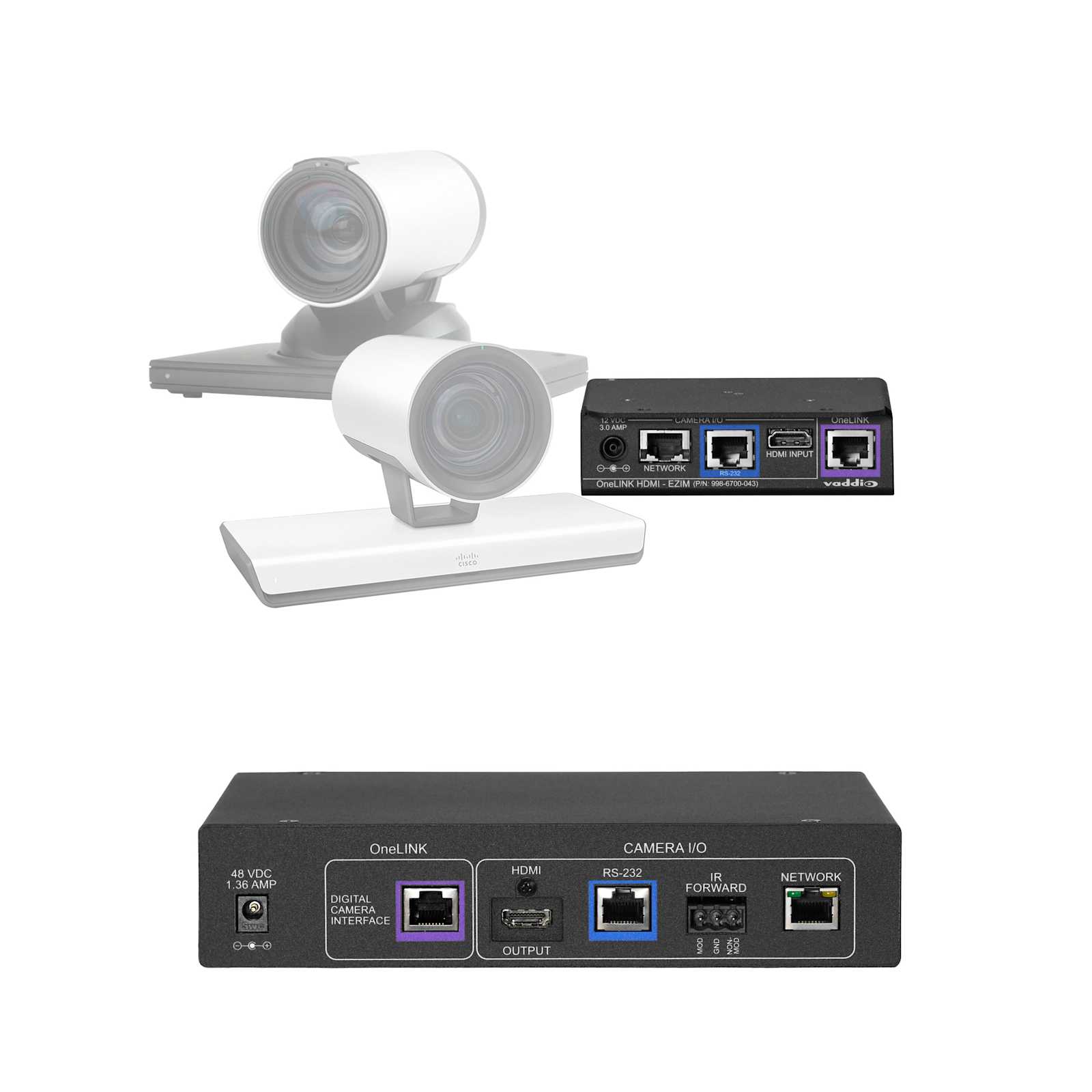

Cisco Codec Kit for OneLINK HDMI to Cisco Cameras
999-9560-000$2,089.80
Cisco Codec Kit for OneLINK Bridge to Vaddio HDBaseT Cameras
999-9675-000$2,877.30
Questions about this part
Will this kit work with my Cisco SX20 codec?
Yes, it is designed for SX20, SX80, and C-Series codecs, but you will need to provide a Cisco CAB-PHD4XS2-SPLIT cable when connecting an SX20.
Which Vaddio cameras are compatible with this kit?
It supports RoboSHOT 12E and 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboSHOT IW, and DocCAM 20 HDBT models.
How far can I run the cable to the camera?
You can achieve distances up to 328 ft (100m) when using Cat-6, or up to 230 ft (70m) with Cat-5e cable.
Does this kit support remote control and management?
Yes, the system supports RS232 and Telnet control and features a built-in browser-based interface for remote configuration.
Is this product TAA compliant?
Yes, the 999-9575-000 is TAA compliant and is UL Listed and FCC certified.
