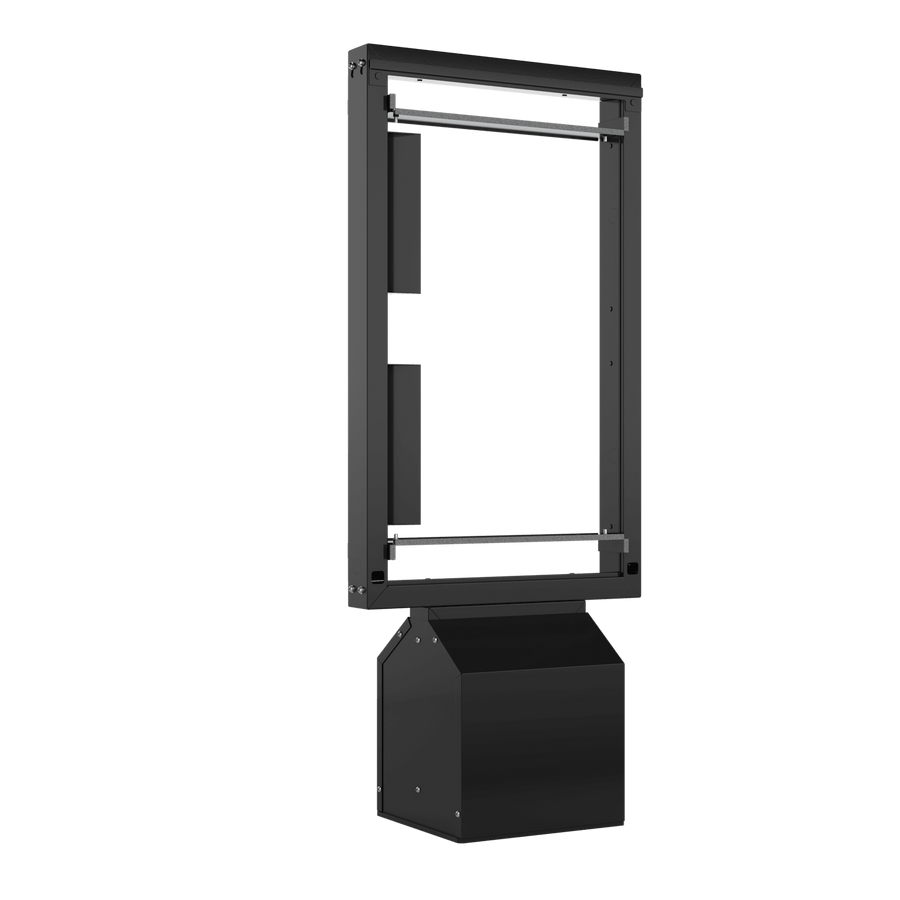

Chief Velocity Outdoor Single Pedestal System
Single outdoor pedestal mount for 55" displays, featuring modular expansion capabilities and a wind-tested design
The Chief ODMB1X1 is a modular outdoor pedestal system specifically configured for a single display. Designed for use in high-traffic environments like drive-thru menu boards or wayfinding signage, this system supports Samsung and LG 55" outdoor displays. The modular architecture allows installers to easily expand a single setup into a double or triple display configuration in the future, reducing long-term ownership costs for digital signage projects. This specific SKU is built for a single-display orientation and features a slotted base plate that provides 15° of rotational positioning flexibility to optimize customer viewing angles. The open back design facilitates easier maintenance access, while tamper-resistant security screws help protect against vandalism. This UL Listed system is designed for rapid two-person installation without the need for heavy lift equipment. Additionally, the structure is wind-tested to 140 mph, ensuring stability in extreme weather conditions.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Internal Device Mounting Dimensions | 15.34” x 16.37” x 17.76” (390 x 416 x 451 mm) Mounting Plates: 16.18” x 7.6” (411 x 193 mm) |
| Overall Dimensions | 15.336” x 28.25” x 67.375” (390 x 718 x 1711 mm) |
| Typical Screen Size | 55" (1397mm) |
| Weight Capacity | 150 lbs (68 kg) per frame |
| Color | Black |
| Orientation | Portrait |
| Product Configuration | Single Display |
| UPC | 841872178769 |
| VESA Mounting Pattern | 560" x 1186" |
| Certifications | UL Listed |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the ODMB1X1 fit my specific outdoor display?
The ODMB1X1 is verified against 12 display models from 2 manufacturers, including Samsung models LH55OHDEBG and LG Electronics models 55XE3P and 55XE4FB.
Can this pedestal be expanded later?
Yes, the modular Velocity design allows you to evolve your installation from a single display to a double or triple display setup as needs change.
How is the display secured against vandalism?
The system includes tamper-resistant security screws to prevent vandalism and features an outdoor-rated finish that meets UL 2442 Part 2 requirements.
What accessories are compatible with this pedestal?

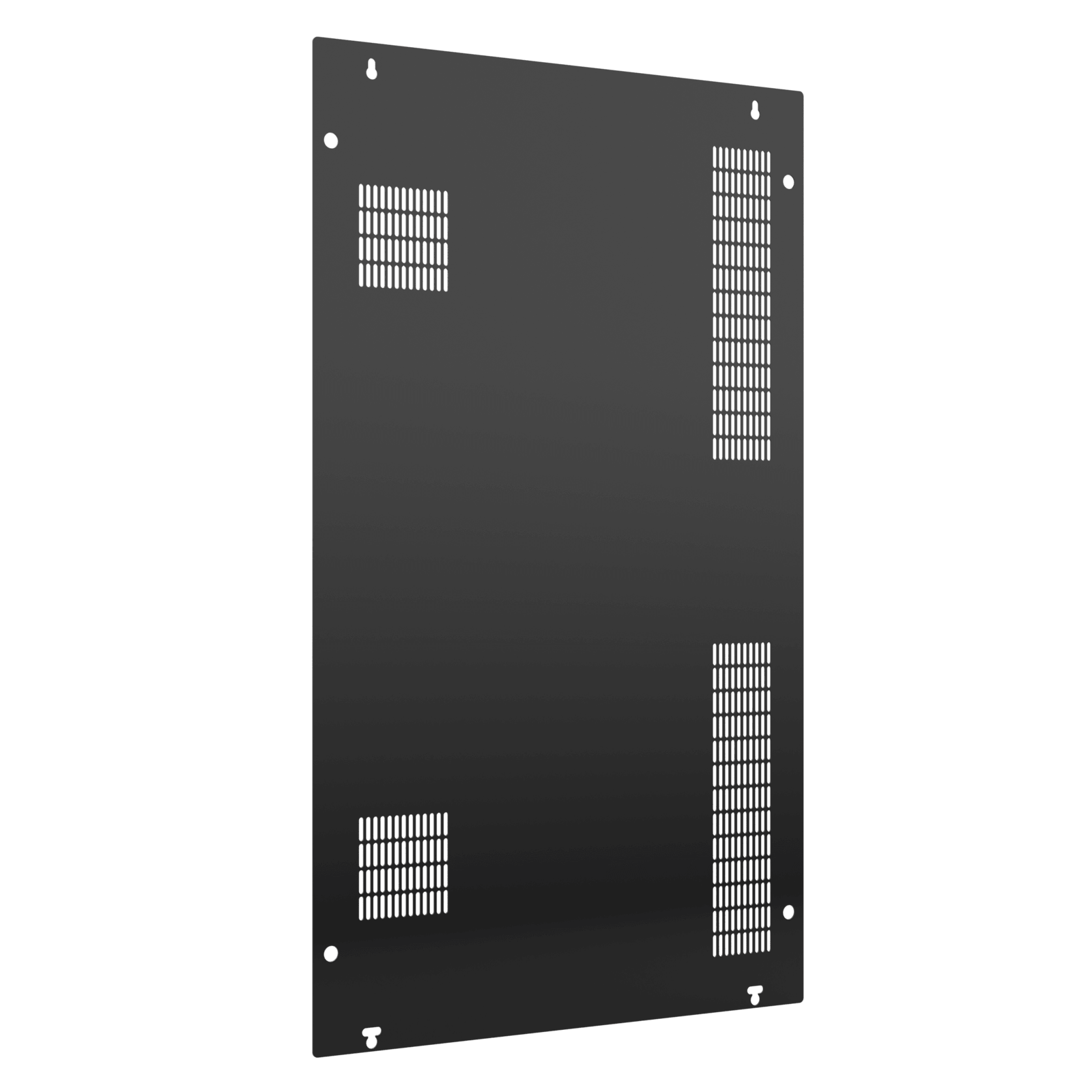

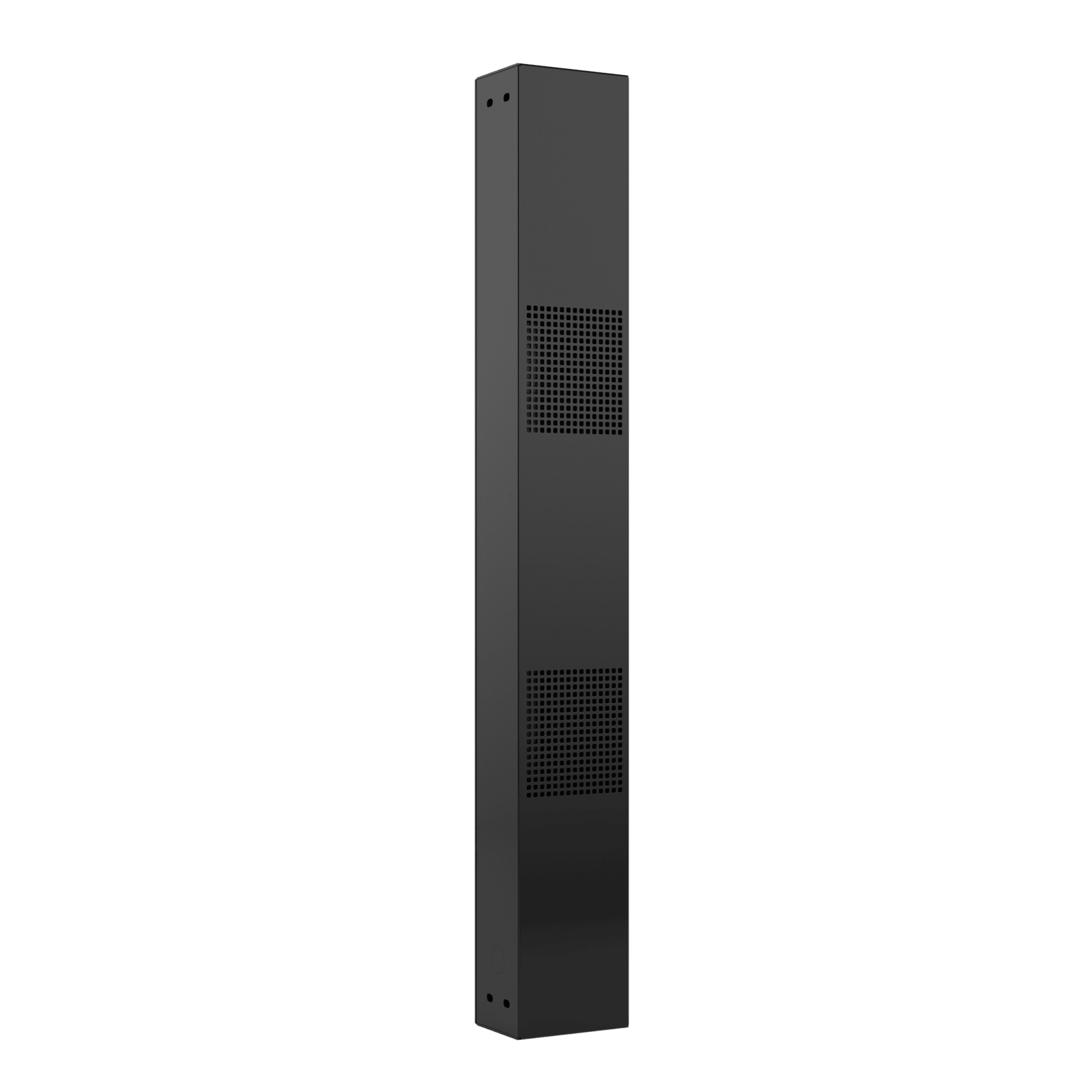

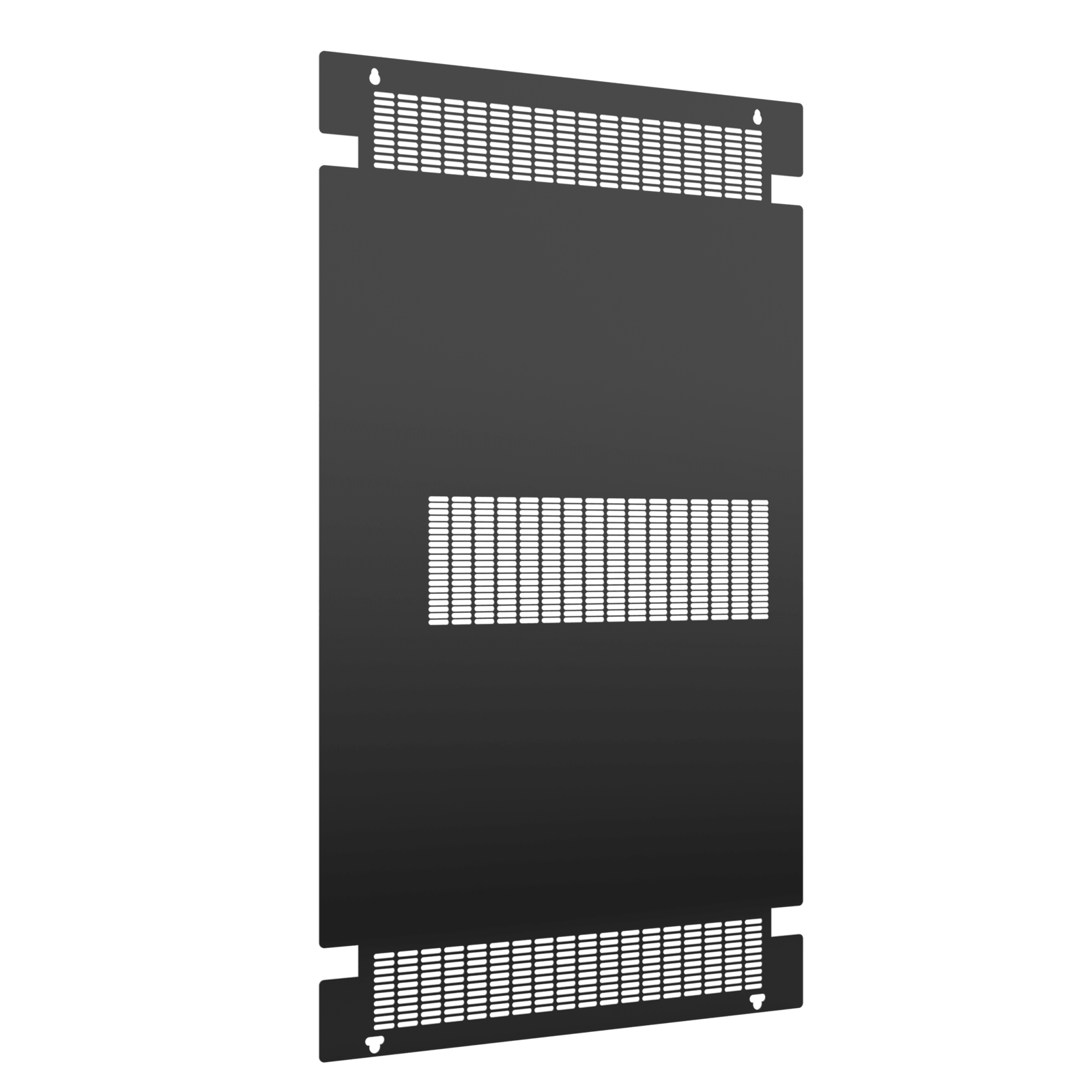

You can add a Chief Velocity Outdoor Speaker Mount Accessory (ODMSA) or install a compatible back cover, such as the ODMBCS for Samsung or ODMBCLG for LG.
Can I adjust the viewing angle once installed?
Yes, the slotted base plate allows for 15° of rotational positioning to help achieve the ideal customer viewing angle.
