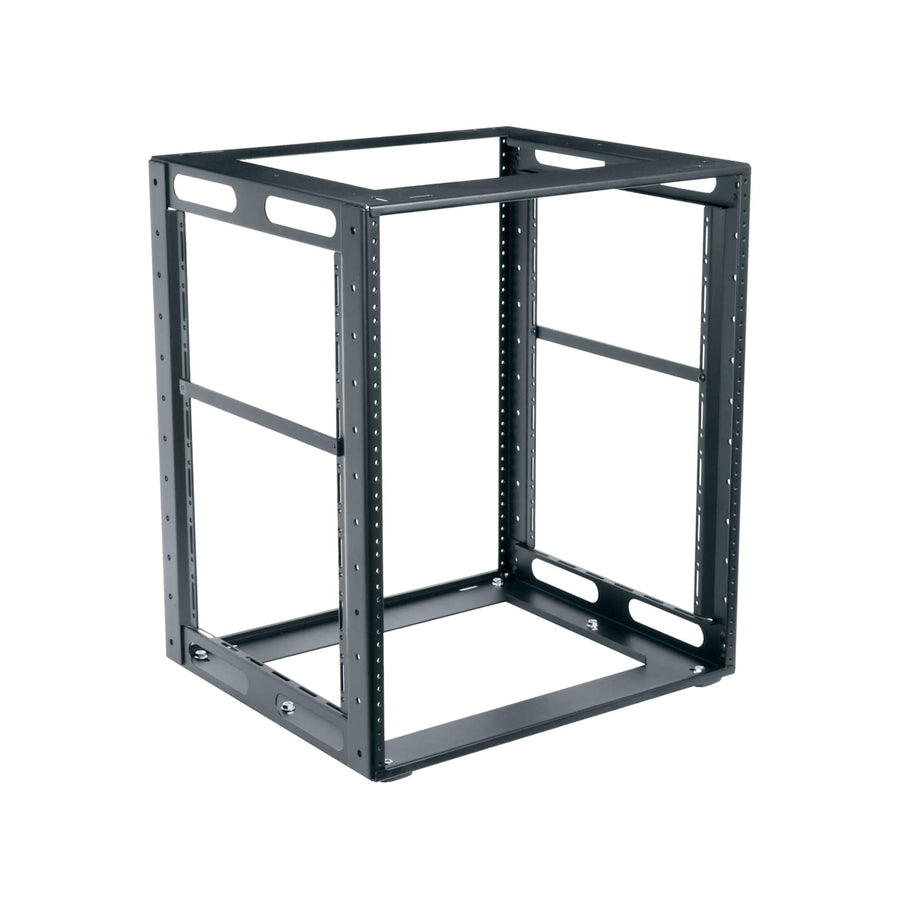

CFR Cabinet Frame Rack CFR-13-16
13 RU in-cabinet frame rack with 16" depth, 250 lbs capacity, and TAA compliance for entertainment systems
The Middle Atlantic CFR-13-16 is an in-cabinet frame rack designed to maximize usable rackspace within entertainment systems and cabinets where space is limited. This 13 RU series features a low profile design, making it an efficient solution for tight installation environments. The rack is constructed from heavy-duty welded steel with a black flat powder coat finish, allowing installers to pre-load equipment and transport the frame to the job site with confidence. It features 10-32 rack rails and includes two front-to-rear lacing bars to facilitate organized cable dressing. Additionally, the uprights are engineered with offset cable tie areas to further assist with wire management. This TAA compliant, UL Listed frame provides a robust foundation for professional AV installs, offering a 250 lbs (113.4 kg) UL load capacity and a usable height of 22.75 in (57.8 cm).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 16 in (40.6 cm) |
| Height | 23.69 in (60.2 cm) |
| Product Weight | 19.8 lbs (9 kg) |
| Rack Units | 13 RU |
| Shipping Weight | 25.3 lbs (11.5 kg) |
| UL Load Capacity | 250 lbs (113.4 kg) |
| Usable Depth | 16 in (40.6 cm) |
| Usable Height | 22.75 in (57.8 cm) |
All other specifications 10
| Width | 19.25 in (48.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Material | Steel |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | Yes |
| UPC | 656747112706 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30

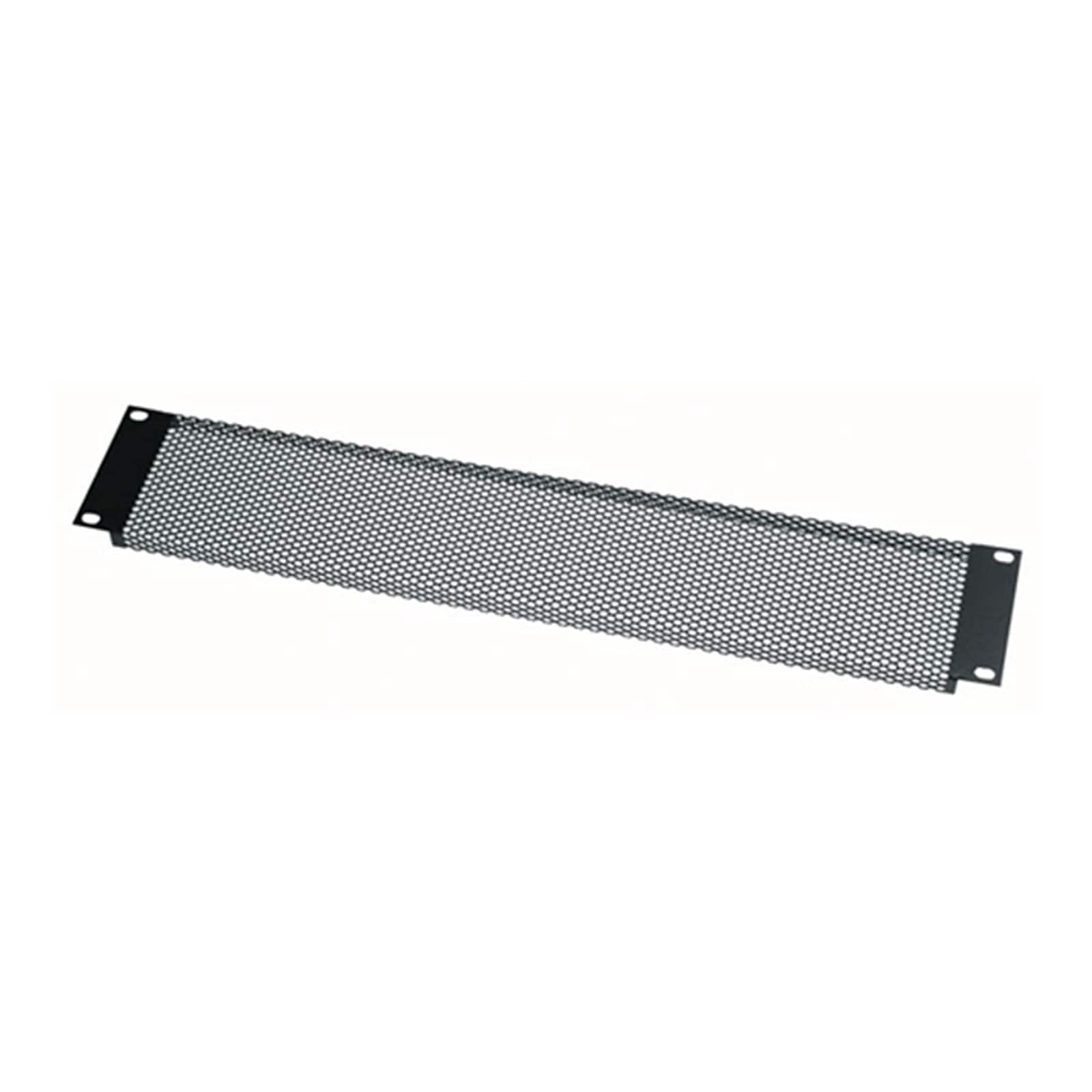

2 RU Rack Vent Panel, Perforated with 64% Open Area
VT2$34.20
1 RU Adjustable Rackshelf 16 Inches to 26 Inches Deep
VSA-1626$211.50
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-815SC-20$232.20
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30
2 RU Plastic Cable Manager, 3 Inches Deep
PHCM-2-3$61.20
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
1 RU Hinged Horizontal Cable Manager
HHCM-1$84.60
2 RU Horizontal Cable Manager with Front/Rear D-Rings
HCM-2DR$84.60
2 RU D-Ring Horizontal Cable Manager
HCM-2D$66.60
Horizontal Cable Manager 1 RU Front/Rear D-Ring
HCM-1DR$80.10
Questions about this part
What is the maximum load capacity for the CFR-13-16?
The CFR-13-16 has a UL load capacity of 250 lbs (113.4 kg).
Does this rack include cable management features?
Yes, it includes two front-to-rear lacing bars for cable dressing and uprights that feature offset cable tie areas.
Is the CFR-13-16 TAA compliant?
Yes, this model is TAA compliant and is UL Listed.
What accessories are compatible with this rack?
Compatible accessories include VSA-1626 adjustable rackshelfs, PD-815SC-NS vertical power strips, and various HCM and PHCM cable managers.
How does this differ from other CFR series racks?
This SKU is the 13 RU version within the CFR series; other models in this series offer different rack unit heights.
