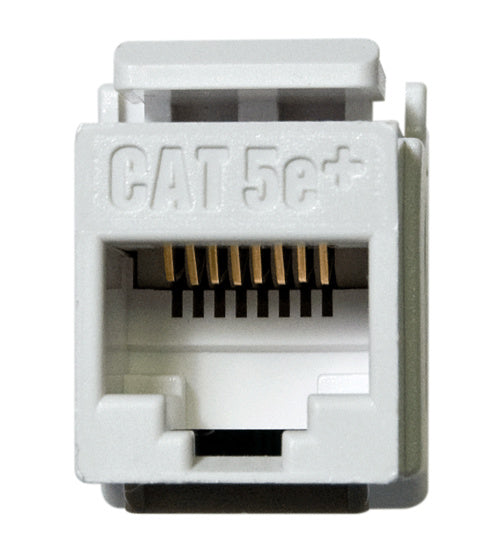

Cat5e RJ45 Keystone Connector in White
White Cat5e RJ45 keystone connector with a vertical design for simplified punchdown termination in multimedia wall plates
The On-Q WP3450WH is a Cat5e RJ45 keystone connector designed for use in all standard Keystone wall plates. This white insert features a vertical design specifically engineered to make punchdown termination easier for installers. The jack housing is constructed from high-impact, flame-resistant UL 94V-0 plastic, and internal spring wires are made of a phosphor bronze alloy plated with 50 micro-inches of gold over 100 micro-inches of nickel. It meets Category 5e requirements as described in TIA/EIA-568-B.2 and is rated for a minimum insertion and extraction life of 750 cycles. For large-scale installations, the WP3450-BE-50 contractor pack is also available.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Package Count | 1 |
| Cable Type | Cat5e |
| Color | White |
Resources
You'll need these with it
24-Port Blank Keystone/Multimedia Patch Panel
CG03859$43.99
12-Port Blank Keystone/Multimedia Patch Panel
CG03857$25.99
2-Port Decorator Outlet Strap in White
WP3412WH$1.79
Surface Mount Box 1-Port in White
WP3501WH$1.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
Surface Mount Box 2-Port in White
WP3502WH$2.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Cable Management Strap - 12 Piece
TW12$25.20
3ft (0.9m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Black
CG28690$12.99
10ft (3m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
CG15199$8.99
Questions about this part
What type of cabling is this keystone compatible with?
This is a Cat5e RJ45 keystone connector designed for use with Cat5e cabling.
What wall plates and boxes can I use this in?
This insert fits in all Keystone wall plates, including the WP3402WH 1-Gang 2-Port Wall Plate in White and the WP3412WH 2-Port Decorator Outlet Strap in White.
Is there a bulk option available for this connector?
Yes, this connector is also available in a 50-count contractor pack, part number WP3450-BE-50.
Will this work in a patch panel?
This keystone is compatible with the CG03859 24-Port Blank Keystone/Multimedia Patch Panel and the CG03857 12-Port Blank Keystone/Multimedia Patch Panel.
How is the wiring color-coded for termination?
The connector includes T658A and T568B wiring labels to assist with proper termination.
