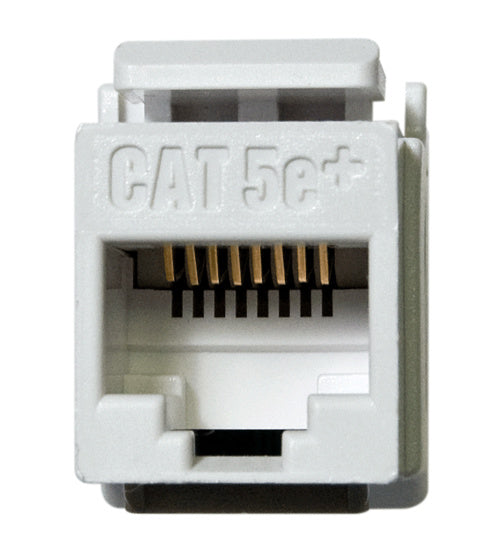

Cat5e RJ45 Keystone Connector in White - 50 Pack
White Cat5e RJ45 keystone connectors in a 50-count contractor pack for multimedia wall plates
The WP3450WH50 is a bulk 50-pack of Cat5e RJ45 keystone connectors in white. Designed for high-quality multimedia installations, these inserts feature a vertical design to simplify the punchdown termination process for installers. Each jack housing is constructed from high-impact, flame-resistant plastic and is rated UL 94V-0. For secure wire termination, the units include rear retention caps. The internal spring wire is a phosphor bronze alloy plated with 50 micro-inches of gold over 100 micro-inches of nickel. These keystone jacks are intended for use in all standard keystone wall plates and are compatible with various On-Q mounting options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Package Count | 50 |
| Cable Type | Cat5e |
| Color | White |
Resources
You'll need these with it
24-Port Blank Keystone/Multimedia Patch Panel
CG03859$43.99
12-Port Blank Keystone/Multimedia Patch Panel
CG03857$25.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
1-Gang 1-Port Keystone Wall Plate in White 2- 5 Pack
WP3401WH25$34.99
Surface Mount Box 2-Port in White
WP3502WH$2.99

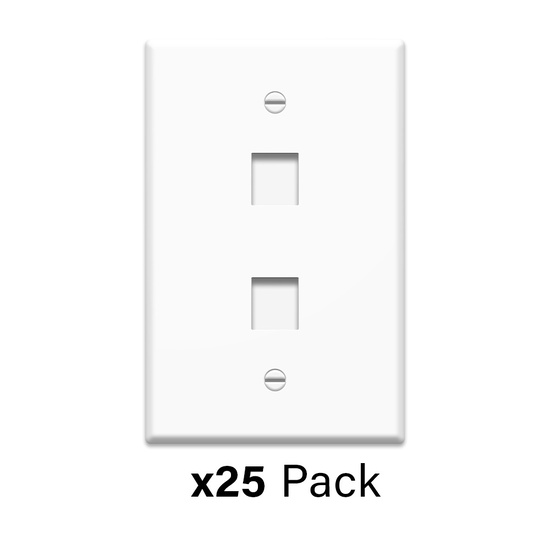

1-Gang 2-Port Keystone Wall Plate in White - 25 Pack
WP3402WH25$34.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Cable Management Strap - 12 Piece
TW12$25.20
3ft (0.9m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Black
CG28690$12.99
10ft (3m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
CG15199$8.99
Questions about this part
What type of cable is this keystone compatible with?
This keystone is designed specifically for use with Cat5e cable types.
What mounting hardware do I need to install these?
These jacks are designed for use in any standard keystone wall plate or surface mount box.
How many connectors are included in this specific SKU?
This WP3450WH50 model is a contractor pack containing 50 individual connectors.
Are these compatible with On-Q patch panels?
Yes, these can be installed into On-Q blank keystone patch panels like the CG03857 or CG03859.
Can I find this connector in colors other than white?
Yes, this series is available in multiple colors including Black, Blue, Brown, Gray, Ivory, Light Almond, and Orange.
