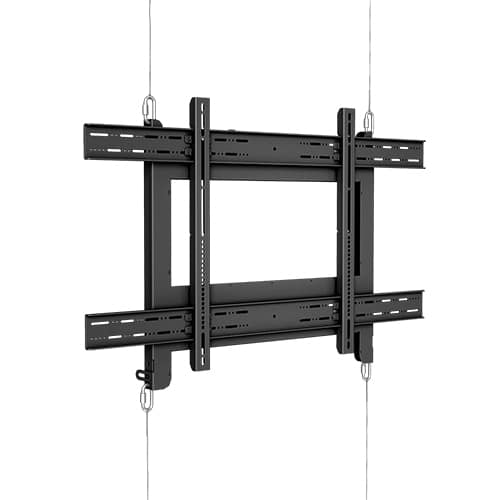

Cable Floor-to-Ceiling Flat Panel Mount
Floor-to-ceiling mount for retail storefronts, supporting portrait or landscape orientations with a 130 lbs capacity
The Chief FCS1U provides an ultra-low profile mounting solution perfect for retail storefronts. Designed for environments that are hard to support with traditional mounts, this versatile system can be installed in ceiling or floor-to-cart applications. It supports both portrait and landscape orientations in a single SKU, allowing for rapid reconfiguration. The system is UL Listed and TAA compliant. For installers concerned with precise alignment, the mount features post-installation pitch adjustment, which keeps the display from tilting without the need to over-tighten cables. This mounting solution can be expanded for more complex signage needs; for example, you can retrofit a second, back-to-back display using the PACFCB accessory. The FCS1U is verified against 11,185 display models from 301 manufacturers, including Samsung 460CX, Sony 55BZ30P, and LG 40LF6200.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Height | 15 ft (4.57 m) Floor-to-Ceiling Maximum Distance |
| Shipping Dimensions | 36.5" x 22.5" x 4" (927.1 x 571.5 x 101.6 mm) |
| Shipping Weight | 26.7 lbs (12.1 kg) |
| Weight Capacity | 130 lbs (59 kg) |
| Adjustability | FixedHeight Adjustable |
| Application | CeilingFloor-Cart |
| Color | Black |
| Orientation | LandscapePortrait |
All other specifications 6
| Solution Type | Universal |
| Special Features | Security |
| TAA Compliant | Yes |
| UPC | 841872173511 |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the Chief FCS1U fit my display?
Yes, it is verified against 11,185 models from 301 manufacturers, including Panasonic LH65QM1, Samsung 400MX2, Sony 55BZ35P, and Sharp 4PB75EJ2U.
Can I mount two displays back-to-back?
Yes, you can retrofit a second display back-to-back by using the PACFCB back-to-back accessory.
How do I adjust the tilt after installation?
The mount features post-installation pitch alignment, which allows you to adjust the display without over-tightening the cables.
What is the maximum height for this mount?
The FCS1U has a maximum floor-to-ceiling distance of 15 ft (4.57 m).
What accessories are compatible with the FCS1U?
Compatible accessories include the PACFCB back-to-back accessory, the PACFCL lateral shift accessory, and the CSMP9X12 proximity component storage panel.
