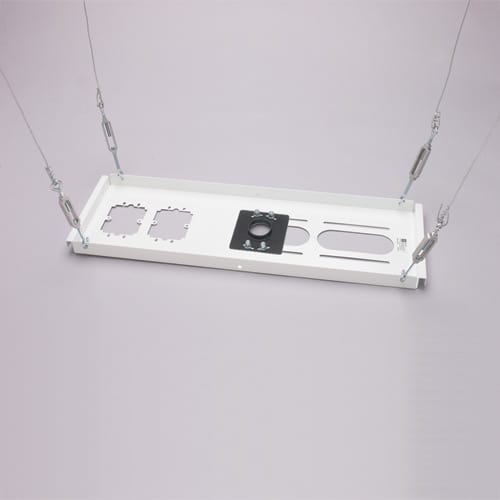

Above Tile Suspended Ceiling Kit, TAA Compliant
Suspended ceiling kit for above-tile installation, supporting up to 50 lbs (22.7 kg) for 2' x 2' or 2' x 4' tiles
The Chief CMA440-G is an above-tile suspended ceiling kit designed for efficient, economic projector mounting in environments with grid ceilings. This white-finished kit is built for rapid installation by clamping directly to existing ceiling tracks, requiring minimal assembly on-site. It is specifically designed to work with 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles. The kit supports a total weight of 50 lbs (22.7 kg), a figure that includes the combined weight of the projector, the mount, and the column. For more complex installations requiring fixed piping, the CMA443 is available as a bundle that includes this CMA440 kit alongside the CMS003 3" Fixed Pipe. This TAA compliant solution provides a streamlined way to secure projectors above the ceiling line without specialized structural modifications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) |
| Depth | 8 in (20.3 cm) |
| Height | 1.2 in (3.1 cm) |
| Shipping Dimensions | 27.25" x 9.25" x 1.5" (692.2 x 235 x 38.1 mm) |
| Shipping Weight | 8 lbs (3.6 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 24.4 in (62 cm) |
| Accessory Type | Suspended Ceiling |
All other specifications 9
| Application | Ceiling |
| Ceiling Plate Type | Flat |
| Color | White |
| Includes Power Outlet | No |
| Installation Type | Above Tile |
| Special Features | Surge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872164120 |
| Certifications | TAA |
Resources
Questions about this part
Will the CMA440-G work with my existing grid ceiling?
Yes, this kit is designed for easy clamping to ceiling tracks and is compatible with both 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) tiles.
What is the total weight capacity of this kit?
The kit supports a total weight of 50 lbs (22.7 kg), which accounts for the combined weight of the projector, the mount, and the column.
What is the difference between the CMA440-G and the CMA443?
The CMA443 is a bundle that includes the CMA440 above-tile kit and a CMS003 3" Fixed Pipe.
Is this kit TAA compliant?
Yes, the CMA440-G is TAA compliant, making it suitable for projects with specific procurement requirements.
Does this kit include a power outlet?
No, this specific SKU does not include a power outlet.
