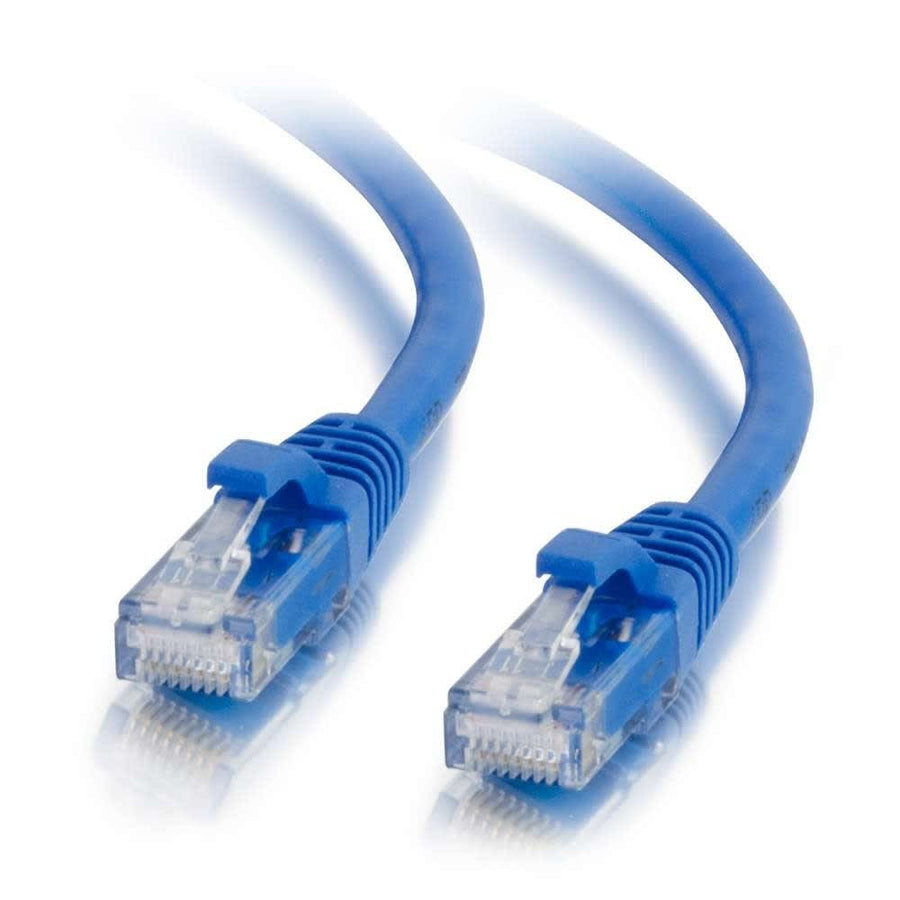

9ft (2.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
9ft (2.7m) blue Cat6a snagless unshielded UTP patch cable, 26AWG stranded copper, designed for high-density network environments
The C2G CG00697 is a 9 ft (2.7 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in blue, designed to support 10GBase-T equipment and high-speed data transmission. This cable is built to facilitate 10 Gigabit data transmission over 4-pair copper, providing connectivity for network adapters, hubs, switches, routers, and patch panels for distances up to 100 meters. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance in demanding environments. The stranded 26AWG bare copper conductors and HDPE insulation provide the necessary flexibility and durability for patch applications. For ease of identification in complex installations, each individual cable features a length label. This snagless design is specifically engineered to protect the connector during installation and to prevent cable damage in high-density switch applications. The blue PVC jacket and booted connectors facilitate easy color-coding within a larger network infrastructure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006978 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
10ft (3m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00732$15.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this Cat6a cable work for 10 Gigabit Ethernet?
Yes, this CG00697 cable enables 10 Gigabit data transmission over 4-pair copper, supporting 10GBase-T ports and equipment.
Is this patch cable suitable for high-density switches?
Yes, the snagless hood design is specifically intended to improve performance and protect connections in high-density switch environments.
What is the wiring standard for this patch cable?
The CG00697 follows the 568B wiring scheme for standard network connectivity.
Does this cable require specific testing for compliance?
Yes, every cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
What other equipment is compatible with this Cat6a cable?
This cable is compatible with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels such as the WP246A 24-Port Rack Mount Patch Panel.
