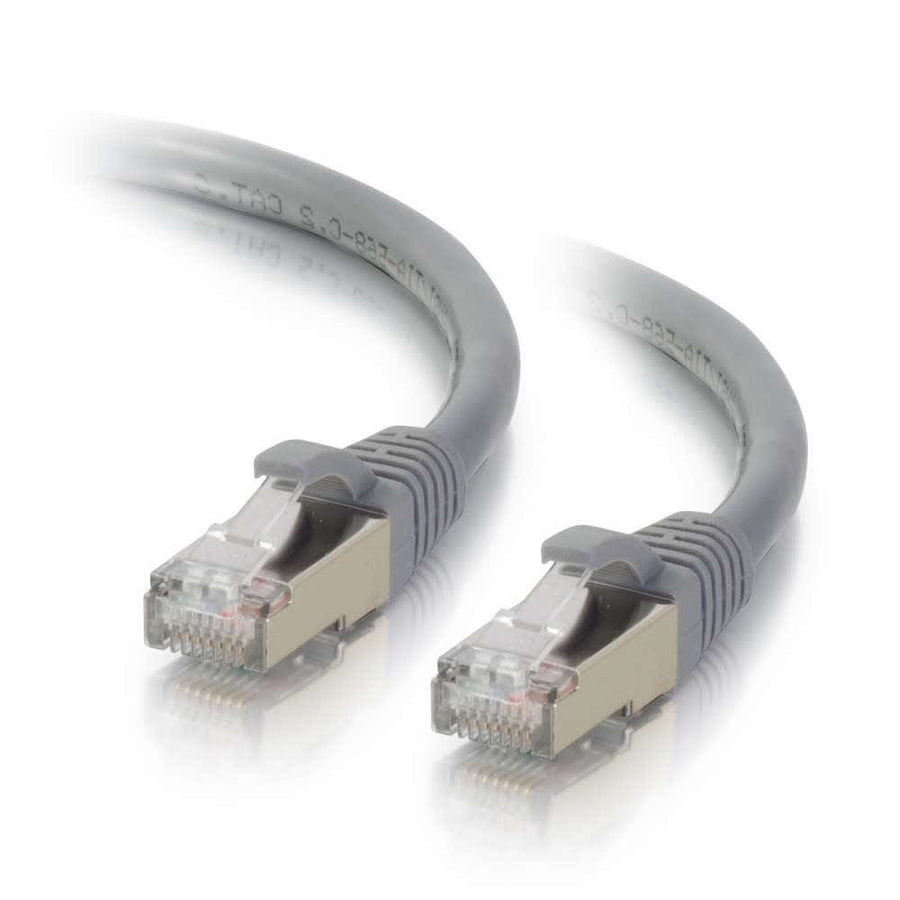

9ft (2.7m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Gray
9ft Cat6a shielded STP patch cable in gray with snagless boots, designed for high-speed 10GBase-T network connectivity
The CG00646 is a 9ft (2.7m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable in gray, specifically engineered to support high-speed 10GBase-T network environments. This cable is designed for use with equipment requiring high bandwidth, including network adapters, switches, routers, hubs, patch panels, and DSL/cable modems. By utilizing a shielded STP construction, it protects high-speed 10 Gigabit connections from electromagnetic interference and noise. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. The design features stranded copper conductors with 26AWG wire gauge and FMPE (Foam Polyethylene) insulation to maintain twist-spacing throughout the line up to the termination point. This helps minimize Near-End Crosstalk (NEXT) and reduces both impedance and structural return loss (SRL). Each cable is individually labeled with its length for easy identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 9 ft (2.7 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.26 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006466 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANsmart TDR Cable Tester
CG39002$786.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this CG00646 cable work for 10 Gigabit networking?
Yes, this Cat6a cable is designed for 10GBase-T ports and bandwidth-intensive applications to protect high-speed connections from noise.
What is the wiring scheme for the CG00646 patch cable?
The CG00646 follows the 568B wiring scheme and features stranded SSTP cabling for reliable performance.
Is this patch cable compatible with surface mount boxes?
Yes, it is compatible with various accessories including the CG03833 2-Port Keystone Jack Surface Mount Box and the CG03411 Two Port Keystone Single Gang Wall Plate.
What is the maximum operating temperature for this cable?
The cable is rated for operating temperatures ranging from -4°F to 176°F (-20°C to 80°C).
What certifications does this Cat6a cable hold?
This cable is ANSI/TIA 568 C.2 Cat6a component tested and is compliant with CE, REACH, and RoHS standards.
