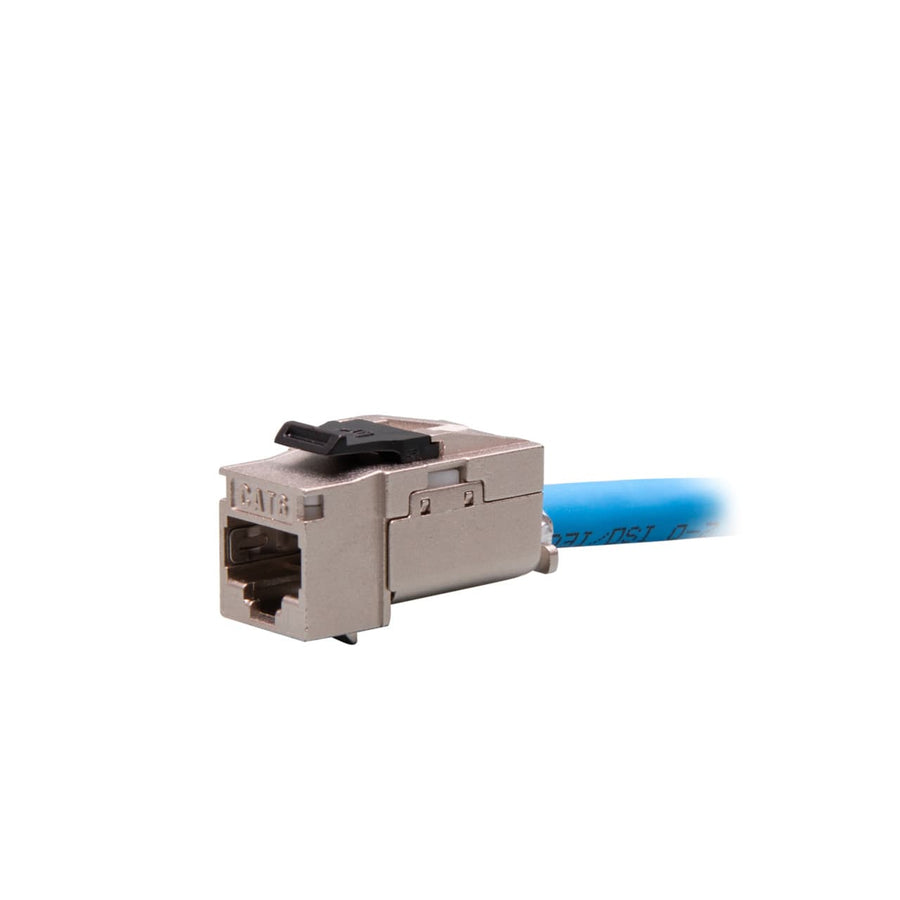

90° Cat6 RJ45 UTP Shielded Keystone Jack - Silver
Silver 90° Cat6 RJ45 UTP shielded keystone jack with 110-type IDC termination and gold-plated contacts
The CG35217 is a 90° Cat6 RJ45 UTP shielded keystone jack designed for high-performance network installations. This silver jack meets or exceeds Category 6/Class E standards according to TIA/EIA 568B 2.1 and ISO/IEC 11801. It features a 110-type vertical punchdown IDC termination suitable for 22-26 AWG UTP solid wire. The jack includes strain relief caps and 50 inch gold plating on the contacts to ensure reliable connectivity. A 2-piece shielded cover is included to protect against external radiated noise and facilitate easier cable installation. This jack is intended for use in unloaded keystone wall plates or patch panels. It is compatible with standard keystone or angled multimedia wall plates and patch panels, but please note it is not compatible with C2G surface mount boxes.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cable Length | 1.75 in (4.4 cm) |
| Shipping Weight | 0.03 lbs (0 kg) |
| Cable Type | Cat6 |
| Color | Silver |
| Connector 1 | (1) Shielded RJ-45 Female(1) Shielded RJ-45 Female |
| Product Type | JackKeystone |
| Special Features | ISO/IEC 11801TIA/EIA 568B 2.1 |
| TAA Compliant | No |
| UPC | 757120352174 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
Cable Management Strap - 12 Piece
TW12$25.20
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
Questions about this part
Will the CG35217 fit my wall plate or patch panel?
Yes, this jack works with any standard keystone or angled multimedia wall plate and patch panel, though it is not compatible with C2G surface mount boxes.
What type of wire is required for the CG35217 jack?
The jack uses 110/KRONE IDC vertical punchdown termination designed specifically for 22-26 AWG UTP solid wire.
What is the performance rating for this Cat6 keystone jack?
It is designed to meet or exceed Category 6/Class E standards according to TIA/EIA 568B 2.1 and ISO/IEC 11801, balancing crosstalk and insertion loss from 1 to 250 MHz.
What accessories are compatible with this jack?
You can use this jack with the CG37199 24-Port Cat6 110-Type Patch Panel or the CG03860 32-Port Blank Keystone/Multimedia Patch Panel.
Is the CG35217 TAA compliant?
No, this product is not TAA compliant.
