8-Port Switch: 4-Port Network, 4-Port PoE+
8-port unmanaged switch with 4 Gigabit Ethernet ports and 4 PoE+ ports, specifically designed for use in On-Q plastic enclosures

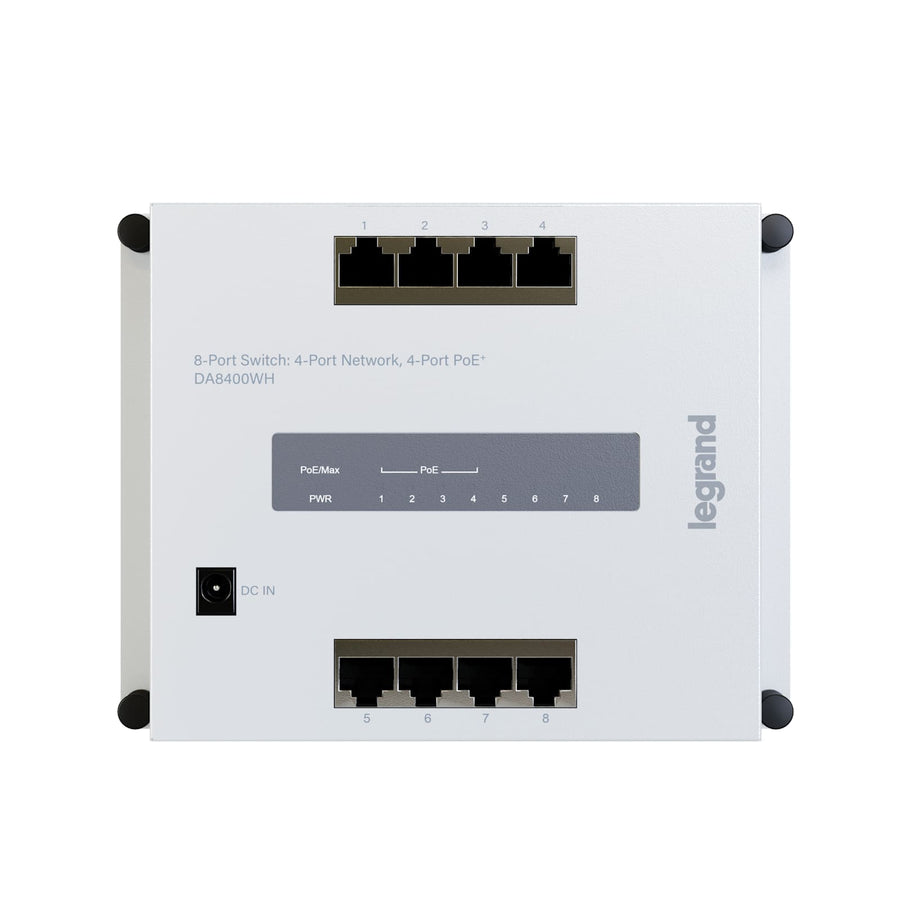

The DA8400WH is an 8-port unmanaged network switch designed to integrate into modern networking environments, specifically optimized for use within On-Q plastic enclosures. This switch provides a hybrid configuration consisting of 4 Gigabit Ethernet ports and 4 PoE+ (Power over Ethernet Plus) ports. The PoE+ ports deliver up to 30W of power per port, enabling the installation of devices like IP cameras, VoIP phones, or wireless access points without the need for local power outlets at the device location. This unit is housed in a sturdy metal chassis to protect internal components. The switch operates within a temperature range of -4° to 113°F (-20° to 45°C) and complies with IEEE 802.3 energy-efficient Ethernet standards to reduce power consumption during low data activity. Connectivity is managed via front-facing ports and status LEDs, allowing for easy monitoring and troubleshooting. The package includes an AC adapter and a US power cord for immediate deployment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 0.98 in (2.5 cm) |
| Height | 4.92 in (12.5 cm) |
| Operating Temperature | -4° - 113°F (-20° - 45°C) |
| Package Count | 1 |
| Package Depth | 8.39 in (21.3 cm) |
| Package Height | 3.15 in (8 cm) |
| Package Width | 5.18 in (13.2 cm) |
| Product Weight | 1.89 lbs (0.9 kg) |
All other specifications 9
| Storage Temperature | -40° to 158°F (-40°C to 70°C) |
| Color | White |
| Connection Type | Wired |
| Number of Ports | 8 |
| Port Location | Front |
| Power Cord | US Cord |
| Power Supply | AC Adapter |
| Switch Type | PoEUnmanaged |
| UPC | 804428435280 |
Resources
You'll need these with it
Questions about this part
Will this switch fit in my On-Q enclosure?
Yes, the DA8400WH is specifically designed for a seamless fit within On-Q plastic enclosures, avoiding the mounting complications of third-party brands.
What is the power delivery capacity of the PoE ports?
The DA8400WH features 4 PoE+ ports that each provide up to 30W of power to compatible network devices.
What devices can I power with the PoE+ ports?
The 4 PoE+ ports are suitable for powering network hardware such as IP cameras, VoIP phones, and wireless access points.
Does the DA8400WH come with a power supply?
The switch includes an AC adapter and a US cord, making it ready for installation upon arrival.
How do I monitor the status of my network connections?
The unit features front-facing status LEDs to allow for easy monitoring of connectivity and power status.
