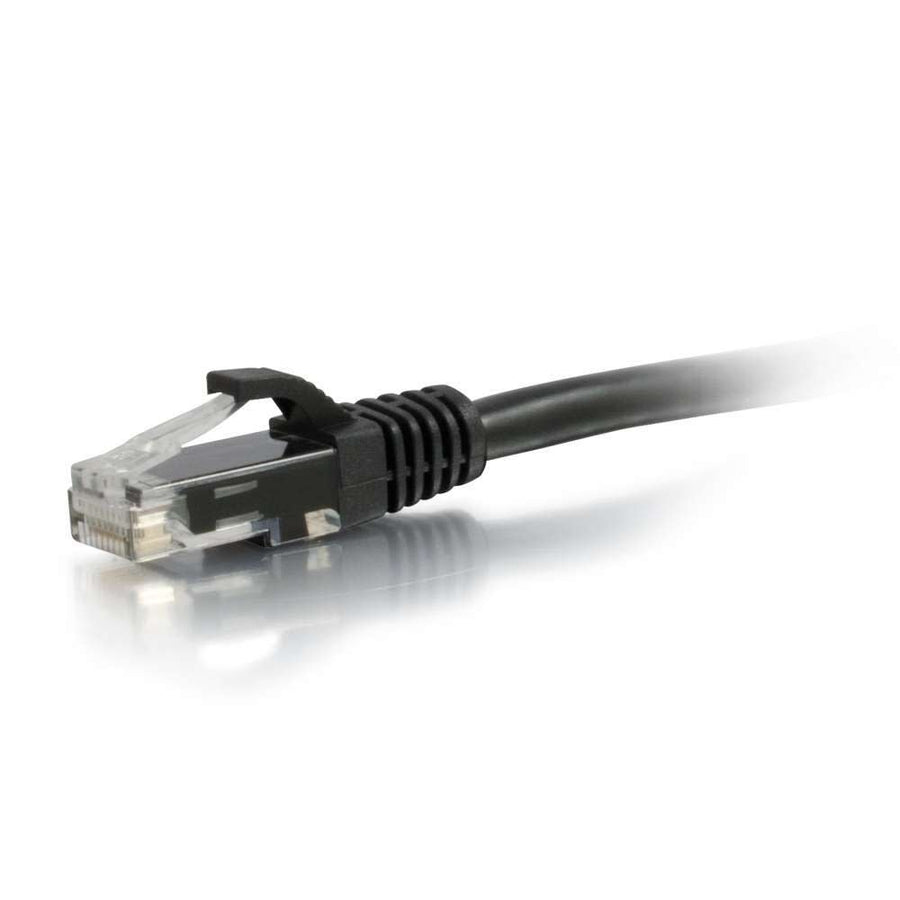

8ft (2.4m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
8ft (2.4m) Cat6a Snagless Unshielded UTP Ethernet patch cable in black, tested to ANSI/TIA 568 C.2
The CG00730 is an 8ft (2.4m) Cat6a Snagless Unshielded UTP Ethernet network patch cable designed for high-performance data environments. This cable supports 10 Gigabit Ethernet transmission over 4-pair copper cabling, facilitating connections for equipment up to 100 meters in length. It is specifically engineered for use with 10GBase-T ports in network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. To improve alien cross talk performance, this cable is constructed from high-quality materials, including a 26AWG (7/0.16) bare copper conductor with stranded construction. The jacket is made of PVC and the insulation features HDPE (High-density Polyethylene). For ease of identification in complex rack environments, each individual cable includes a length label. This specific black model belongs to the Cat6a Patch Cable series and is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.24 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007302 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8ft (2.4m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG00696$14.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this CG00730 cable work with my 10GBase-T switch?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and supports 10 Gigabit data transmission for devices like hubs, switches, and routers.
What is the difference between this and the blue CG00696 model?
The CG00730 is the black version of this 8ft (2.4m) Cat6a Snagless Unshielded UTP cable; the CG00696 is the same specification in blue.
Is this cable suitable for high-density patch panels?
Yes, the Snagless hood design is specifically intended to assist with cable management in high-density switch and patch panel applications.
What termination standard does this cable use?
This cable follows the 568B wiring scheme and is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
What other components are compatible with this Cat6a series?
This cable is compatible with various accessories, including the WP246A 24-Port Rack Mount Patch Panel and several Cat6a Quick Connect RJ45 Keystone Inserts.
