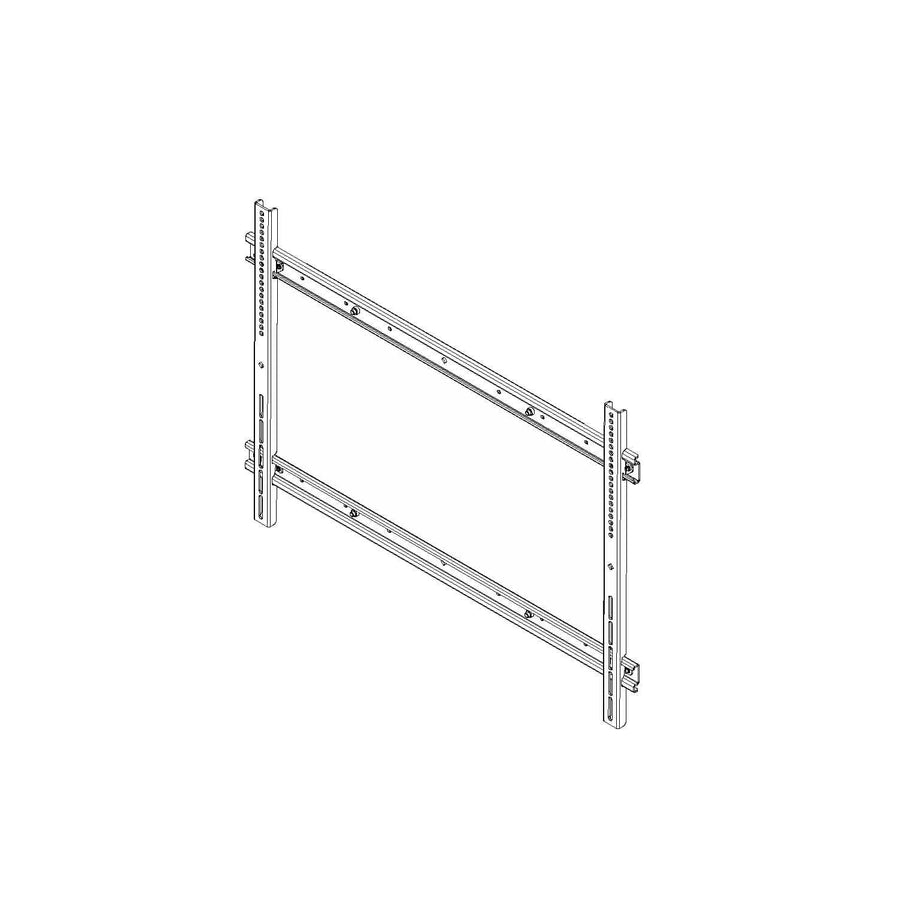

800x600 VESA Adapter for Voyager Cart
800x600mm VESA adapter for Voyager Carts, supporting 55"-86" displays with a 165 lbs weight capacity
The Chief FHB5177 is a specialized VESA adapter designed to bridge the gap between displays featuring non-standard VESA patterns and the VESA-compliant mounting hardware on a Voyager Cart. This component is required when installing a display with an 800 x 600mm pattern onto a floor-cart system. It is specifically engineered for use with Voyager Carts, allowing for a secure connection between the screen and the cart's mounting interface. The adapter accommodates large-format displays ranging from 55" to 86" and can support a weight capacity of up to 165 lbs (74.84 kg). Because this is a fixed-position adapter, it does not provide additional tilt or height adjustment beyond the cart's own mechanical capabilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Product Weight | 10.61 lbs (4.8 kg) |
| Shipping Weight | 11.33 lbs (5.1 kg) |
| Typical Screen Size | 55"- 86" (1397mm - 2184mm) |
| Weight Capacity | 165 lbs (74.84 kg) |
| Adjustability | Fixed |
| Application | Floor-Cart |
| UPC | 841872178400 |
| VESA Mounting Pattern | 200 x 125mm - 800 x 600mm |
Resources
You'll need these with it
Questions about this part
Will the FHB5177 fit my display?
This adapter is designed for displays with a VESA pattern ranging from 200 x 125mm up to 800 x 600mm.
What Voyager Carts is this adapter compatible with?
The FHB5177 is compatible with the Voyager Large Manual Height Adjustable AV Cart (LSCUB) and the Voyager Manual Height Adjustable AV Cart (LSCUW).
What is the maximum weight capacity for this adapter?
The adapter supports a maximum weight capacity of 165 lbs (74.84 kg).
Is this adapter adjustable for tilt or height?
The FHB5177 is a fixed adapter; any height or tilt adjustments must be performed using the Voyager Cart's own adjustment mechanisms.
What documentation is available for submittals?
Technical drawings, CAD files, and instruction manuals are available for this part to assist with system submittals and installation.
