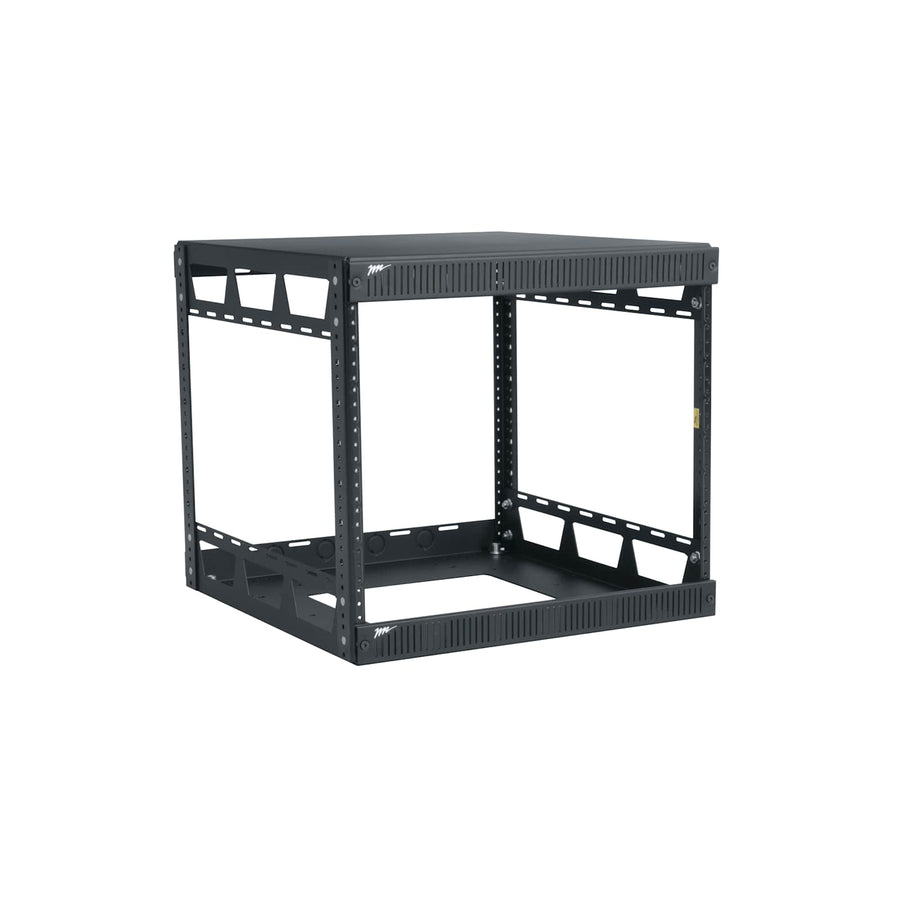

8 RU Slim 5 Series 19-1/8 Inch Wide Rack Frame, 26 Inches Deep
8 RU floor-standing rack frame with 26" depth and 400 lbs UL load capacity
The Middle Atlantic 5/8/2026 is an 8 RU Slim 5 Series rack frame designed to meet diverse project requirements through its lightweight, open-access steel construction. This knockdown rack frame features a 26 in (66 cm) usable depth and a 14 in (35.6 cm) usable height, providing ample space for equipment integration. The frame utilizes a unique interlocking corner joint to ensure exceptional strength and ease of assembly. It is a bolt-together design that allows for flat shipment via UPS. For thermal management, the top includes two laser knockout locations for mounting cooling fans. The front and rear fixed 10-32 threaded rackrails are marked for precise mounting. This frame is TAA compliant and UL listed, making it suitable for sensitive environments. Because this is a frame-only configuration, installers can customize the unit with optional removable steel side panels for enhanced security or airflow control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 26 in (66 cm) |
| Height | 17.75 in (45.1 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 28 lbs (12.7 kg) |
| Rack Units | 8 RU |
| Shipping Weight | 34.82 lbs (15.8 kg) |
| UL Load Capacity | 400 lbs (181.4 kg) |
| Usable Depth | 26 in (66 cm) |
All other specifications 10
| Usable Height | 14 in (35.6 cm) |
| Width | 19.13 in (48.6 cm) |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| TAA Compliant | Yes |
| UPC | 656747077197 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Caster Kit for Slim 5 Series Locking
5WL$120.60
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU Flanged Blank Rack Panel, Steel
EB1$17.10

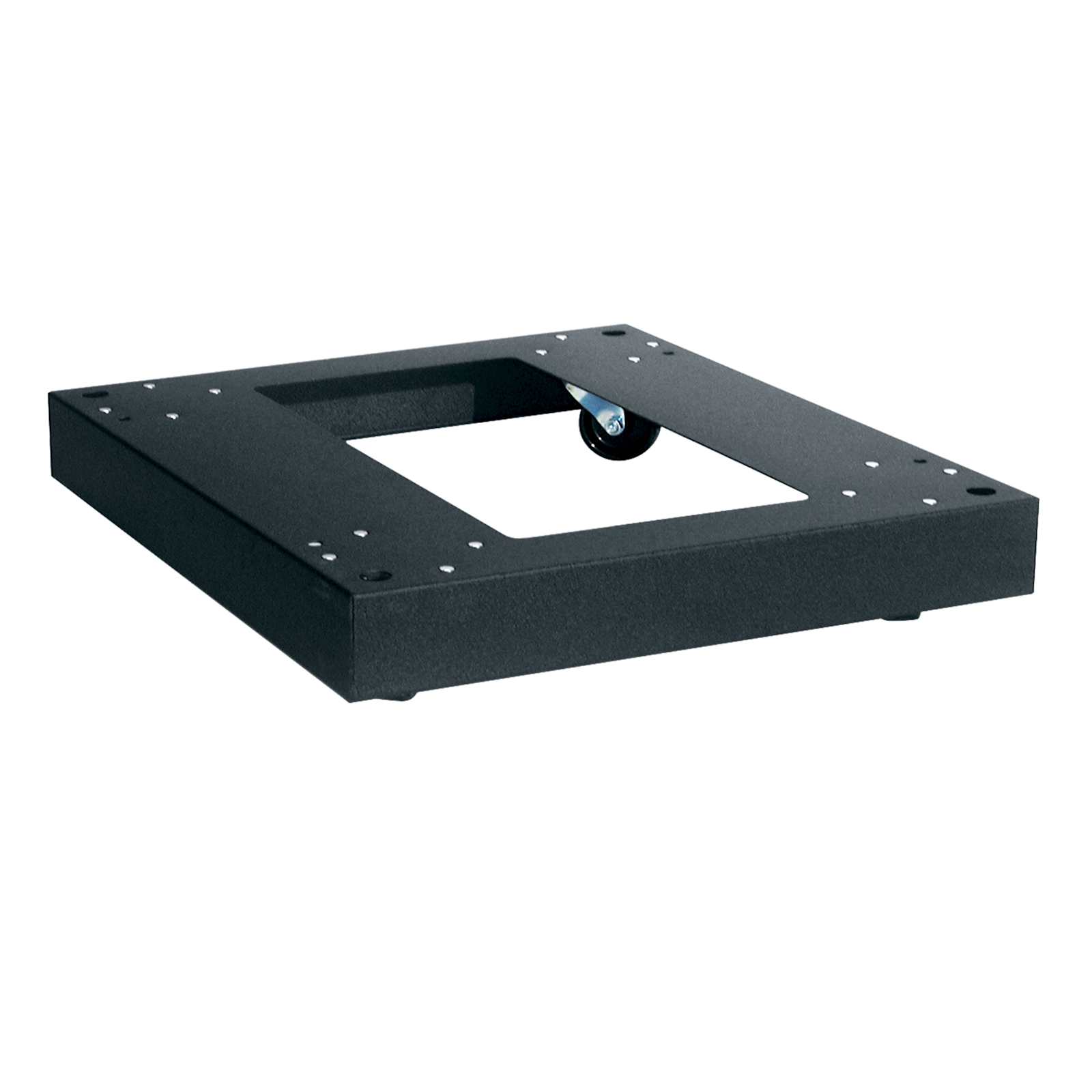

Caster Base for 26 Inch Deep Slim 5 Series, Fine Floor
CBS-5-26R$373.50
2 RU Brush Grommet Panel
BR2$106.20

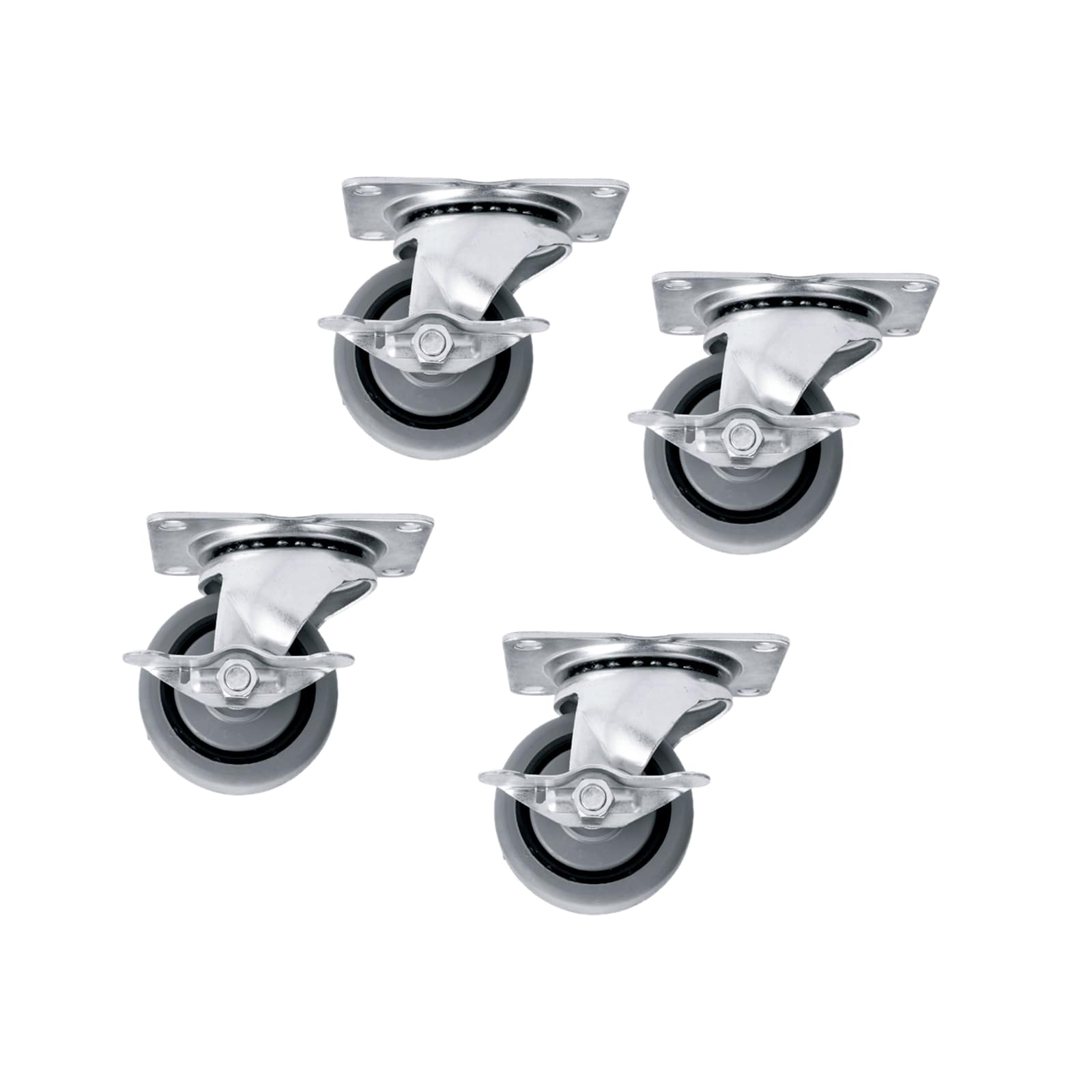

Caster Kit for Slim 5 Series Locking/Fine Floor
5WLR$216.90
26 Inch Deep Runner Kit for RS Series Racks
5-RS26$67.50

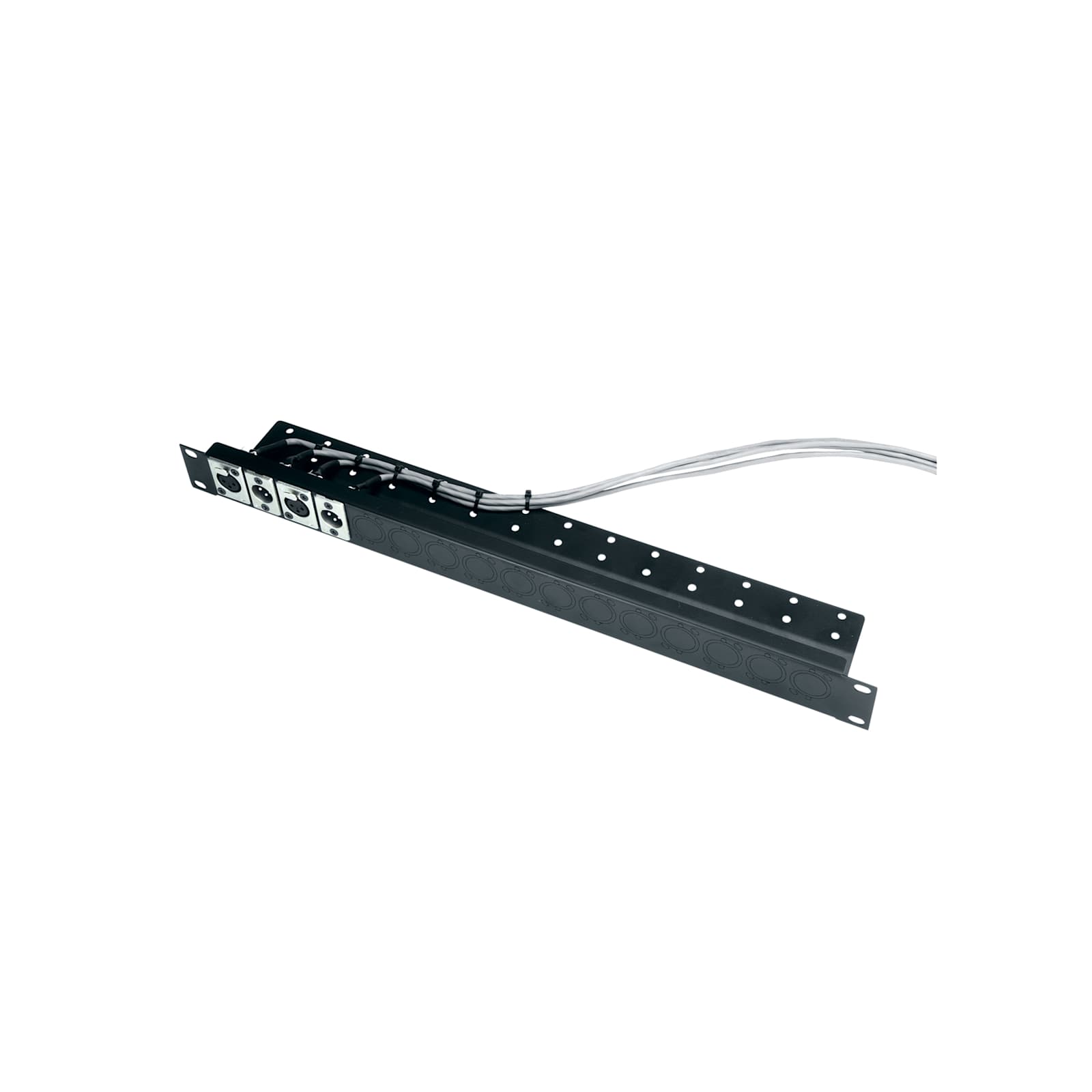

1 RU Universal Connector Panel with Cable Shelf
UNI-1-C$81.00
8 RU Plexi Front Door for Slim 5 Racks
DOP-5-8$765.90
Leveling Feet Isolating
LF-ISO$55.80
Leveling Feet
LF$40.50
Questions about this part
What can I add to this rack frame to secure it or control airflow?
You can install optional removable steel side panels for airflow control or security, and a DOP-5-8 Plexi Front Door can be added to the front.
Is this rack frame suitable for TAA compliant projects?
Yes, this 8 RU Slim 5 Series frame is TAA compliant and is manufactured in the USA.
How much weight can this rack support?
The frame has a UL load capacity of 400 lbs (181.4 kg).
What accessories are needed for floor installation or mobility?
This frame can be outfitted with LF leveling feet or a CBS-5-26R Caster Base for 26 inch deep units, or use a 5WLR/5WL Caster Kit for locking casters.
What do I need to do to install this frame?
The rack arrives in a knockdown, bolt-together configuration. You will need the appropriate tools to assemble the interlocking corner joints and secure the fixed rackrails.
