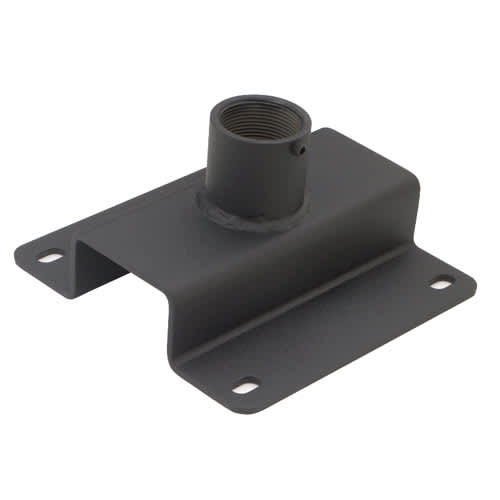

8 Inch (203 mm) Offset Ceiling Plate, TAA Compliant
8-inch offset ceiling plate for projector cable routing, featuring a 1.75-inch offset for flat ceiling installations
The Chief CMA330-G is an 8-inch (203 mm) square ceiling plate designed to facilitate professional projector installations. This offset ceiling plate features a 1.75" (44 mm) high offset, which provides a necessary cable exit when mounting to a flat ceiling surface. By allowing projector cables to be routed through the extension column and out the top of the plate, it ensures clean cable management for high-end AV setups. The assembly attaches to 1.5" NPT threaded extension columns and supports a weight capacity of 500 lbs (226.8 kg). This TAA-compliant component is UL listed, making it suitable for U.S. Government projects that require specific procurement compliance. With an overall height of 2.63" (67 mm), it maintains a low profile while providing essential routing capabilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Plate Size | 8 in (20.3 cm) |
| Depth | 8 in (20.3 cm) |
| Height | 2.6 in (6.6 cm) |
| Overall Dimensions | 2.6" x 8.0" x 8.0" (67 x 203 x 203 mm) |
| Shipping Weight | 5.5 lbs (2.5 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 8 in (20.3 cm) |
| Accessory Type | Ceiling Plates and Adapters |
All other specifications 6
| Application | Ceiling |
| Ceiling Plate Type | Offset |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872163918 |
| Certifications | TAAUL Listed |
Resources
Questions about this part
Will the CMA330-G work for a flat ceiling installation?
Yes, the 1.75" (44 mm) offset is specifically designed to provide a cable exit when mounting to a flat ceiling surface.
What does this ceiling plate attach to?
This offset plate is designed to attach to 1.5" NPT threaded extension columns.
How much weight can this ceiling plate support?
The CMA330-G has a weight capacity of 500 lbs (226.8 kg).
Is the CMA330-G TAA compliant?
Yes, this is a TAA-compliant product, meeting the requirements for U.S. Government projects.
Which document is used for submittals?
For technical submittals, you can refer to the CMA330 Technical Drawing (PDF) or the CMA330 Installation Manual (PDF) available in the resources.
