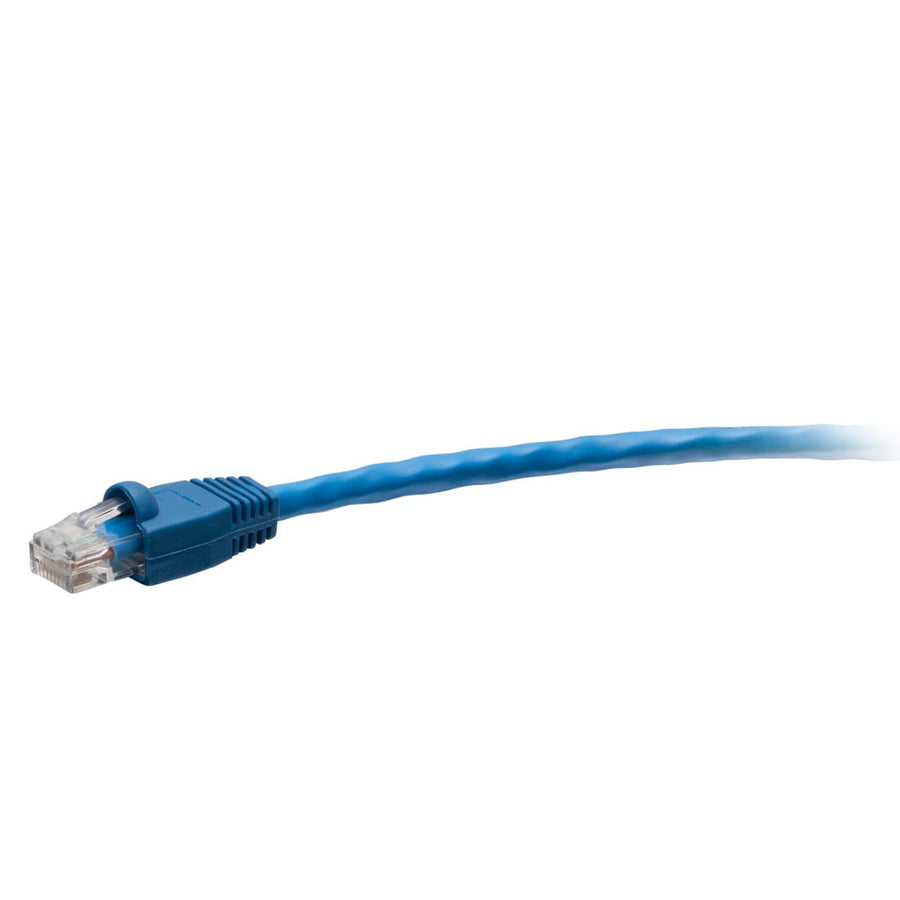

7ft (2.1m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Blue
7ft (2.1m) TAA-compliant Cat6 UTP network cable, blue, with snagless RJ45 connectors
The C2G43450 is a 7 ft (2.1 m) TAA-compliant Cat6 snagless unshielded (UTP) network cable finished in blue. This passive cable is designed for high-performance connectivity in network adapters, hubs, switches, routers, and servers. It is built with high-quality, made in the USA copper conductors with a 24 AWG wire gauge and stranded construction. The cable features 50-micron gold-plated contacts to improve signal integrity and a snagless RJ45 connector design that protects the clips from snapping during high-frequency insertion cycles. This CMR rated, riser-rated cable utilizes a PVC jacket and is designed to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting applications such as 1000BASE-T (1 Gigabit Ethernet) with a 600 MHz maximum frequency. The unshielded twisted pair (UTP) construction is suitable for environments with an operating temperature range of -4° - 167°F (-20° - 75°C). This TAA-compliant solution is approved for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434504 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Trio Combo Module with Cat6 Data
CO1166$119.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
12-Port Blank Keystone/Multimedia Patch Panel
CG03857$25.99
Surface Mount Box 2-Port in White
WP3502WH$2.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
Questions about this part
Is the C2G43450 TAA compliant?
Yes, the C2G43450 is TAA compliant, making it approved for United States government projects and facilities.
What is the maximum frequency for this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency to provide increased performance over standard Cat6 cables.
