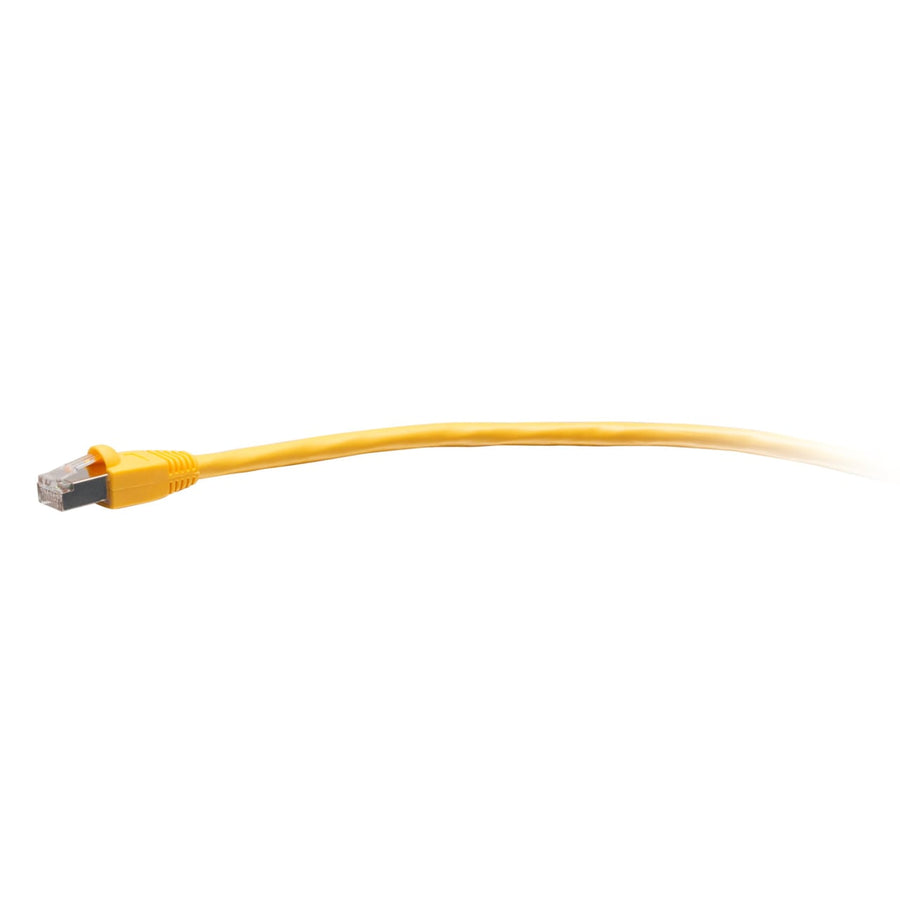

7ft (2.1m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Yellow
7ft TAA-compliant Cat6 shielded STP network cable in yellow, featuring snagless RJ-45 connectors and CMR riser-rated jacket
The C2G43770 is a 7 ft (2.1 m) TAA-compliant Cat6 snagless shielded (STP) network cable designed for high-speed connectivity in environments prone to electromagnetic interference. This passive, yellow patch cable utilizes aluminum foil shielding and stranded copper conductors to mitigate EMI, RFI, and alien crosstalk. It is constructed with high-quality, made in the USA raw cable, ensuring reliable performance for 1000BASE-T (1 Gigabit Ethernet) applications. The cable features a CMR-rated PVC jacket suitable for riser applications and is terminated with RJ-45 male connectors featuring 50-micron gold-plated contacts to maintain signal integrity. The snagless design protects the clips from damage during high-insertion cycles. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it an approved choice for United States government projects and facilities requiring TAA compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437703 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
