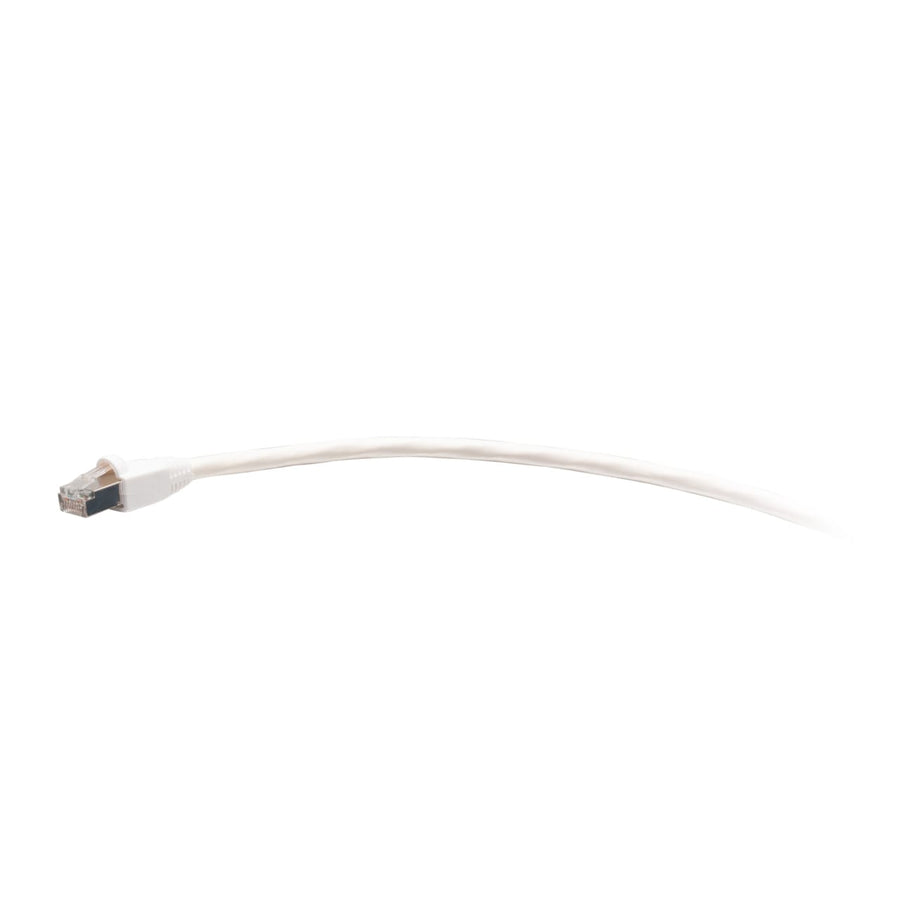

7ft (2.1m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - White
7ft (2.1m) TAA-compliant shielded Cat6 patch cable, 26 AWG stranded copper, snagless RJ-45 connectors, white finish
The C2G43784 is a 7 ft (2.1 m) TAA-compliant F-Series Cat6 snagless shielded (STP) network cable designed for high-speed data environments. This passive cable features a white PVC jacket with a CMR (Riser) rating, making it suitable for vertical applications within building risers. It is constructed with high-quality, made-in-the-USA stranded copper conductors and utilizes 50-micron gold-plated contacts to maintain signal integrity. To combat electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk, the cable incorporates an aluminum foil shield (STP). The snagless RJ-45 male connectors protect the clips from damage, which is essential for hardware requiring frequent insertion cycles, such as switches or routers. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards and is rated for 1000BASE-T (1 Gigabit Ethernet) applications. It is fully TAA-compliant, making it approved for United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437840 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43784 TAA compliant?
Yes, this is a TAA-compliant F-Series cable, making it suitable for use in United States government projects and facilities.
What is the maximum data rate for this Cat6 cable?
This cable meets ANSI/TIA-568.2-D standards and is rated for supporting 1000BASE-T (1 Gigabit Ethernet) applications.
Can this cable be used in a riser installation?
Yes, the PVC jacket is CMR (Riser) rated, allowing for use in vertical pathways between floors.
How does the shielding work on this STP cable?
The cable uses an aluminum foil shield (STP) and stranded copper conductors to protect your network from EMI, RFI, and alien crosstalk.
What do I need for a complete submittal of this cable?
For technical documentation, you can refer to the TAA Compliant F-Series Cat6 Snagless Shielded Network Cable PDF document.
