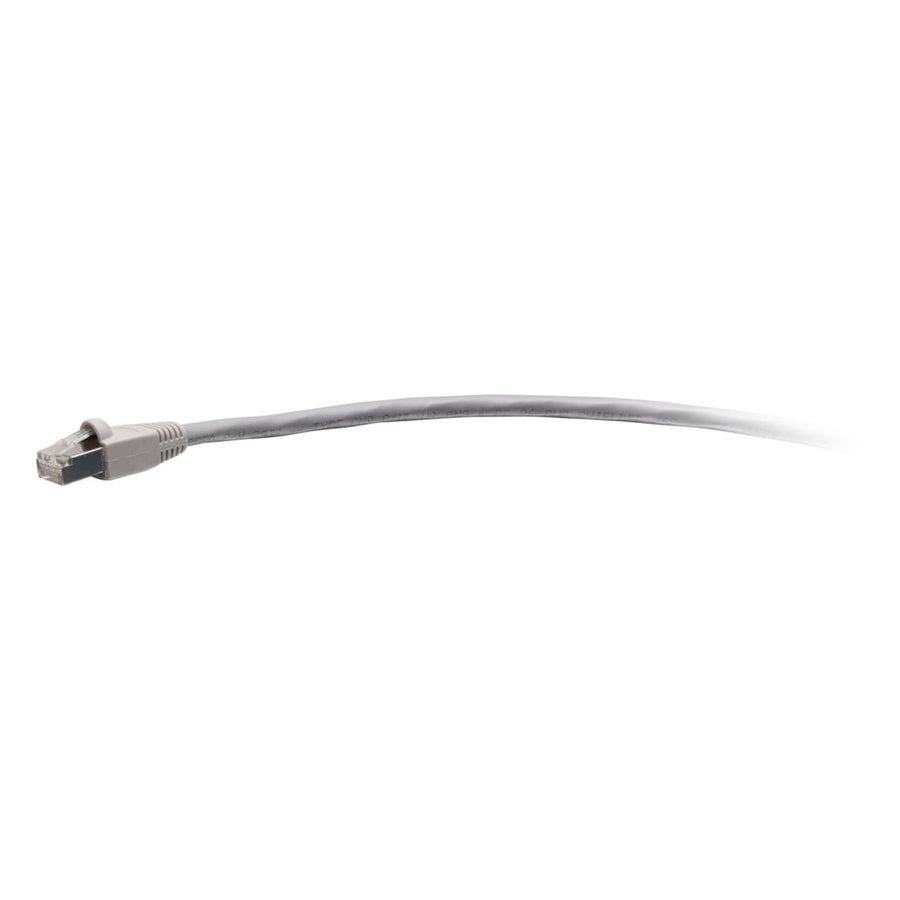

7ft (2.1m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Gray
7ft (2.1m) TAA-compliant Cat6 shielded STP network cable, snagless design, gray, CMR rated
The C2G43714 is a 7 ft (2.1 m) Cat6 shielded STP network cable designed for high-speed network environments requiring protection from EMI, RFI, and alien crosstalk. This TAA-compliant cable is approved for use in United States government projects and facilities. It features a snagless RJ45 connector design to protect the clips from damage during high insertion cycles, making it a reliable choice for switches, routers, servers, and hubs. The cable is constructed with high-quality, made in the USA stranded copper conductors and a PVC jacket. It is CMR rated for riser applications and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards to support 1000BASE-T (1 Gigabit Ethernet) applications. For improved signal integrity, the connectors feature 50-micron gold-plated contacts. This passive cable has a 0.24 in (6 mm) diameter and is designed for reliable performance across an operating temperature range of -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437147 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43714 TAA compliant?
Yes, this cable meets TAA-compliant requirements and is approved for use in United States government projects and facilities.
What type of shielding does this Cat6 cable use?
This is a Shielded STP (Shielded Twisted Pair) cable designed to counter electromagnetic interference (EMI), RFI, and alien crosstalk.
What is the maximum temperature range for this cable?
The operating temperature range for the C2G43714 is -4°F to 167°F (-20°C to 75°C).
Does this cable support 1 Gigabit Ethernet?
Yes, this cable meets or exceeds ANSI/TIA-568.2-D standards for supporting 1000BASE-T (1 Gigabit Ethernet) applications.
What is the difference between this and a standard unshielded cable?
This SKU features aluminum foil shielding and a snagless RJ45 design to protect the clips, whereas unshielded cables lack this EMI/RFI protection.
