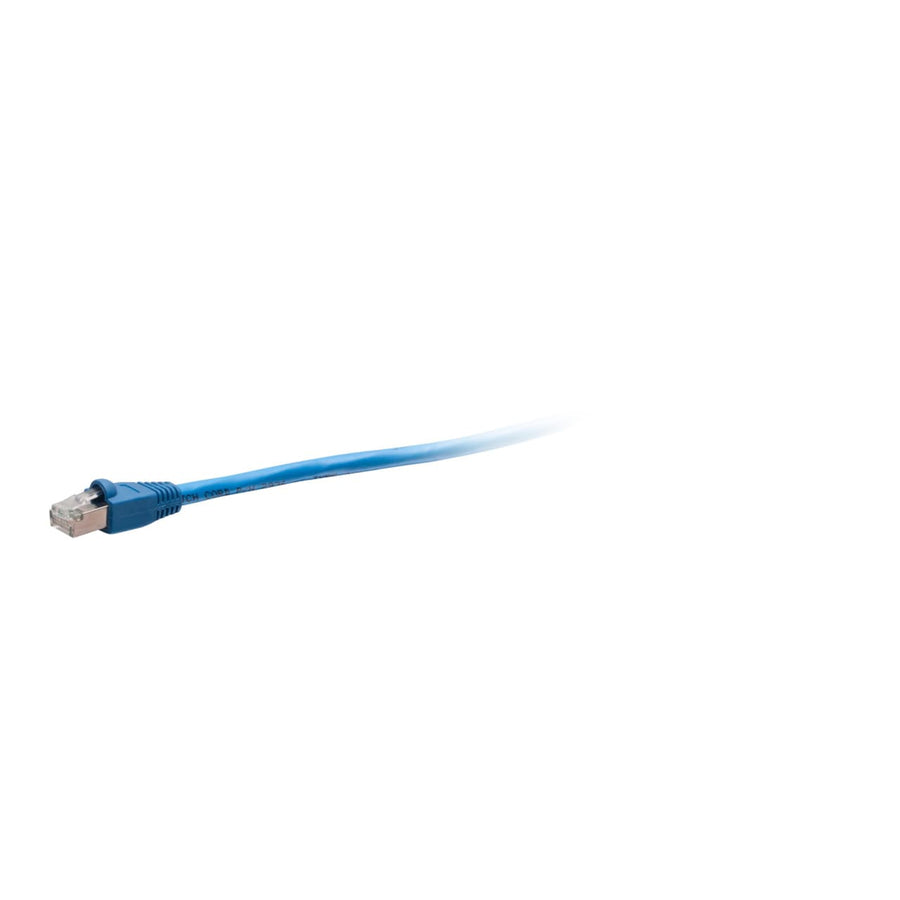

7ft (2.1m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Blue
7ft TAA-compliant Cat6 STP snagless shielded network cable in blue, featuring 26 AWG stranded copper conductors
The C2G43728 is a 7ft (2.1 m) TAA-compliant Cat6 snagless shielded (STP) network cable in blue. Designed to protect high-speed networks from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk, this cable utilizes an aluminum foil shield to maintain signal integrity. It is constructed with high-quality, made-in-the-USA raw stranded copper cabling and features 50-micron gold-plated contacts on the RJ-45 male connectors. The snagless design protects the clips from being snapped off during high insertion cycles, making it suitable for connecting network adapters, hubs, switches, routers, and servers. This passive cable is CMR rated (Riser) and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, supporting applications including 1000BASE-T (1 Gigabit Ethernet). The cable has a 0.24 in (6 mm) diameter and is designed to operate in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437284 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43728 TAA compliant?
Yes, this is a TAA-compliant cable approved for use in United States government projects and facilities.
What is the maximum data rate for this Cat6 cable?
This Cat6 cable meets ANSI/TIA-568.2-D standards and supports applications including 1000BASE-T (1 Gigabit Ethernet).
Does this cable provide shielding against interference?
Yes, the C2G43728 uses Shielded STP (STP) construction with aluminum foil to protect against EMI, RFI, and alien crosstalk.
What is the temperature rating for this cable?
This cable has an operating temperature range of -4°F to 167°F (-20°C to 75°C).
What is the difference between this and other C2G F-Series cables?
This SKU is a blue, 7ft (2.1 m) variant; the F-Series is available in various colors and lengths up to 25ft.
