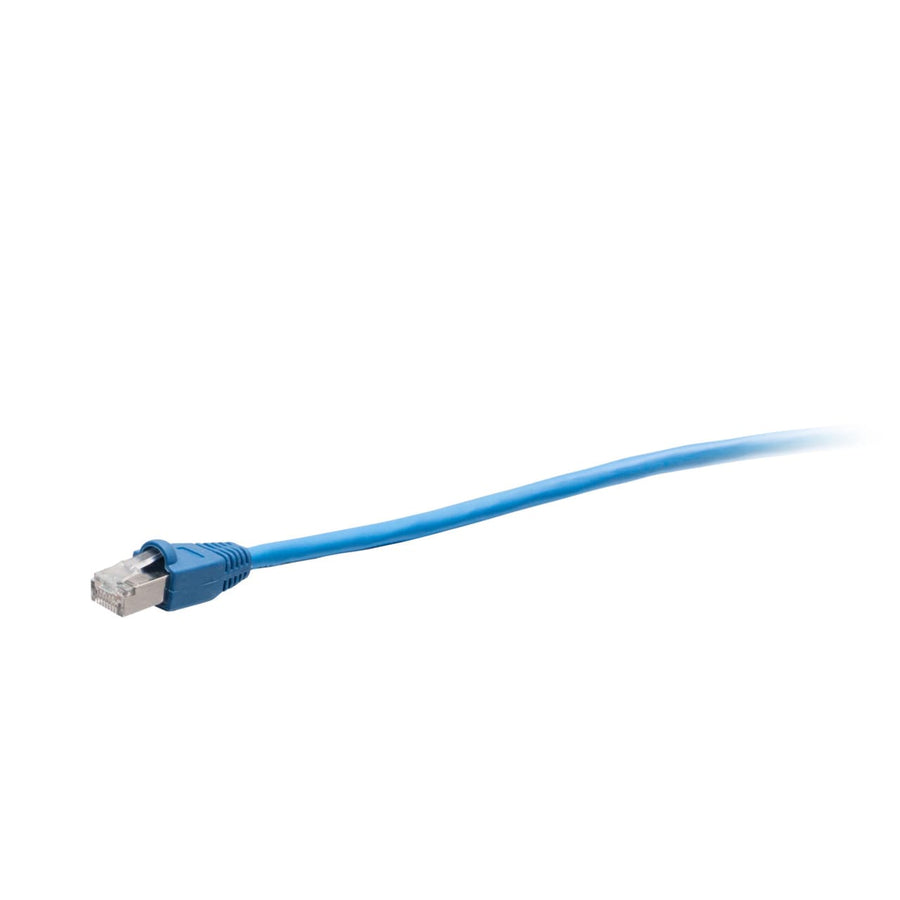

7ft (2.1m) TAA-Compliant F-Series Cat5e Snagless Shielded (STP) Network Cable - Blue
7ft (2.1m) Blue Cat5e shielded STP network cable, TAA-compliant with snagless RJ-45 connectors for high-insertion environments
The C2G43433 is a 7 ft (2.1 m) TAA-compliant Cat5e network patch cable designed for use in United States government projects and facilities. This blue, shielded STP cable features an aluminum foil shield that provides 100% coverage to prevent RFI and EMI from interfering with data transmission, making it an ideal solution for noisy environments. The cable is constructed with high-quality, made-in-the-USA stranded copper conductors and 26 AWG wire gauge. Both RJ-45 male connectors feature 50-micron gold-plated contacts and a snagless design that protects the clips from being snapped off during high-frequency use. This CMR-rated riser cable is made with a PVC jacket and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards for supporting applications like 1000BASE-T (1 Gigabit Ethernet). It is rated for operating temperatures ranging from -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434337 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43433 TAA compliant?
Yes, this cable is TAA-compliant and meets the stringent requirements for use in United States government projects and facilities.
Will this cable work in environments with high electrical noise?
Yes, the shielded STP construction features an aluminum foil shield with 100% coverage to prevent RFI and EMI from affecting data transmission.
What is the maximum operating temperature for this Cat5e cable?
This cable is rated for operating temperatures between -4° to 167°F (-20° to 75°C).
What standards does this network cable meet?
This C2G43433 cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T applications.
What type of installation is this cable suitable for?
As a CMR-rated riser cable, it is suitable for vertical runs in plenum-free environments.
