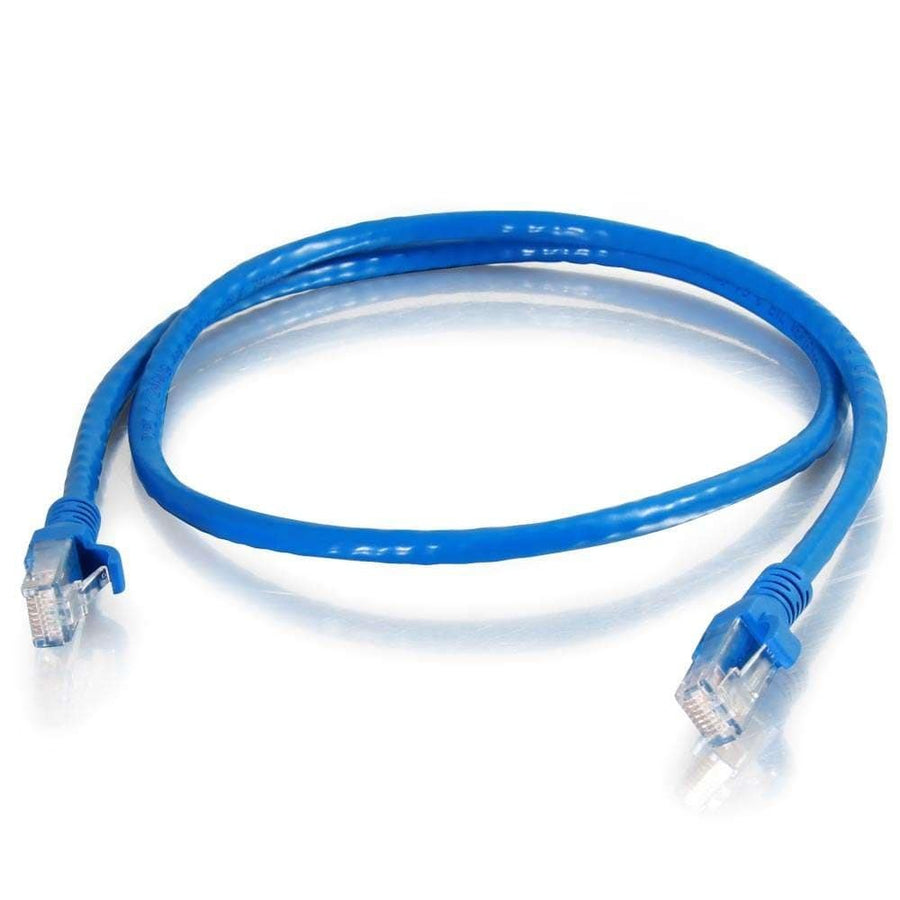

7ft (2.1m) Cat6 Snagless UTP Unshielded Ethernet Network Patch Cable - Blue
7ft Blue Cat6 Unshielded UTP Ethernet patch cable with snagless boots for strain relief
The C2G CG10315 is a 7 ft (2.1 m) Cat6 Unshielded Twisted Pair (UTP) patch cable designed for bandwidth-intensive voice, data, and video distribution. This blue ethernet cable features stranded copper conductors and a 24 AWG wire gauge. The connectors are both RJ-45 male and feature a snagless, booted design to provide strain relief and prevent accidental disconnects during installation. This cable uses a T568B wiring scheme to ensure industry-standard performance for high-speed network applications. This specific model is TAA compliant, meeting the requirements for procurement in environments that necessitate products manufactured in countries on the Trade Agreement Act list. It is also compliant with NDAA 889, RoHS, REACH, TSCA, Prop 65, and UL standards. The cable is finished with a PVC jacket and a 0.24 in (6.2 mm) diameter, making it suitable for high-density networking environments where color-coding is used to organize cabling.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
All other specifications 13
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120103158 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Trio Combo Module with Cat6 Data
CO1166$119.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
Surface Mount Box 2-Port in White
WP3502WH$2.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
Questions about this part
Is the C2G CG10315 TAA compliant?
Yes, this cable is TAA compliant and meets NDAA 889 requirements for secure installations.
What is the wiring scheme for this Cat6 cable?
The CG10315 uses the T568B wiring scheme for its RJ-45 connections.
What type of shielding does this cable have?
This is a UTP (Unshielded Twisted Pair) cable, meaning it is unshielded.
What is the diameter of the CG10315 cable?
The cable has a diameter of 0.24 in (6.2 mm).
Does this cable come with a warranty?
Yes, this C2G patch cable is covered by a Lifetime warranty.
