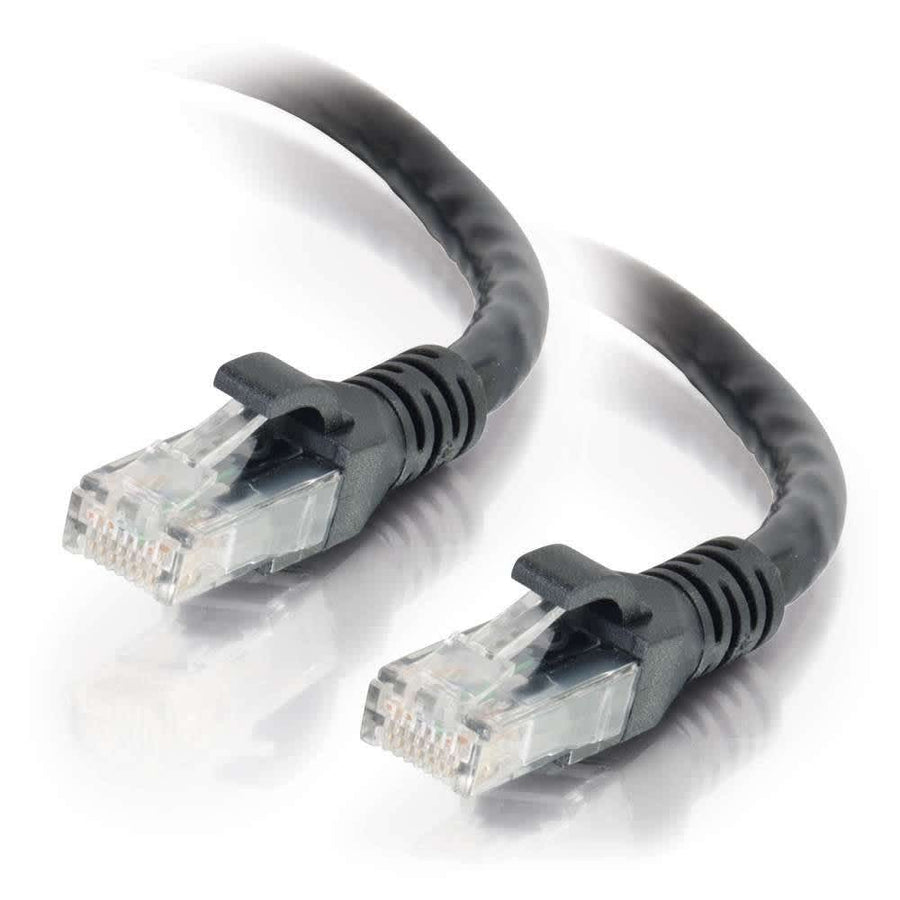

7ft (2.1m) Cat6 Snagless UTP Unshielded Ethernet Network Patch Cable - Black
7ft (2.1m) Cat6 Unshielded UTP patch cable, black finish, with snagless boots for strain relief
The C2G CG10293 is a 7 ft (2.1 m) Cat6 Unshielded UTP Ethernet network patch cable designed for high-bandwidth voice, data, and video distribution. This cable is TAA compliant, making it suitable for projects requiring products manufactured in countries on the Trade Agreement Act list. It is constructed with 24 AWG stranded copper conductors and features a shortened body plug to minimize Near-End Crosstalk (NEXT) levels. To protect against damage during installation and provide extra strain relief, the cable utilizes molded, snagless boots. The black PVC jacket is standard/non-rated and follows a T568B wiring scheme. This series offers multiple color options for easy network color-coding and is available in various lengths to suit specific installation requirements.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
All other specifications 13
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120102939 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
Cable Management Strap - 12 Piece
TW12$25.20
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
Questions about this part
Is the C2G CG10293 TAA compliant?
Yes, this cable is TAA compliant and meets the stringent requirements for procurement in countries on the Trade Agreement Act list.
What is the wiring scheme for this patch cable?
The CG10293 uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
What accessories are compatible with this Cat6 cable?
This cable can be used with various components like the CG37199 24-Port Cat6 110-Type Patch Panel or the WP3506WH 6-Port Surface Mount Box.
Does this cable include strain relief?
Yes, the cable features molded, snagless boots designed to provide extra strain relief and prevent unwanted snags during installation.
Is this a shielded or unshielded cable?
The CG10293 is an Unshielded Twisted Pair (UTP) cable with a standard/non-rated PVC jacket.
