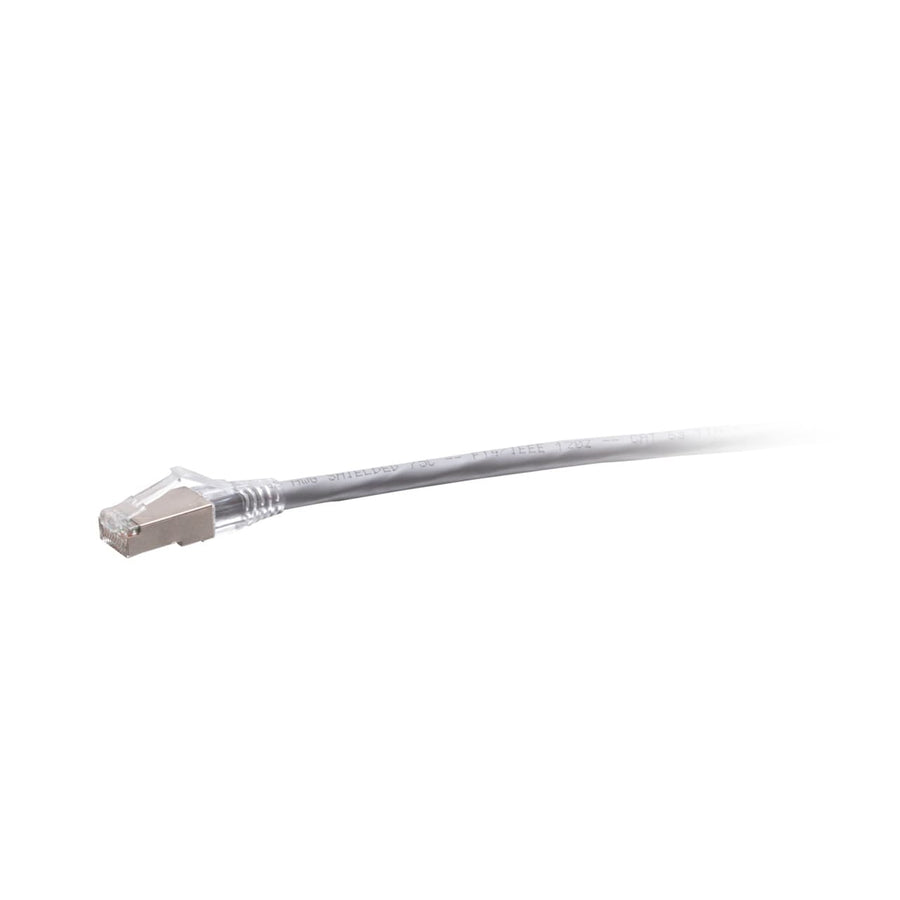

75ft (22.8m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Gray
75ft TAA-Compliant Cat6a shielded STP network cable with snagless RJ45 connectors for 10GBase-T applications
The C2G43810 is a 75ft (22.9 m) TAA-Compliant Cat6a Snagless Shielded (STP) Network Cable designed to meet the rigorous requirements of United States government projects and facilities. This passive, gray patch cable is engineered for high-speed 10GBase-T ports and equipment, including network adapters, switches, routers, hubs, and patch panels. It is built to protect 10 Gigabit network connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. This cable uses high-quality, made in the USA copper cabling with an aluminum foil shield and 50-micron gold-plated contacts to improve signal integrity. The snagless RJ45 connector design protects the clips from being snapped off during high insertion cycles. It is a CMR rated, riser-rated cable with a PVC jacket and is compliant with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It operates in temperatures ranging from -4° - 167°F (-20° - 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 75 ft (22.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 1.88 lbs (0.9 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438106 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43810 TAA compliant?
Yes, this cable is TAA-Compliant and meets requirements for United States government projects and facilities.
What is the maximum data rate for this Cat6a cable?
This cable is designed to support 10GBase-T (10 Gigabit Ethernet) applications, providing high bandwidth for voice, data, and video distribution.
Does this cable require additional shielding?
No, the C2G43810 features integrated Shielded STP construction with an aluminum foil shield to protect against EMI and RFI.
What is the operating temperature range for this cable?
This cable is rated for operation in temperatures from -4°F to 167°F (-20°C to 75°C).
Which standards does this Cat6a cable meet?
This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
