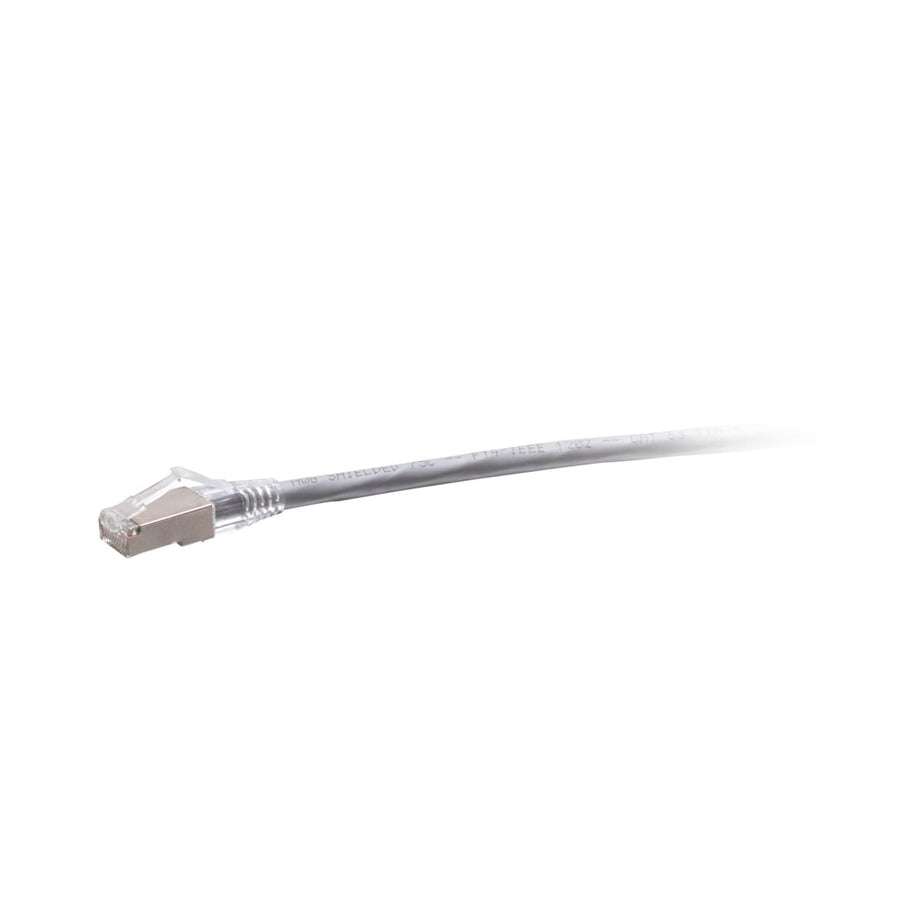

6in (0.15m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Gray
6in (0.15m) TAA-compliant Cat6a shielded STP patch cable in Gray, designed for 10GBase-T high-speed network connections
The C2G43791 is a 6in (0.15m) TAA-compliant Cat6a Snagless Shielded (STP) Network Cable in Gray. This passive cable is constructed with high-quality, made in the USA copper stranded conductors and features a 26 AWG wire gauge. Designed to protect high-speed 10 Gigabit network connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk, this cable uses aluminum foil shielding (STP) to maintain signal integrity in bandwidth-intensive environments. The cable features 50-micron gold-plated contacts and a snagless RJ-45 male to male connector design, which protects the clips from damage during frequent insertion cycles. This CMR rated riser cable with a PVC jacket is compliant with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It is TAA compliant and suitable for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.03 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437918 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43791 TAA compliant?
Yes, this C2G43791 Cat6a cable is TAA compliant, making it approved for use in United States government projects and facilities.
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, this shielded STP cable is designed for 10GBase-T ports and equipment, including network adapters, switches, routers, and patch panels.
What is the jacket rating for this cable?
This cable features a PVC jacket with a CMR (Riser) rating for standard installation applications.
What is the wiring scheme for this C2G43791 cable?
This cable is wired using the T568B scheme and uses a 26 AWG stranded copper conductor.
Can this cable be used in high-interference environments?
Yes, the shielded STP construction and aluminum foil shield are designed to counter EMI, RFI, and alien crosstalk.
