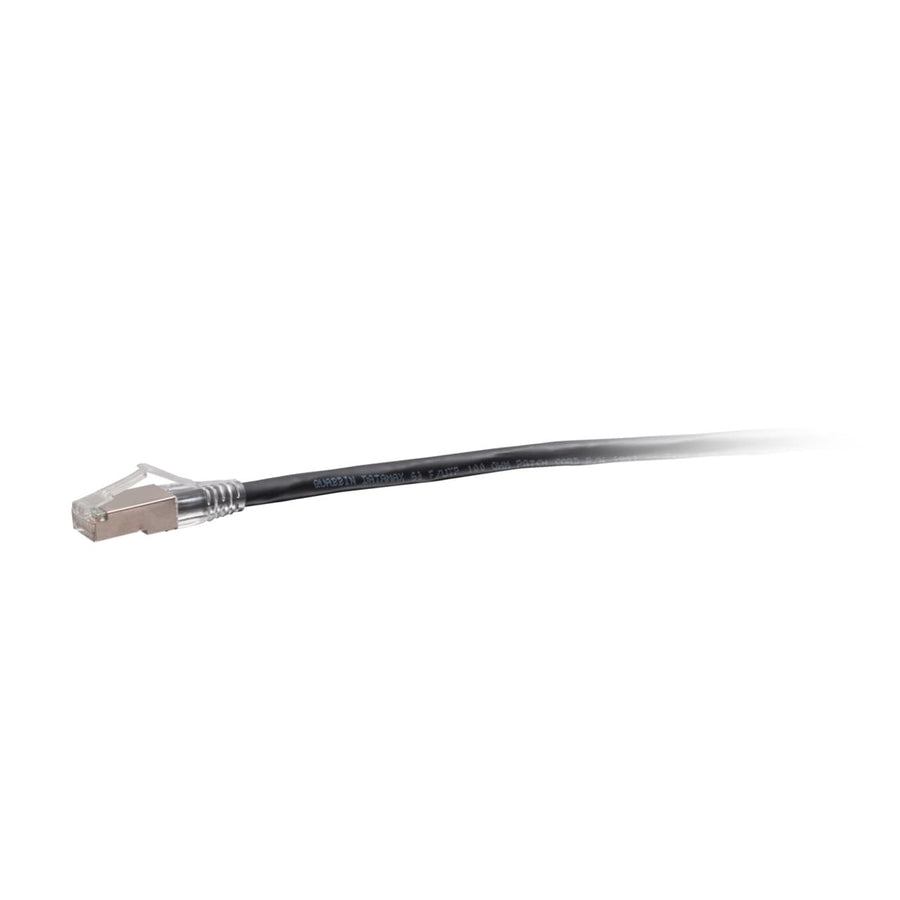

6in (0.15m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Black
6in (0.15m) TAA-compliant Cat6a snagless shielded STP network cable, black, for 10GBase-T equipment
The C2G43833 is a 0.5 ft (0.2 m) TAA-compliant Cat6a snagless shielded STP network cable designed for high-speed 10GBase-T connectivity. This passive cable is constructed with high-quality, made-in-the-USA copper cabling and features stranded conductors to ensure consistent and reliable performance. It is specifically engineered to protect 10 Gigabit network connections from noise, electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. The cable features a snagless RJ45 connector design, which protects the clips from being snapped off during high-frequency insertion cycles. For enhanced signal integrity, the connectors are equipped with 50-micron gold-plated contacts. This CMR-rated, riser-application cable uses a PVC jacket and is designed to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. This black, snagless shielded STP cable is an ideal solution for connecting network adapters, hubs, switches, routers, modems, and patch panels in environments requiring strict TAA compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.03 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438335 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
Questions about this part
Is the C2G43833 TAA compliant?
Yes, the C2G43833 is TAA compliant and is approved for use in United States government facilities and projects.
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, this cable meets or exceeds ANSI/TIA-568.2-D standards for supporting 10GBASE-T (10 Gigabit Ethernet) applications.
What is the purpose of the snagless connector on this cable?
The snagless RJ45 design is intended to protect the connector clips from being snapped off, which is beneficial in applications involving high insertion cycles.
Can this cable be used for 10GBase-T equipment like switches and routers?
Yes, this shielded STP cable is ideal for use with 10GBase-T ports and equipment, including switches, routers, and patch panels.
What is the jacket rating for this network cable?
This cable features a PVC jacket with a CMR (Riser) rating for indoor installation.
