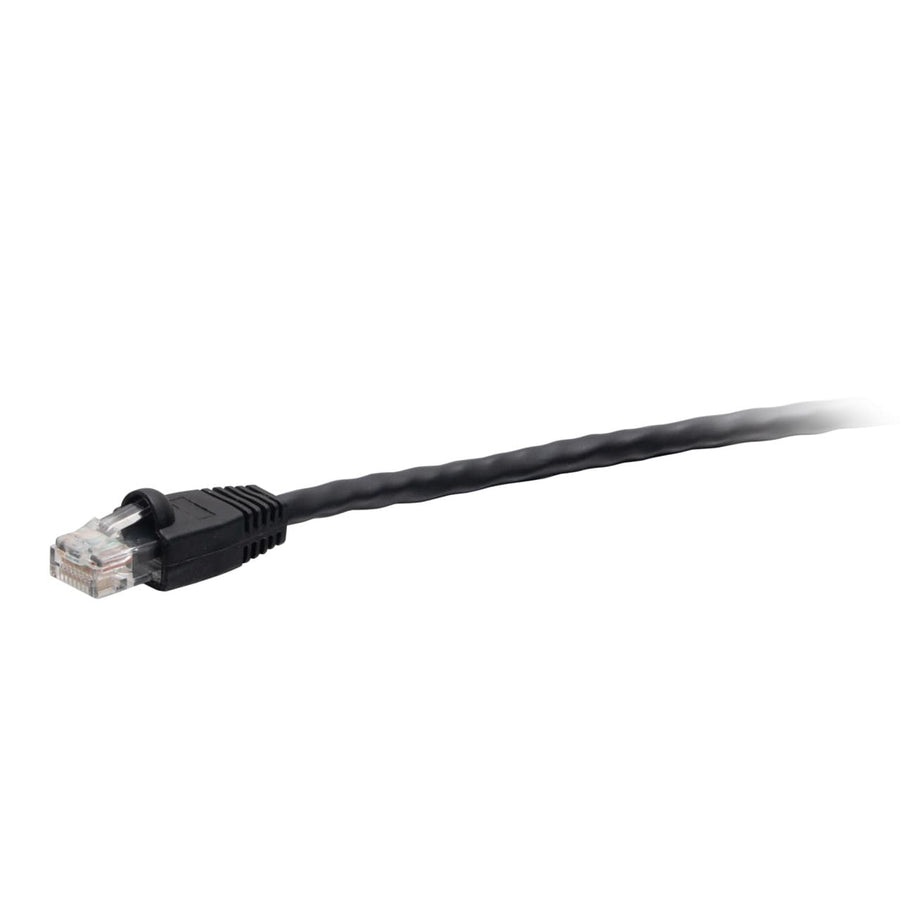

6in (0.15m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Black
6in (0.15m) TAA-compliant Cat6 UTP network cable, black finish, with snagless RJ45 connectors
The C2G43464 is a 6in (0.15m) Cat6 Unshielded Twisted Pair (UTP) network cable designed to meet stringent TAA-compliant requirements for United States government projects and facilities. This passive cable features a snagless RJ45 male to RJ45 male configuration, utilizing 50-micron gold-plated contacts to ensure signal integrity. The snagless boot design protects the clips from damage during high-insertion cycle applications and provides added strain relief. Constructed with high-quality, made in the USA stranded copper conductors and a 24 AWG wire gauge, this cable supports 1000BASE-T (1 Gigabit Ethernet) applications and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. The black PVC jacket is CMR (Riser) rated for indoor use, and the cable maintains performance with a 600 MHz maximum frequency. This TAA-compliant solution is built for connecting network adapters, hubs, switches, routers, and servers in professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434641 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43464 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable approved for use in United States government projects and facilities.
What is the maximum frequency and speed of this Cat6 cable?
This Cat6 UTP cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency.
What type of jacket rating does this cable have?
The C2G43464 features a PVC jacket with a CMR (Riser) rating for indoor installation.
What is the wiring scheme for this C2G network cable?
This cable uses the T568B wiring scheme and features 24 AWG stranded copper conductors.
Does the C2G43464 have a lifetime warranty?
Yes, this product is backed by a lifetime warranty for reliable, long-term performance.
