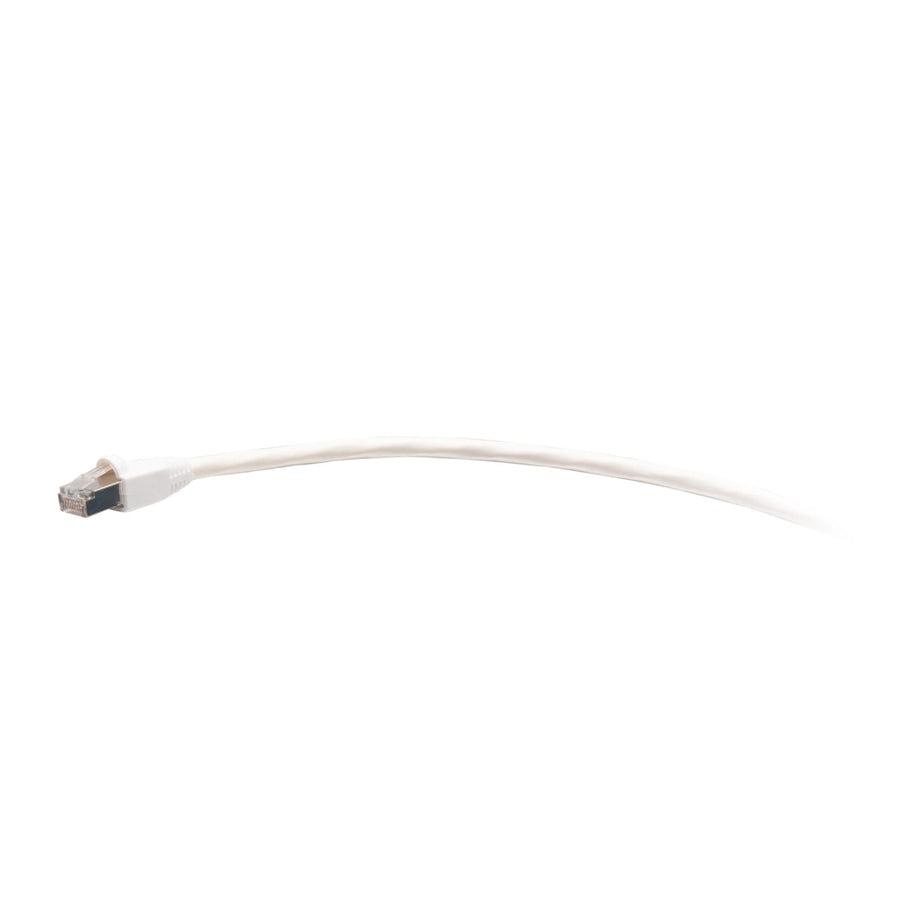

6in (0.15m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - White
White TAA-compliant Cat6 STP patch cable, 0.5 ft (0.2 m) length, featuring snagless RJ-45 connectors
The C2G43777 is a 0.5 ft (0.2 m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable in white. This passive patch cable is built for high-speed network environments requiring protection from EMI, RFI, and alien crosstalk. It features stranded copper conductors and a 26 AWG wire gauge to support 1000BASE-T (1 Gigabit Ethernet) applications. This cable is constructed with made-in-the-USA raw cable, utilizing an aluminum foil shield (STP) to ensure reliable performance in high-interference settings. The snagless RJ-45 male connectors include 50-micron gold-plated contacts to maintain signal integrity and a specialized design that protects the clips from snapping during high insertion cycles. Rated as CMR (Riser) with a PVC jacket, this cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. This SKU is TAA compliant, making it suitable for United States government projects and facilities requiring specific supply chain compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437772 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43777 TAA compliant for government contracts?
Yes, this is a TAA-Compliant F-Series cable specifically approved for use in United States government projects and facilities.
What is the maximum data rate for this Cat6 cable?
This Cat6 cable meets ANSI/TIA-568.2-D standards to support 1000BASE-T (1 Gigabit Ethernet) applications.
What type of shielding does this cable use?
The C2G43777 uses Shielded STP (Screened Twisted Pair) with aluminum foil shielding to counter electromagnetic interference.
Will the connector clips break during installation?
The snagless RJ-45 design protects the clips from being snapped off, making it ideal for applications with high insertion cycles.
What is the jacket rating for this cable?
This cable features a PVC jacket with a CMR (Riser) rating for indoor use.
