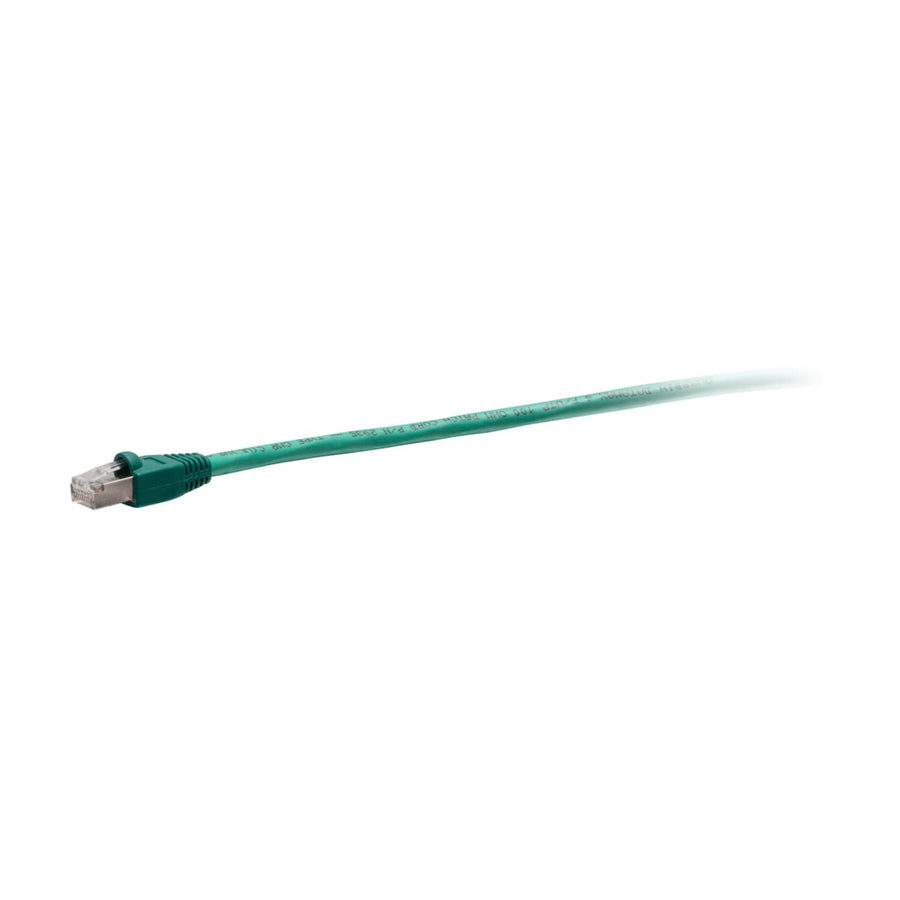

6in (0.15m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Green
6in TAA-compliant Cat6 shielded STP network cable in green with snagless RJ45 connectors
The C2G43735 is a 6in (0.15m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable in green. This passive network cable is engineered to meet stringent TAA compliance requirements, making it approved for use in United States government projects and facilities. It features a shielded STP construction with an aluminum foil shield designed to counter EMI, RFI, and alien crosstalk, protecting high-speed networks from noise and electromagnetic interference. The cable uses 26 AWG stranded copper conductors and is built with a PVC jacket that is CMR rated for riser applications. For improved signal integrity, the RJ-45 male connectors feature 50-micron gold-plated contacts. The snagless design protects the clips from being snapped off during high-frequency insertion cycles. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T (1 Gigabit Ethernet) applications for switches, routers, servers, and hubs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437352 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43735 TAA compliant?
Yes, this is a TAA-compliant cable approved for United States government projects and facilities.
What is the maximum speed and standard for this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
How does the shielding protect my network connection?
The STP (Shielded Twisted Pair) construction uses an aluminum foil shield to defend against EMI, RFI, and alien crosstalk.
What is the termination and wiring configuration?
This cable features RJ-45 male connectors using the T568B wiring scheme.
Is this cable suitable for riser installations?
Yes, this cable features a CMR rated PVC jacket designed for riser applications.
