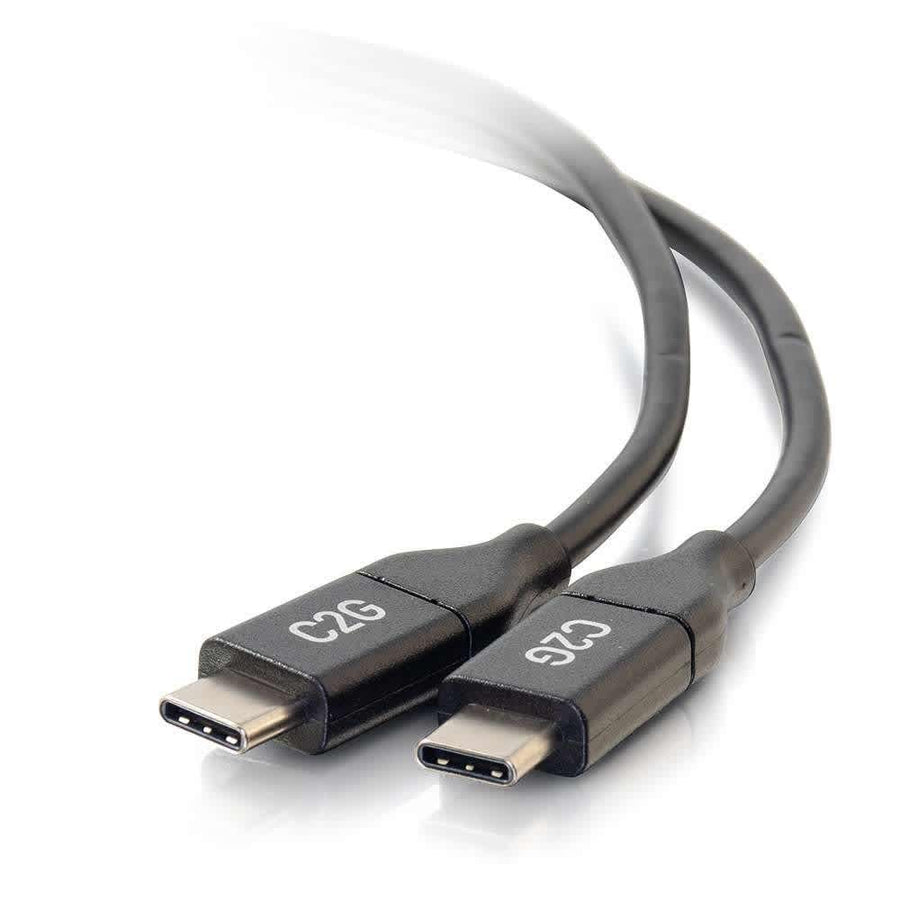

6ft (1.8m) USB-C to C 2.0 Male to Male Cable (5A)
6ft (1.8m) USB-C to C 2.0 Male to Male Cable (5A) for high-speed data transfer and 5A charging
The C2G CG28828 is a 6 ft (1.8 m) USB-C to C 2.0 Male to Male Cable designed for high-speed charging and bidirectional data transfer. Supporting a 5A charging output, this cable is built to ensure laptops, tablets, and smartphones are powered efficiently. It is compatible with Apple®, Microsoft® Surface®, and other major mobile devices. This USB cable utilizes USB 2.0 technology to deliver data transfer rates up to 480 Mbps. The symmetrical USB-C connectors allow for reversible insertion, reducing port wear and preventing damage during use. Construction features a 0.15 in (3.8 mm) diameter PVC jacket and a 1.5 in (38 mm) minimum bend radius. This cable is suitable for operation in environments ranging from 32° to 122°F (0° to 50°C) with non-condensing humidity between 15% and 85% RH. The cable uses 30 AWG wire and is designed for bidirectional signal transmission.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 5 Amp |
| Bend Radius | 1.5 in (38 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.15 lbs (0.1 kg) |
All other specifications 21
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 85% RH (Non-Condensing) |
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Wire Gauge | 30 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB-C Male(1) USB-C Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120288282 |
| Video Input Support | USB-C |
| Video Output Support | USB-C |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
0.5ft (0.15m) USB-C® Female to USB-A Male SuperSpeed USB 5Gbps Adapter Converter
CG54428$22.99
10ft (3m) USB-C to C 2.0 Male to Male Cable (5A)
CG28829$32.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
USB-C® Male to USB-A Female Adapter Converter - USB 3.2 Gen 1 (5Gbps)
C2G29515$17.99
USB-C® 12-in-1 Triple Display Docking Station with HDMI®, DisplayPort™, Ethernet, USB (TAA Compliant)
C2G54535Discontinued
Questions about this part
What is the maximum data transfer speed of the CG28828?
This USB-C cable supports data transfer rates up to 480 Mbps using USB 2.0 technology.
Can this cable be used for fast charging?
Yes, the CG28828 is rated for 5A charging, making it suitable for powering laptops and tablets efficiently.
Is this cable compatible with Apple or Microsoft Surface devices?
The cable is designed to work with Apple®, Microsoft® Surface®, and other leading USB-C enabled laptops and tablets.
What are the operating temperature limits for this cable?
The cable is rated for operating temperatures between 32°F and 122°F (0°C to 50°C).
Does this cable support video output?
The record indicates both USB-C video input and output support for this cable.
