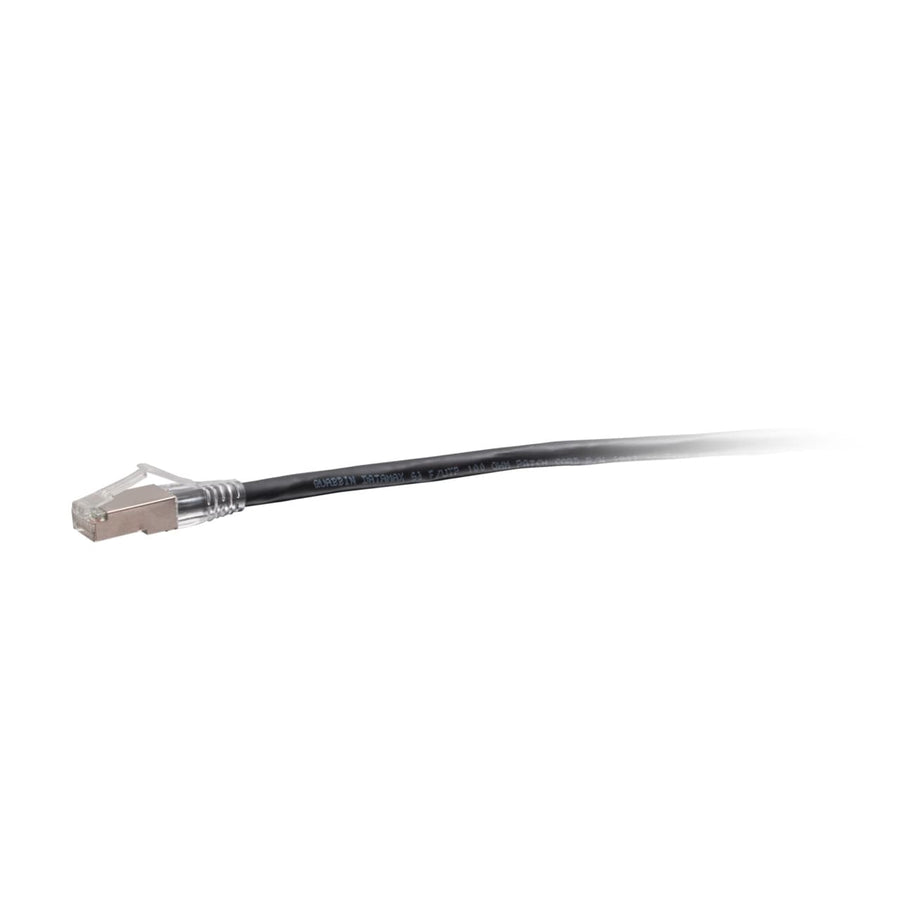

6ft (1.8m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Black
6ft TAA-compliant Cat6a snagless shielded (STP) network cable, black, for high-speed 10GBASE-T applications
The C2G43839 is a 6ft (1.8 m) TAA-compliant Cat6a snagless shielded (STP) network cable in black, engineered to meet the rigorous requirements of United States government projects and facilities. This passive cable is designed for high-speed 10GBASE-T ports and equipment, including network adapters, hubs, switches, routers, and patch panels. By utilizing shielded STP construction with an aluminum foil shield, this cable protects 10 Gigabit network connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It is built with high-quality, made-in-the-USA copper conductors with stranded construction and features 50-micron gold-plated contacts to maintain signal integrity. This CMR rated, riser-rated PVC jacket cable follows the ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, making it suitable for bandwidth-intensive voice, data, and video distribution applications. The snagless RJ45 connector design protects the clips from accidental breakage during high-frequency insertion cycles.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438397 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43839 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable approved for United States government projects and facilities.
What type of shielding does the C2G43839 use?
The C2G43839 features Shielded STP (Shielded Twisted Pair) construction with an aluminum foil shield to counter EMI, RFI, and alien crosstalk.
Will this cable support 10 Gigabit Ethernet?
Yes, this Cat6a cable is designed for 10GBASE-T ports and bandwidth-intensive applications, meeting ANSI/TIA-568.2-D standards.
What is the jacket rating for this cable?
This cable features a CMR rated, riser-rated PVC jacket suitable for in-wall applications.
Does this cable include snagless connectors?
Yes, the C2G43839 uses a snagless RJ45 connector design to protect the clips from snapping off during installation or frequent use.
