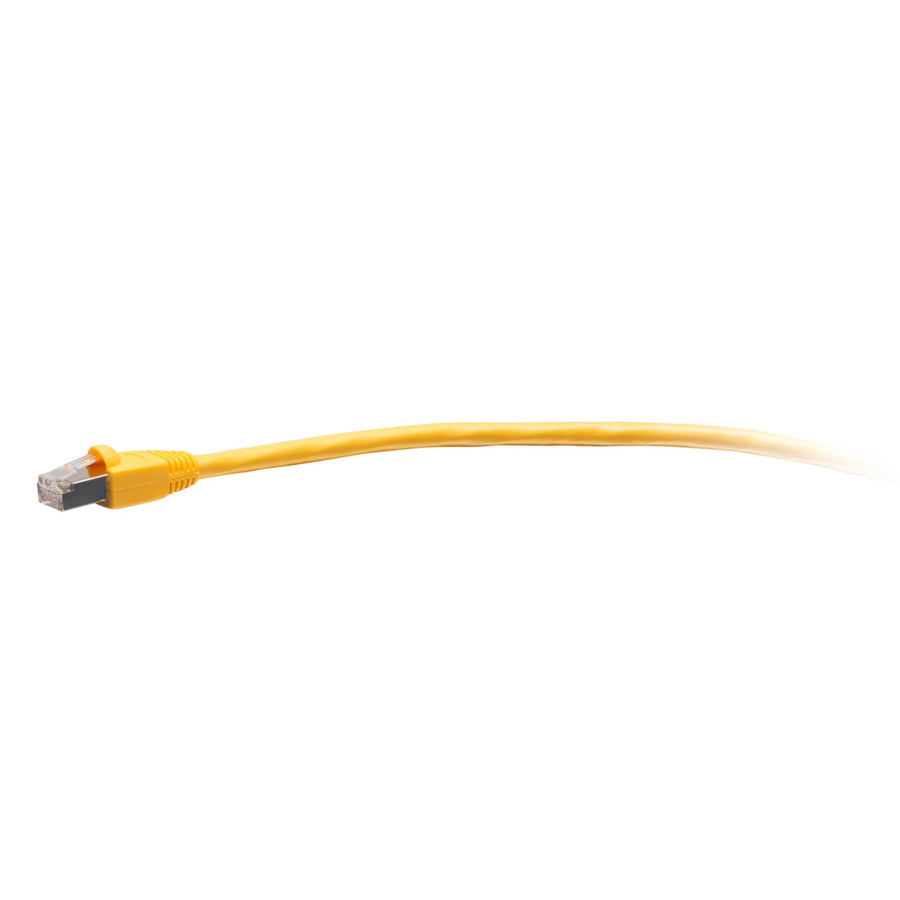

6ft (1.8m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Yellow
Yellow 6ft (1.8m) TAA-Compliant Cat6 STP snagless patch cable, shielded for EMI/RFI protection
The C2G43769 is a 6ft (1.8m) TAA-Compliant Cat6 Snagless Shielded (STP) Network Cable in yellow. This passive Cat6 patch cable is designed for use in high-speed network environments where protecting the signal from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk is critical. It features a shielded STP construction with an aluminum foil shield to maintain signal integrity in noisy environments. This cable is built with high-quality, made-in-the-USA copper stranded conductors and 50-micron gold-plated contacts. The snagless RJ45 connector design protects the clips from being snapped off, which is particularly beneficial in applications with high insertion cycles. This CMR rated, riser-rated cable is approved for use in United States government projects and facilities due to its TAA compliance. It is suitable for connecting network adapters, hubs, switches, routers, and servers, meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards for 1000BASE-T (1 Gigabit Ethernet) applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437697 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43769 TAA compliant for government use?
Yes, this F-Series Cat6 cable is TAA-compliant and approved for use in United States government projects and facilities.
What type of shielding does this Cat6 cable provide?
The C2G43769 features Shielded STP (Shielded Twisted Pair) construction with an aluminum foil shield to counter EMI, RFI, and alien crosstalk.
Will the connectors break if they are frequently plugged and unplugged?
The snagless RJ45 connector design is specifically engineered to protect the clips from snapping off, making it ideal for environments with high insertion cycles.
What is the wiring scheme for this yellow patch cable?
This cable uses the T568B wiring scheme and is constructed with 26 AWG copper stranded conductors.
Is this cable suitable for installation in walls?
Yes, this is a CMR rated, riser-rated cable with a PVC jacket, making it suitable for riser applications.
