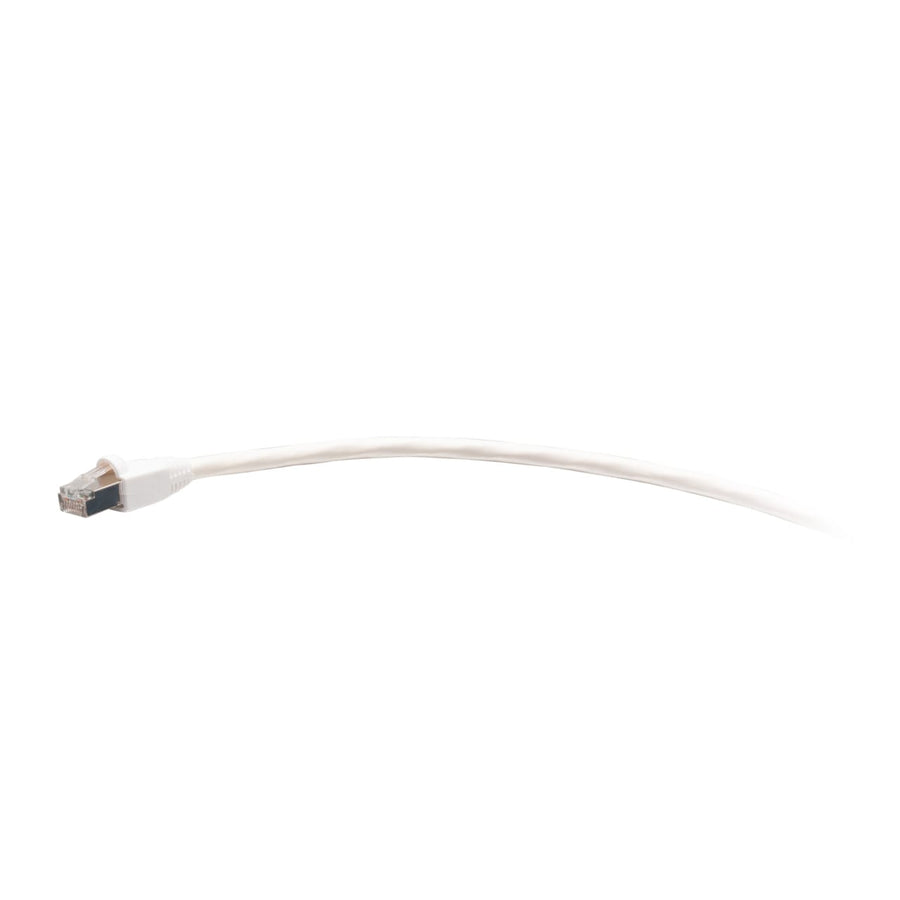

6ft (1.8m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - White
White 6ft Cat6 Snagless Shielded STP network cable, TAA-compliant and CMR rated for high-speed data transmission
The C2G43783 is a 6ft (1.8m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable in White, engineered to meet the strict requirements of United States government projects and facilities. This passive, stranded copper cable utilizes an aluminum foil shield to protect high-speed networks from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It features a snagless RJ-45 male connector design with 50-micron gold-plated contacts to ensure signal integrity and prevent the clips from snapping off during frequent insertion cycles. Rated for CMR applications, this Riser-rated cable is constructed with high-quality, made-in-the-USA raw cable to provide consistent, reliable performance for 1000BASE-T (1 Gigabit Ethernet) applications. It is suitable for connecting network adapters, hubs, switches, routers, and servers. The cable uses a T568B wiring scheme and complies with ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437833 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43783 TAA compliant?
Yes, this F-Series Cat6 cable is TAA compliant and approved for use in United States government projects and facilities.
What is the maximum operating temperature for this cable?
This cable is rated for operating temperatures ranging from -4° to 167°F (-20° to 75°C).
What type of shielding does this Cat6 cable use?
The C2G43783 uses Shielded STP (Screened Twisted Pair) construction to protect against electromagnetic interference and alien crosstalk.
What is the termination standard for the RJ-45 connectors?
This cable is wired using the T568B wiring scheme for standard network connectivity.
What documents are available for submittals for the C2G43783?
A technical PDF for the TAA Compliant F-Series Cat6 Snagless Shielded Network Cable is available in the resources section.
