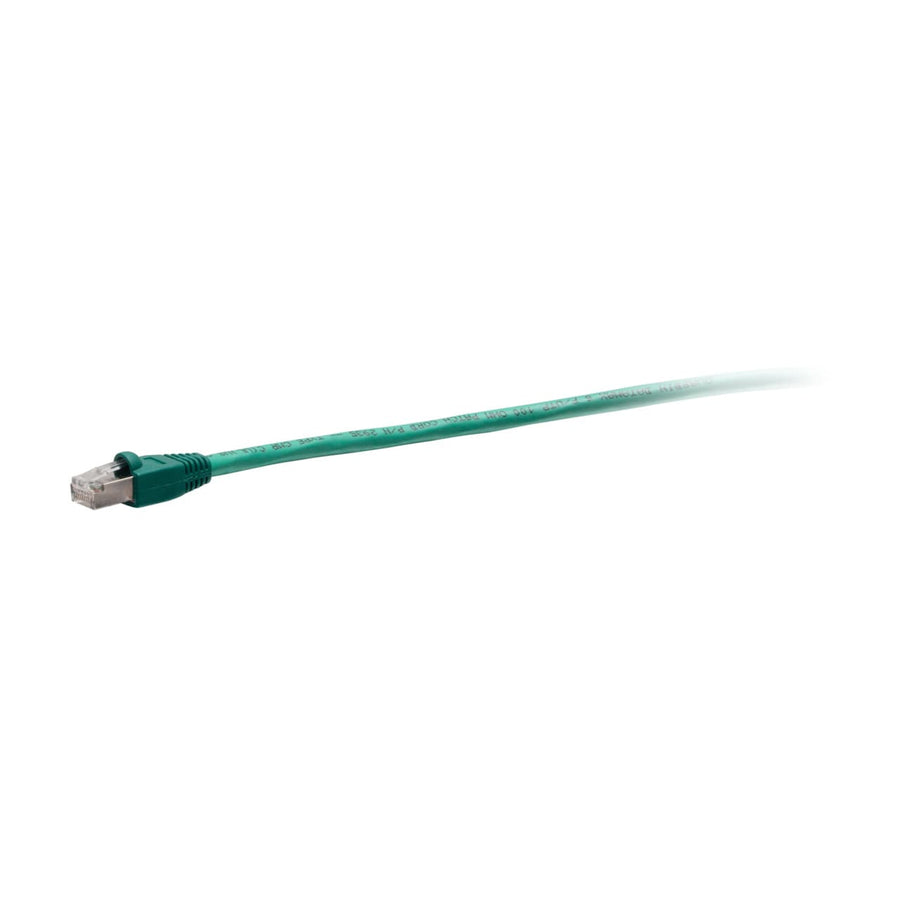

6ft (1.8m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Green
6ft Green Cat6 STP snagless shielded network cable, TAA-compliant, with copper conductors and CMR rating
The C2G43741 is a 6 ft (1.8 m) TAA-compliant F-Series Cat6 snagless shielded (STP) network cable in green. Engineered to meet the strict requirements of United States government projects and facilities, this cable is specifically designed for use in high-security or regulated environments where TAA compliance is mandatory. It utilizes high-quality, made-in-the-USA copper stranded conductors to provide reliable, consistent performance for 1000BASE-T (1 Gigabit Ethernet) applications. The aluminum foil shield provides STP (Shielded Twisted Pair) protection, which is essential for countering EMI, RFI, and alien crosstalk in environments with high electromagnetic interference. Each RJ-45 male connector features 50-micron gold-plated contacts to maintain signal integrity and includes a snagless design to protect the clips from breakage during high-frequency insertion cycles. This CMR-rated riser cable features a PVC jacket and operates within a temperature range of -4°F to 167°F (-20°C to 75°C). It meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437413 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is this C2G43741 cable TAA compliant?
Yes, this cable is TAA-compliant and meets the specific requirements for use in United States government projects and facilities.
What is the maximum performance rating for this Cat6 cable?
This cable meets or exceeds ANSI/TIA-568.2-D standards and supports 1000BASE-T (1 Gigabit Ethernet) applications.
Can this cable be used in riser applications?
Yes, this is a CMR rated cable, making it suitable for riser jacket applications.
How does the shielding protect my network connection?
The STP (Shielded Twisted Pair) construction uses an aluminum foil shield to protect against EMI, RFI, and alien crosstalk.
What is the operating temperature range for this green cable?
The cable is rated to operate in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
