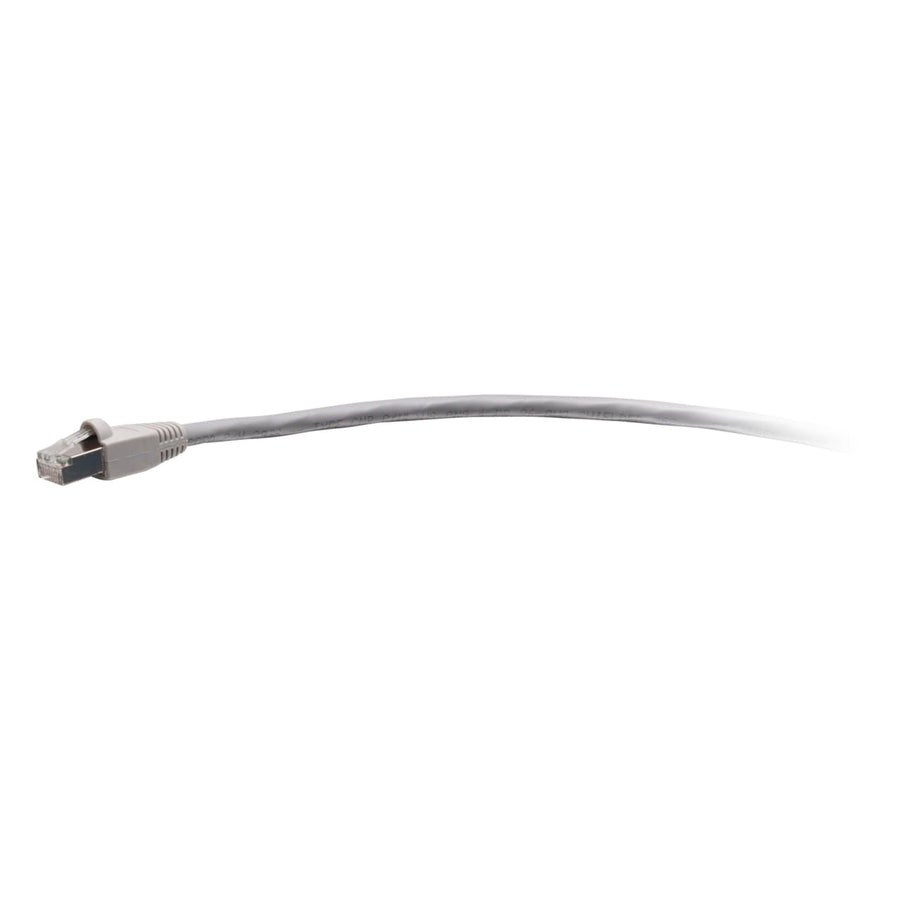

6ft (1.8m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Gray
6ft TAA-compliant shielded Cat6 patch cable with snagless RJ-45 connectors and gray PVC jacket
The C2G43713 is a 6ft (1.8 m) TAA-compliant F-Series Cat6 snagless shielded (STP) network cable in gray. This passive, shielded STP cable is constructed with high-quality, made in the USA stranded copper conductors and features a 26 AWG wire gauge. It is designed to protect high-speed networks from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. The cable is built to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting applications including 1000BASE-T (1 Gigabit Ethernet). Each cable features two RJ-45 male connectors with 50-micron gold-plated contacts to maintain signal integrity and a snagless design to protect the clips from damage during high-insertion-cycle use. This CMR rated, riser-rated cable has a PVC jacket and is rated for operating temperatures ranging from -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437130 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
