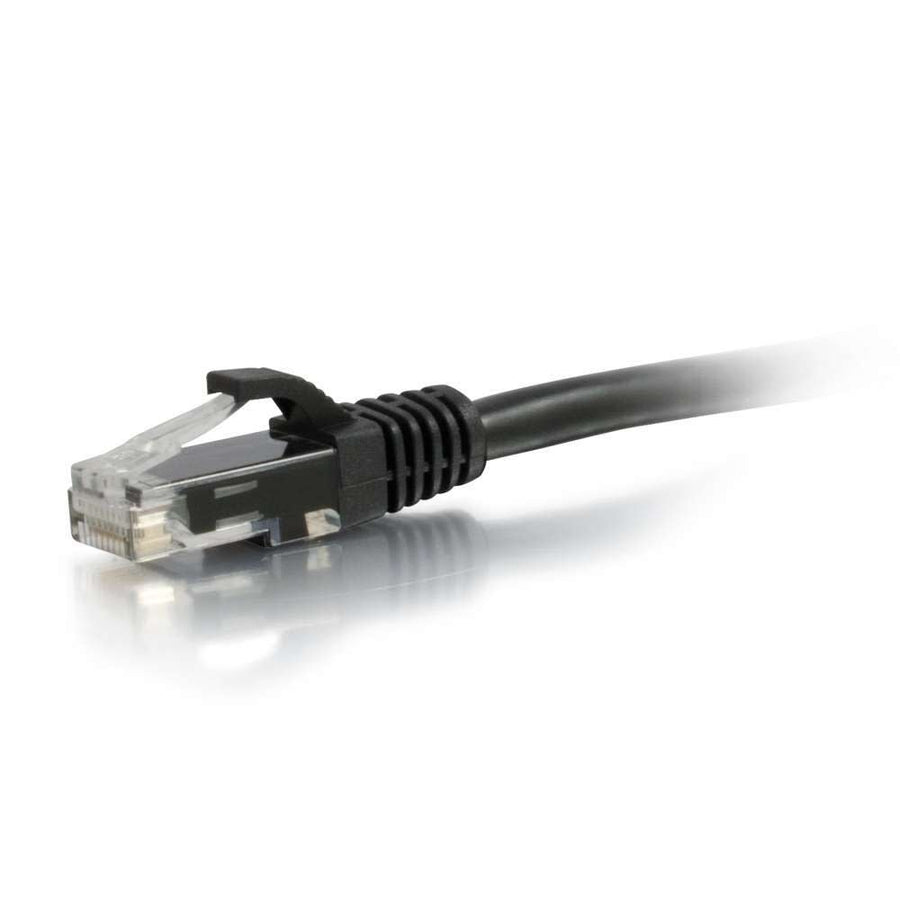

6ft (1.8m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
6ft (1.8m) Cat6a Snagless UTP Ethernet patch cable in Black, tested for ANSI/TIA 568 C.2 channel requirements
The C2G CG00728 is a 6ft (1.8m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed to support 10GBase-T ports and high-speed equipment. This 4-pair copper cable facilitates 10 Gigabit data transmission for distances up to 100 meters, providing a significant performance upgrade over standard Cat6 cabling systems which may only support 10 Gigabit Ethernet over limited distances. This black patch cable features a 0.24 in (6 mm) diameter and is constructed with 26AWG bare copper stranded conductors. For ease of installation in high-density switch applications, the connectors feature a snagless, booted PVC hood that protects the RJ-45 terminations. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring improved alien crosstalk performance. The cable utilizes HDPE insulation and a PVC jacket, with a temperature rating of 75°C. This cable is ideal for connecting network adapters, hubs, switches, routers, and patch panels.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shield Type | UTP |
| Shipping Weight | 0.19 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007289 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6ft (1.8m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG00694$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this Cat6a cable work for 10 Gigabit Ethernet?
Yes, the CG00728 is a Cat6a patch cable that supports 10GBase-T ports and enables 10 Gigabit data transmission for distances up to 100 meters.
Is this cable suitable for high-density patch panels?
The CG00728 features snagless, booted RJ-45 connectors, making it ideal for use in high-density switch and patch panel applications where cable strain is a factor.
What is the wiring scheme for the CG00728?
This patch cable follows the 568B wiring scheme and is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
What accessories are compatible with this Cat6a series?
This cable is part of a larger series; compatible components include the WP246A 24-Port Rack Mount Patch Panel and various Cat6a Keystone Inserts like the WP346ABK Black insert.
Does this cable have a lifetime warranty?
Yes, the C2G CG00728 comes with a lifetime warranty from the manufacturer.
