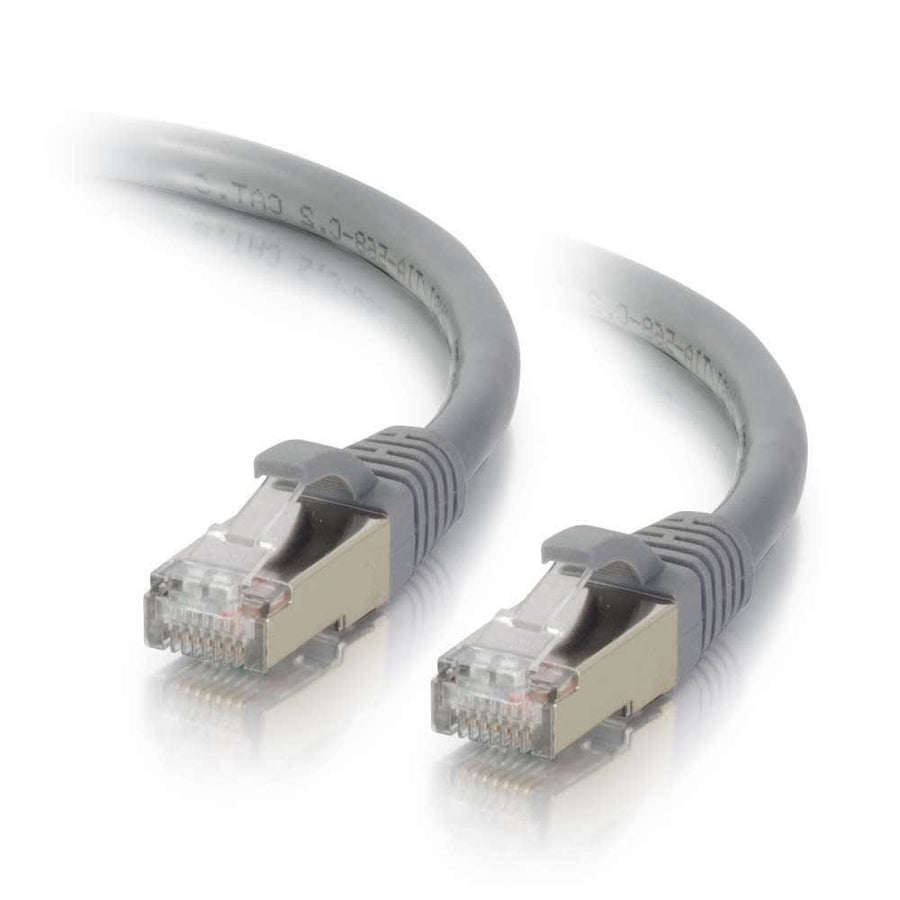

6ft (1.8m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Gray
6ft shielded Cat6a STP patch cable in gray, featuring snagless boots and 26AWG stranded copper for 10GBase-T high-speed network connections
The C2G CG00643 is a 6 ft (1.8 m) Cat6a shielded STP Ethernet patch cable designed to protect high-speed 10GBase-T network connections from electromagnetic interference and noise. This cable is engineered for use with 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. To maintain signal integrity, each individual pair is bonded together to preserve twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. This specific model features a snagless, booted connector design with PVC hoods and a PVC jacket. The cable utilizes 26AWG stranded bare copper conductors with FMPE (Foam Polyethylene) insulation. It operates within a temperature range of -4°F to 176°F (-20°C to 80°C) and uses a 568B wiring scheme. For ease of use during deployment, each individual cable includes a length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006435 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99

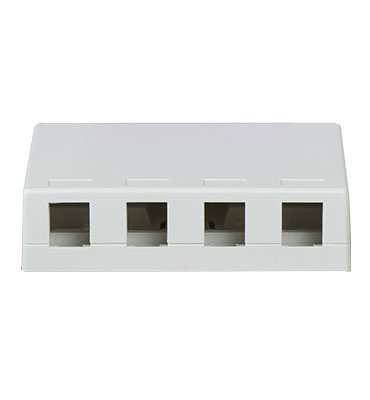

4-Port Surface Mount Box
WP3504WH$4.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANsmart TDR Cable Tester
CG39002$786.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6a cable work for 10GbE networking?
Yes, the CG00643 is designed for 10GBase-T ports and equipment, including switches, routers, and network adapters, protecting high-speed connections from interference.
What is the wiring scheme for this C2G patch cable?
This cable uses the 568B wiring scheme and features stranded SSTP construction with 26AWG bare copper conductors.
What do I need to complete my installation with this cable?
This is a standalone patch cable. For structured cabling, you may need compatible components like the CG03833 2-Port Keystone Jack Surface Mount Box or a WP48RM 48-Port Keystone Rack Mount Patch Panel.
Does this cable meet industry standards for Cat6a?
Yes, this cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring it handles bandwidth-intensive applications.
What is the operating temperature range for the CG00643?
The cable is rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C).
