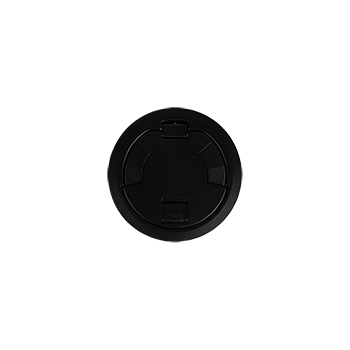

6CTC2BK Evolution™ 6 inch Poke Thru Surface Style Cover in Black
Black surface-style die-cast aluminum cover assembly for 6 inch Evolution poke-thru stem assemblies
The 6CTC2BK is a surface-style die-cast aluminum cover assembly finished in black. This Evolution series component is specifically designed for use with 6STC, 6STCP, and 6STCPAV Poke-Thru Stem Assemblies. The cover features a unique design where the lid opens a full 180 degrees. For enhanced safety, it utilizes two spring-loaded slide egress doors that protect cables, connections, and pedestrians from accidental contact or tripping hazards. This specific model is the standard version; if a tamper-resistant cover assembly is required for your installation, you must add the suffix inchTRinch to the end of the base part number.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 1.16 in (3 cm) |
| Height | 7.25 in (18.4 cm) |
| Width | 7.25 in (18.4 cm) |
| Color | Black |
| Cover Style | Surface |
| Receptacle Type | Standard |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
You'll need these with it
Questions about this part
What stem assemblies is the 6CTC2BK compatible with?
The 6CTC2BK is designed for use with 6STC, 6STCP, and 6STCPAV Poke-Thru Stem Assemblies.
How do I order a tamper-resistant version of this cover?
To obtain a tamper-resistant cover assembly, add the suffix inchTRinch to the end of the part number.
Is there a way to ensure user safety with this poke-thru cover?
Yes, this assembly includes two spring-loaded slide egress doors that open 180 degrees to protect connections and people.
Does this cover include the stem assembly?
No, this is the cover assembly only and must be used with compatible 6STC, 6STCP, or 6STCPAV stem assemblies.
What are the dimensions of the 6CTC2BK cover?
The cover measures 7.25 in x 7.25 in (18.4 cm x 18.4 cm) with a depth of 1.16 in (3 cm).
