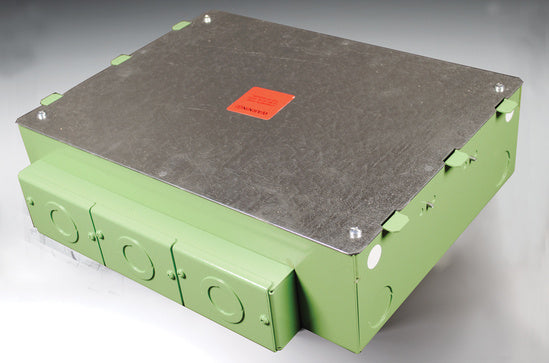

EFB6S-OG Evolution™ Six Gang On-Grade Floor Box
Six gang on-grade floor box for concrete applications, featuring an epoxy coating to eliminate the need for additional vapor barriers
The Wiremold EFB6S-OG Evolution Series Six Gang On-Grade Floor Box is engineered for installation within both on-grade and above-grade concrete floor environments. Because this unit features an integrated epoxy coating, installers can place it directly in on-grade applications without requiring the installation of a separate vapor barrier. The interior is fully finished to facilitate the easy plugging and unplugging of devices during use. This floor box is designed to work with standard-sized wall plates to accommodate six gangs of capacity. For projects requiring specific configurations, custom options are available upon request.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.13 in (41 cm) |
| Height | 4.13 in (10.5 cm) |
| Width | 13.75 in (34.9 cm) |
| Grade Type | On Grade |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Green |
Resources
Questions about this part
Can I install the EFB6S-OG directly in concrete without a vapor barrier?
Yes, the integrated epoxy coating allows for direct installation in on-grade concrete applications without the need for an extra vapor barrier.
What kind of wall plates fit the EFB6S-OG?
The EFB6S-OG is designed to work with standard-sized wall plates designed for six gangs of capacity.
Is the EFB6S-OG TAA compliant?
Yes, the EFB6S-OG is TAA compliant and carries cULus and RoHS certifications.
What is the difference between this and the white version?
The EFB6S-OG is the green color variant; the Evolution Series also offers a white finish option.
Which document should I use for a submittal?
The EFB Series Evolution Floor Boxes Cutsheet (PDF) is available to provide detailed technical information for submittals.
