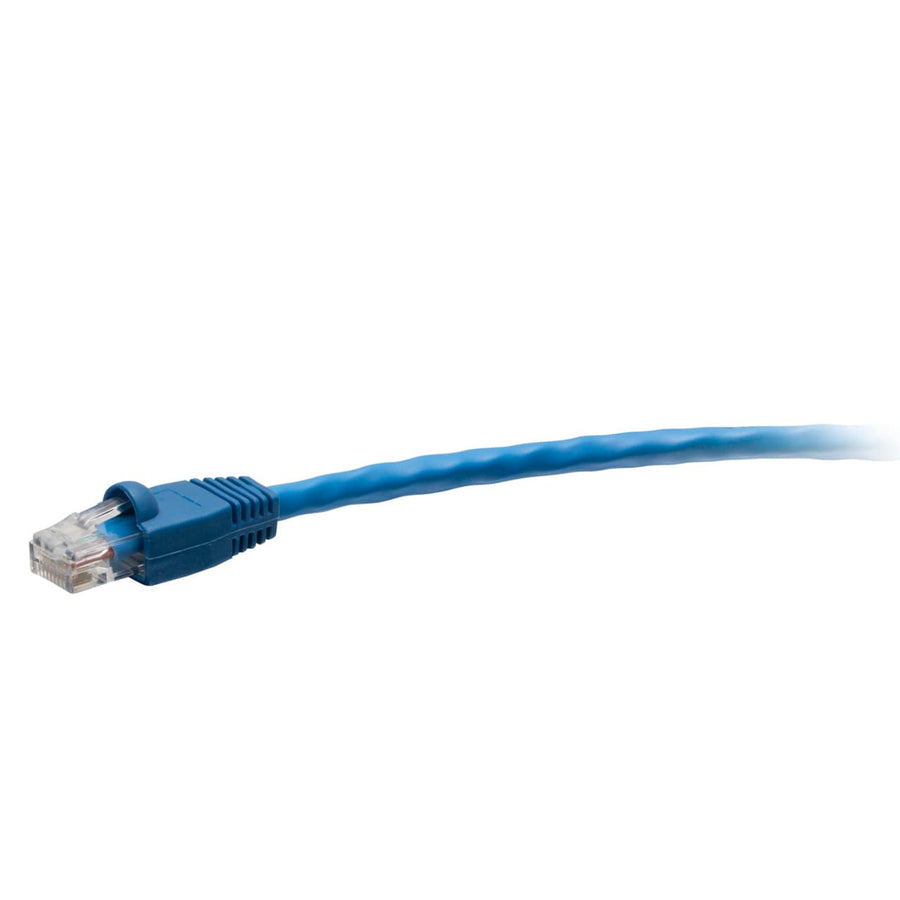

5ft (1.5m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Blue
5ft (1.5m) TAA-compliant Cat6 Unshielded UTP network cable in Blue, featuring snagless RJ45 connectors and CMR rating
The C2G43448 is a 5ft (1.5m) TAA-compliant Cat6 Unshielded UTP network cable designed for mission-critical environments. This Blue cable is approved for use in United States government projects and facilities, meeting stringent TAA compliance requirements. Built with high-quality, made in the USA copper cabling, it provides a maximum frequency of 600 MHz, offering enhanced performance for applications requiring 1000BASE-T (1 Gigabit Ethernet) support. The snagless RJ45 connector design includes a molded boot that protects the clips from being snapped off, making it an excellent choice for installations involving high insertion cycles. Each connector features 50-micron gold-plated contacts to maintain signal integrity. This CMR rated, riser-rated cable uses 24 AWG stranded copper conductors and follows the T568B wiring scheme. It is suitable for connecting network adapters, hubs, switches, routers, and servers within a variety of professional AV and IT infrastructures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434481 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43448 TAA compliant?
Yes, this cable is TAA compliant, making it approved for use in United States government projects and facilities.
What is the maximum frequency and speed of this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency.
What RJ45 connector type does this cable use?
It features two RJ45 Male connectors with a snagless, molded boot design to prevent clip breakage.
Does this cable have a warranty?
Yes, this C2G network cable is covered by a Lifetime warranty.
Can I use this cable in a riser application?
Yes, this is a CMR rated cable specifically designed for riser jacket applications.
